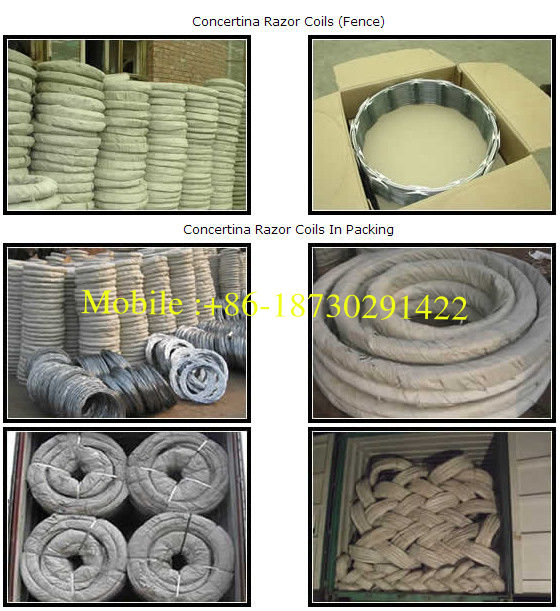

Concertina Razor Coils

Product Details:

Place of Origin:	Hebei,china
Brand Name:	XKh
Certification:	iso,ce
Model Number:	Razor barbed wire

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Price based on quantity
Packaging Details:	waterproof paper inside , woven bag out side ,pallet or cartn also available
Delivery Time:	7 days
Payment Terms:	L/C,TT
Supply Ability:	4 cotainers /week

Contact Now

Detailed Product Description

Material:	Hot Dipped Galvanized Iron /steel Wire With Steel Sheet	Core Wire Thickness:	2mm-2.5mm

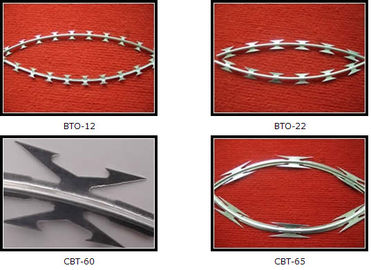

Blade Thickness:	0.35mm-0.5mm	Type:	BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
Coil Diameter:	300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm	Weight:	3 Kg - 15 Kg /coil
Surface Treatment:	Glavanized , PVC Coating ,Epoxy	Machine:	HIgh Speed Punching Machine

Concertina Razor coils is supplied typically in single coils or crossed spiral coils. We can produce razor type barbed wire in concertina coils or straight lines. Blade types and specifications vary according to the customers’ requirements.

Concertina Razor coils is made by stainless steel sheets and galvanized high tensile claps. It has a beautiful crossing outlook and it is suitable for uses after extending, making an ideal security fencing with great anti-climb and anti-cutting property. Standard materials for razor type barbed wire are either galvanized or stainless steel.

Main Application: Concertina Razor coils is used as security fencing and isolation for gardens, residences, military sites and other sites requiring high security.

Concertina Razor Coils

Barbed Tape Wire Specification
Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross typ
