Welded Razor Barbed Wire Mesh Fence With Blade Type BTO-22 For Security Fencing

Product Details:

Place of Origin:	Hebei,china
Brand Name:	XKh
Certification:	iso,ce
Model Number:	Razor barbed wire

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Delivery Time:	7 days
Payment Terms:	T/T, L/C
Supply Ability:	50tons/day

Contact Now

Detailed Product Description

Item:	High Security Welded Razor Wire Mesh With Blade Type BTO-22	Material::	Hot Dipped /electric Galvanized Iron Wire Or Stainless Steel Wire As Core Wire ,hot Dipped Galvanized Sheet Or Stainless Steel Sheet As Blade
Blade Type::	Bto 10 , 15,18, 22 , 28,30 And CBT 60 65	Hole Shape:r:	Square ,rectangle ,diamond ,etc
Hole Size::	75x150,150x300,0x150,100x200mm Etc	Core Wire Diameter::	1.8mm-2.75mm (2.5mm)
Blade Thickness::	0.3-0.5mm (0.45mm)	Application::	Used As Security Fencing And Isolation For Gardens, Residences, Military Sites,border Protection,prison,airport And Other Sites Requiring High Security.
High Light::	Razor Barbed Wire Mesh Fence, Razor Barbed Wire BTO-22, Razor Wire Bto 22

High security welded razor wire mesh with blade type BTO-22

Descriptions :

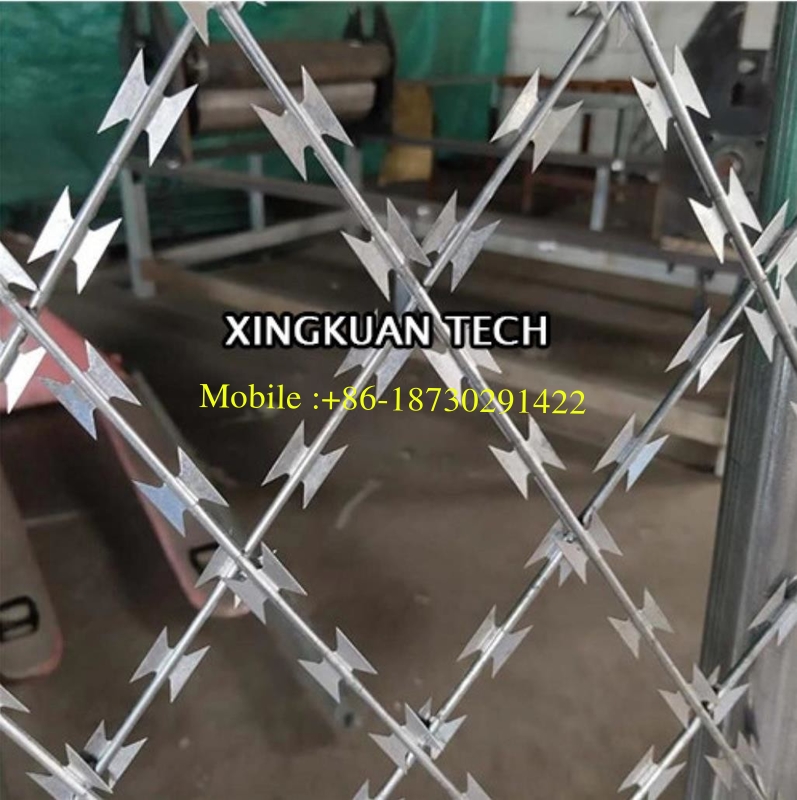

Welded razor wire mesh is fabricated by welding straight razor wire in square or diamond profiles. This security fence is designed to prohibit entry and climbing for its sharp blades.If anywhere need high security protection,welded razor wire mesh is your best solution.
We can do three type:

straight razor wire in square mesh;
Vertical are razor wire,horzontal are steel wire in square mesh;
traight razor wire in diamond mesh;
Others you can customize according your requirements

Quick details :

Hole shape :

Material :	Q195Low-Carbon steel rod +45# steel sheet
Specifications	Standard Panel Height	1.2m, 1.8m, 2.1m and 2.4m etc
	Standard Panel Length	6meters or customerized length etc
	Aperture Size	Diamond type	high density	2.95"x 5.90"(75mmx150mm)
			low density	5.90"x 11.80"(150mmx300mm)
		Rectangular type	high density	50mmx150mm,75x150mm
			low density	100mmx150/200mm,150mmx300mm
		Sqaure type	50,100,150,200mm etc
	Blade length	0.87"(22mm)
	Blade thickness	0.02"(0.5mm)
	Blade width	0.59"(15mm)
	Blade spacing	1.34"(34mm)
Sample policy	Small samples can be provided with courier charge collect
Packing	①Plastic flm inside, outside weaving bag.②Plastic film inside, outside he sion bag.
Surface treatment	①Electro Galvanized+PVC coated, ②Hot dipped galvanized, ③Electro Galvanized+Powder Spraying
Application	①Schools, ②Recreation Area, ③Commercial Site, ④Industrial Estates, ⑤Sports Grounds, ⑥Parks
Note	All size (Hole opening , width & Length , Razor Blade type & Surface) can be customerized

Item	Thickness (mm)	Wire Dia. (mm)	Barb Length (mm)	Barb Width (mm)	Barb spacing (mm)
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5±0.1	28±1	15±1	45±1
BTO-30	0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

Five reasons of choosing our welded razor mesh

Virtually impossible to climb over or cut through
Visual and psychological deterrent
Presents a formidable physical barrier
Neat unobtrusive design
Extremely rigid, ideal for fence-mounted sensors

Applications :

It is used as security fencing and isolation for gardens, residences, military sites,border protection,prison,airport
and other sites requiring high security.

Welded Razor Barbed Wire Mesh Fence With Blade Type BTO-22 For Security Fencing 8

Key Parameters :

1.Surface treatment
2.Hole Size
2.Blade type :
3.Width :
4.Length :
5. Quantity :

Welded Razor Barbed Wire Mesh Fence With Blade Type BTO-22 For Security Fencing 9

Welded Razor Barbed Wire Mesh Fence With Blade Type BTO-22 For Security Fencing 10
