Ribbon Razor Wire Flat Wrap Coils for secure safe Non Flanged Wire Reinforced

Razor Ribbon Flat Wrap coils for secure safe (Non-Flanged, Wire Reinforced)

Descriptions :

Flat wrap coils add additional security to traditional perimeter fence applications. The Flat Razor Wrap coils provide a neat but effective barrier when used together with mesh fences. Flat Razor Wrap coil installation is particularly simple when it is fitted by overlapping the fence mesh. Economical but effective barrier.

History :

Barbed tape was first manufactured by Germany during World War I, as an expedient measure during a shortage of wire. Since it was simply punched out of a rolled ribbon of steel tape, it could be manufactured much more quickly. This early barbed tape had triangular barbs and no reinforcing wire; consequently, it was more difficult to cut with ordinary wire cutters, easier to cut with shears, and was generally of lower tensile strength.from the early 1970s, unreinforced barbed tape was commonly used in perimeter barriers of US prisons. In the early 1980s, several manufacturers began offering barbed tape with an embedded reinforcing wire and the product has been the subject to a patent dispute. Early brand names of reinforced barbed tape included "Man Barrier" and "Razor Ribbon". The latter probably lent its name to the modern slang term.

Quick details :

• Types of Razor wires: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-65, CBT-60
• Material of Razor Wire:
  • Normal hot dipped galvanized razor wire (40–60 g/m2)
  • Heavily zinc coated razor wire (70–270 g/m2)
  • Stainless steel 304 or 316 grades razor wire
• Clips of concertina wire: fixed by clips between coils to coils into panel
• Coil Diameter of concertina wire: 300/450/500/600/700/800/950/1000 mm
• Coil clipped space : 10-35cm (as per request , 15-20cm will be in big density and high security )
• Core wire thickness :1.8-2.75mm(2.5mm is the standard )
• Blade thickness : 0.3-0.5mm (0.45mm is the standard )
• structure shape : in roll (15m is the standard )or in sheet (2m is better considering container size )

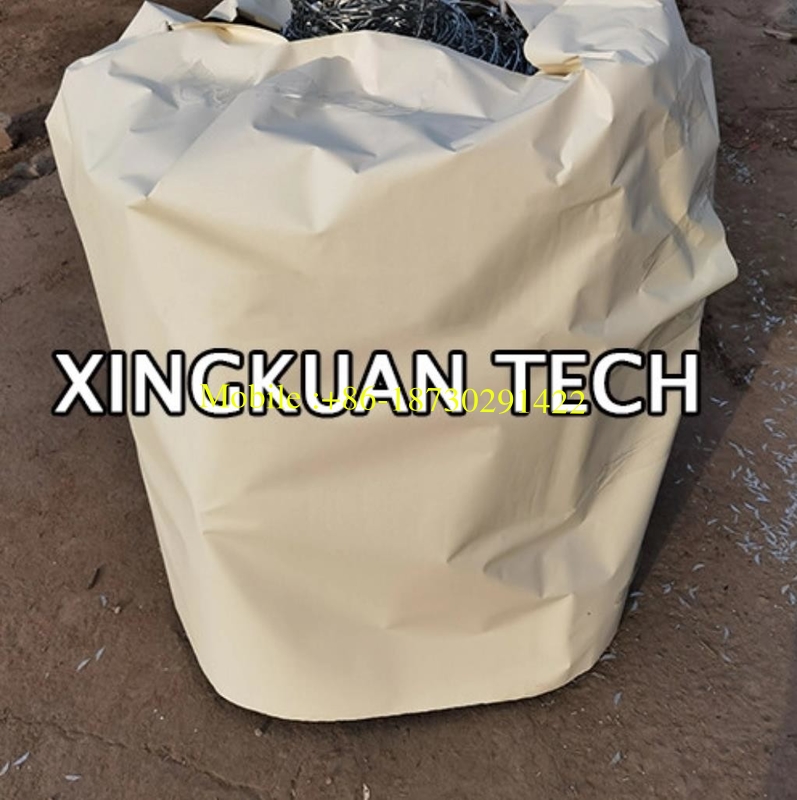

• Package of razor wires
  • Waterproof paper inside, woven bag outside, then 50 rolls/bundle or as required
  • Nude package, then packing by wooden pallet or in bulk

Item	Blade Style	Thickness (mm)	Wire Dia. (mm)	Barb Length (mm)	Barb Width (mm)	Barb spacing (mm)
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5±0.1	28±1	15±1	45±1
BTO-30		0.5±0.05	2.5±0.1	30±1	18±1	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

Six reasons of choosing our flat razor wire:

• No overhang structure will not hurt innocent bystanders.
• Neat appearance without overhang.
• Optimum choice for limited space where also needs high security.
• Available as a free standing fence.
• Standard sizes are provided (shown in the table) and custom sizes on special order.
• Easy installation.

Applications :

• Installed against the existing smooth wire mesh fence
• Fitted to the welded mesh fence
• Fitted by overlapping the fence mesh
• Installed to the brick wall directly

Notice :

1. Flat wrap razor wire normally the coil diameter is 450mm ,500mm, 900mm
2. Roll length : standard is 15m or 16m , for the sheet is 2mtrs
3. Clipped space , we will suggest you when you have special request .
4. Packing : roll compacted - normally 5 rolls as one bundle .1 layer packing is thick waterproof paper , 2 layers -add woven bag . 3 layers need to add pallet .
5. Payment term : L/C,T/T or any 3rd platform's insurance order way .
