Place of Origin: | Hebei,china |
Brand Name: | XKh |
Certification: | iso,ce |
Model Number: | Razor barbed wire |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Price based on quantity |
Packaging Details: | waterproof paper inside , woven bag out side ,pallet or cartn also available |
Delivery Time: | 7 days |
Payment Terms: | L/C,TT |
Supply Ability: | 4 cotainers /week |
Material: | Hot Dipped Galvanized Iron /steel Wire With Steel Sheet | Core Wire Thickness: | 2mm-2.5mm |
---|---|---|---|
Blade Thickness: | 0.35mm-0.5mm | Type: | BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60 |
Coil Diameter: | 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm | Weight: | 3 Kg - 15 Kg /coil |
Surface Treatment: | Glavanized , PVC Coating ,Epoxy | Machine: | HIgh Speed Punching Machine |
Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |

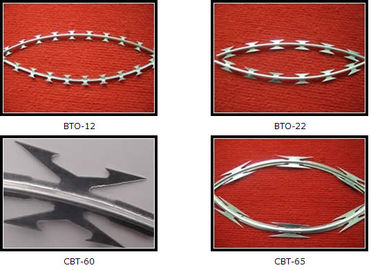

BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Barbed Tape Wire Specification | ||||
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO).
Note: Standard products styles are shown in the tables above, special specifications are available on request.
Material: hot galvanized steel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304.
