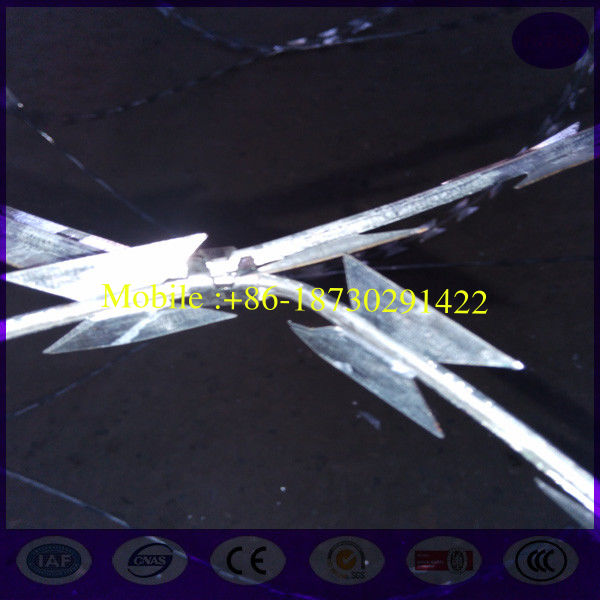

800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
    • 800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: Razor barbed wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: waterproof paper inside , woven bag out side ,pallet or cartn also available
    Delivery Time: 7 days
    Payment Terms: L/C,TT
    Supply Ability: 4 cotainers /week
    Contact Now
    Detailed Product Description
    Material: Hot Dipped Galvanized Iron /steel Wire With Steel Sheet Core Wire Thickness: 2mm-2.5mm
    Blade Thickness: 0.35mm-0.5mm Type: BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
    Coil Diameter: 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm Weight: 3 Kg - 15 Kg /coil
    Surface Treatment: Glavanized , PVC Coating ,Epoxy Machine: HIgh Speed Punching Machine

    All Materials: Concertina Razor Barbed Wire is made of Hot dipped galvanized, electro galvanized, stainless steel, PVC coated etc.


    Concertina Razor Barbed Wire Coil can be supplied in straight line razor wire,  single coil razor wire or crossed concertina razor coils


    Stainless Steel Concertina razor barbed Tape, SUS razor barbed Wire , mainly used for safety scopes.



    Specifications of SS Razor barb Wire:

    Reference number

    Thickness

    Wire Dia

    Barb length

    Barb width

    Barb spacing

    BTO-10

    0.5±0.05

    2.5±0.1

    10±1

    13±1

    26±1

    BTO-12

    0.5±0.05

    2.5±0.1

    12±1

    15±1

    26±1

    BTO-18

    0.5±0.05

    2.5±0.1

    18±1

    15±1

    33±1

    BTO-22

    0.5±0.05

    2.5±0.1

    22±1

    15±1

    34±1

    BTO-28

    0.5±0.05

    2.5

    28

    15

    45±1

    BTO-30

    0.5±0.05

    2.5

    30

    18

    45±1

    CBT-60

    0.5±0.05

    2.5±0.1

    60±2

    32±1

    100±2

    CBT-65

    0.5±0.05

    2.5±0.1

    65±2

    21±1

    100±2





    Specification of concertina razor barbed Wire Coil

    Outside diameter

    No.of loops

    Standard length per coil

    Type

    Notes

    450mm

    33

    7-8M

    CBT-60.65

    Single coil

    500mm

    56

    12-13m

    CBT-60.65

    Single coil

    700mm

    56

    13-14m

    CBT-60.65

    Single coil

    960mm

    56

    14-15m

    CBT-60.65

    Single coil

    450mm

    56

    8-9m(3 clips)

    CBT-10.10.18.22.28.30

    Cross type

    500mm

    56

    9-10m(3 clips)

    CBT-10.10.18.22.28.30

    Cross type

    600mm

    56

    10-11m(3 clips)

    CBT-10.10.18.22.28.30

    Cross type

    600mm

    56

    8-10m(5clips)

    CBT-10.10.18.22.28.30

    Cross type

    700mm

    56

    10-12m(5 clips)

    CBT-10.10.18.22.28.30

    Cross type

    800mm

    56

    11-13m(5 clips)

    CBT-10.10.18.22.28.30

    Cross type

    900mm

    56

    12-14m(5 clips)

    CBT-10.10.18.22.28.30

    Cross type

    960mm

    56

    13-15m(5clips)

    CBT-10.10.18.22.28.30

    Cross type

    980mm

    56

    14-16m(5 clips)

    CBT-10.10.18.22.28.30

    Cross type



    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire

    800mm Diameter 5 Clips BTO-30 stainless steel Single type Concertina Razor Barbed Wire
