CBT65 5kgs /coil 1 roll per carton razor barbed wire

CBT65 5kgs /coil 1 roll per carton razor barbed wire

    • CBT65 5kgs /coil 1 roll per carton razor barbed wire
    • CBT65 5kgs /coil 1 roll per carton razor barbed wire
    • CBT65 5kgs /coil 1 roll per carton razor barbed wire
    • CBT65 5kgs /coil 1 roll per carton razor barbed wire
    • CBT65 5kgs /coil 1 roll per carton razor barbed wire
  • CBT65 5kgs /coil 1 roll per carton razor barbed wire

    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: Razor barbed wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: waterproof paper inside , woven bag out side ,pallet or cartn also available
    Delivery Time: 7 days
    Payment Terms: L/C,TT
    Supply Ability: 4 cotainers /week
    Contact Now
    Detailed Product Description
    Material: Hot Dipped Galvanized Iron /steel Wire With Steel Sheet Core Wire Thickness: 2mm-2.5mm
    Blade Thickness: 0.35mm-0.5mm Type: BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
    Coil Diameter: 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm Weight: 3 Kg - 15 Kg /coil
    Surface Treatment: Glavanized , PVC Coating ,Epoxy Machine: HIgh Speed Punching Machine

    CBT65 5kgs /coil 1 roll per carton razor barbed wire



    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    CBT-65 - Material. stainless steel 304 /316  or  HD Galvanized Zinc as below photo
    Thickness: 0.60 mm +/- 0.05 mm
    Wire diam: 2.50 mm +/- 0.05 mm
    Bars length: 65 mm +/- 1 mm
    Bars spacing: 100 mm +/- 2 mm
    450 mm diameter and 35 rings
    Straight length: 46.5 mt per roll after pull open
    Standard covered length: 10 mt
    Inner packing: in plastic film
    Outer packing: in weaving brag strip.



    1. Introduction of China Sharp blade CBT-65 Razor Wire with low price

    Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.



    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    2. Specification of  China Sharp blade CBT-65 Razor Wire with low price

    Material:

    hot dipped (electro) galvanized wire and stainless steel wire as core wire

    hot dipped (electro) galvanized sheet and stainless steel sheet as blade

    Surface Treatment : galvanized or PVC coated

    Core wire diameter:  usually 2.5mm, can be customized

    Razor thickness: 0.3-0.6mm

    Barb length:  11-67mm

    Barb width:  14-23mm

    Barb spacing:  25--102mm

    Common Types:  BTO-10,  BTO-20, BTO-22, BTO-28, CBT-65 etc.



    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    Razor Barbed Tape Wire Specification

    Outside Diameter

    No. of Loops

    Standard Length per Coil

    Type

    Notes

    450mm

    33

    7-8M

    CBT-60.65

    Single coil

    500mm

    56

    12-13M

    CBT-60.65

    Single coil

    700mm

    56

    13-14M

    CBT-60.65

    Single coil

    960mm

    56

    14-15M

    CBT-60.65

    Single coil

    450mm

    56

    8-9M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    500mm

    56

    9-10M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    600mm

    56

    10-11M (3 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    600mm

    56

    8-10M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    700mm

    56

    10-12M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    800mm

    56

    11-13M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    900mm

    56

    12-14M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    960mm

    56

    13-15M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type

    980mm

    56

    14-16M (5 CLIPS)

    BTO-10.12.18.22.28.30

    Cross type



    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    Packing of China Sharp blade CBT-65 Razor Wire with low price:

    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    CBT65 5kgs /coil 1 roll per carton razor barbed wire





    CBT65 5kgs /coil 1 roll per carton razor barbed wire

    Application of CBT65 5kgs /coil 1 roll per carton razor barbed wire

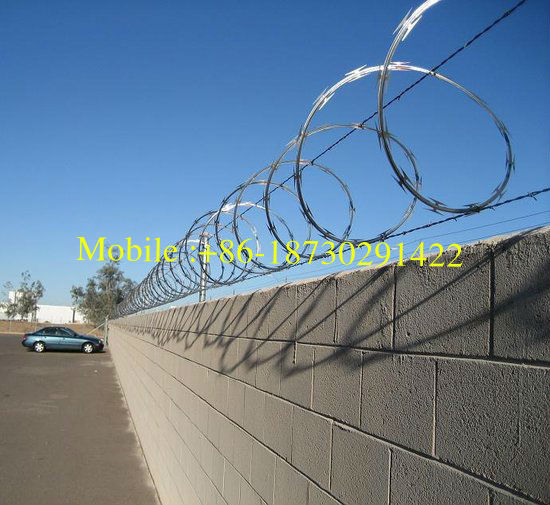

      razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.





    CBT65 5kgs /coil 1 roll per carton razor barbed wire
