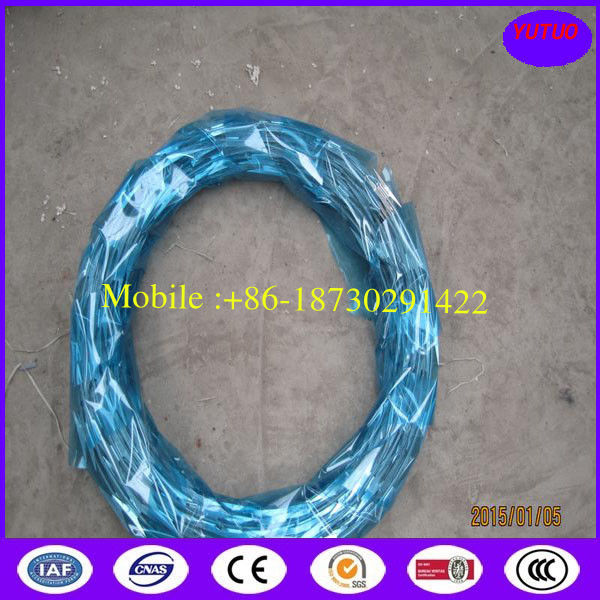

military protection wall cbt-65 concertina razor wire
CBT-65 - Material. stainless steel 304 /316 or HD Galvanized Zinc as below photo
Thickness: 0.60 mm +/- 0.05 mm
Wire diam: 2.50 mm +/- 0.05 mm
Bars length: 65 mm +/- 1 mm
Bars spacing: 100 mm +/- 2 mm
450 mm diameter and 35 rings
Straight length: 46.5 mt per roll after pull open
Standard covered length: 10 mt
Inner packing: in plastic film
Outer packing: in weaving brag strip.
1. Introduction of China Sharp blade CBT-65 Razor Wire with low price
Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
2. Specification of China Sharp blade CBT-65 Razor Wire with low price
Material:
hot dipped (electro) galvanized wire and stainless steel wire as core wire
hot dipped (electro) galvanized sheet and stainless steel sheet as blade
Surface Treatment : galvanized or PVC coated
Core wire diameter: usually 2.5mm, can be customized
Razor thickness: 0.3-0.6mm
Barb length: 11-67mm
Barb width: 14-23mm
Barb spacing: 25--102mm
Common Types: BTO-10, BTO-20, BTO-22, BTO-28, CBT-65 etc.
|
Razor Barbed Tape Wire Specification
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
Packing of China Sharp blade CBT-65 Razor Wire with low price:
Application of military protection wall cbt-65 concertina razor wire
razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.
