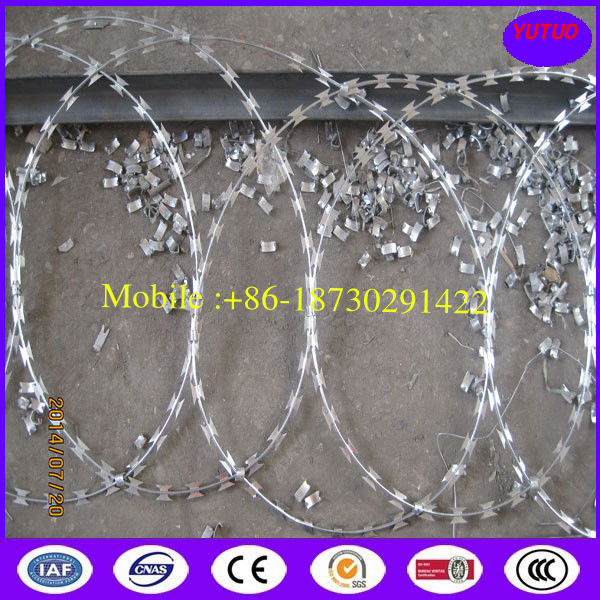

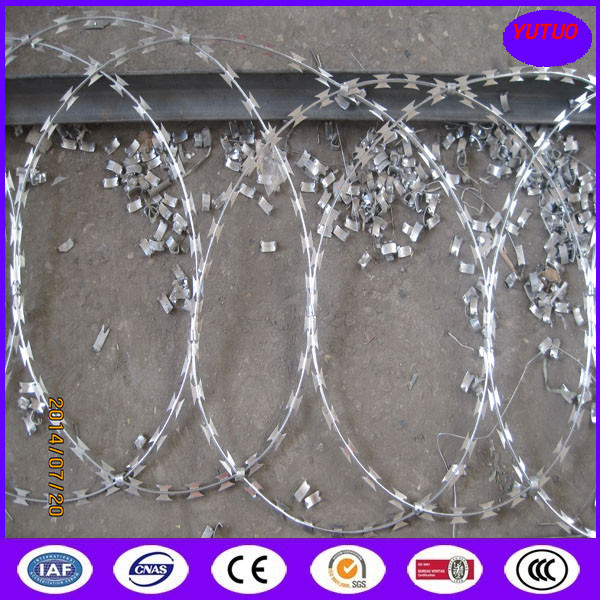

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

Product Details:

Place of Origin:	China
Brand Name:	xk highui
Certification:	ISO9001:2000,CE,SGS,COC
Model Number:	razor wire /barbed wire made in XKH

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Price based on quantity
Packaging Details:	waterproof paper inside , woven bag out side ,pallet or cartn also available
Delivery Time:	7 days after confirm order
Payment Terms:	L/C,TT
Supply Ability:	4 cotainers /week

Contact Now

Detailed Product Description

Material:	Hot Dipped Galvanized Iron /steel Wire With Steel Sheet	Core Wire Thickness:	2mm-2.5mm
Blade Thickness:	0.35mm-0.5mm	Type:	BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
Coil Diameter:	300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm	Weight:	3 Kg - 15 Kg /coil
Surface Treatment:	Glavanized , PVC Coating ,Epoxy	Machine:	HIgh Speed Punching Machine

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire

1) The Description of China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

It is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.

Material: High carbon steel, Stainless steel

Usage: mainly used by many countries in military field,prisons,detention houses,government buildings and other mational security facilities.

2) Specifications of China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

Razor flat fence
Reference Number	Thickness(mm)	Wire Dia(mm)	Barb Length(mm)	Barb Width(mm)	Barb Spacing(mm)	Diameter(mm)	No. Loops
BTO-12	0.4±0.05	2.5±0.1	12±1	15±1	26±1	300mm	33
BTO-15	0.4±0.05	2.5±0.1	15±1	15±1	33±1	450mm	56
BTO-22	0.4±0.05	2.5±0.1	22±1	15±1	34±1	600mm	56
BTO-30	0.4±0.05	2.5±0.1	30±1	18±1	45±1	700mm	56
CBT-25	0.4±0.05	2.5±0.1	25±1	16±1	40±1	800mm	56
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2	900mm	56
CBT-65	0.6± 0.05	2.5±0.1	65±2	21±1	100±2	980mm	56

Height	Length	Spiral Spacing	Coils per Bundle
900mm	15m	130mm	15
700mm	15m	130mm	15
500mm	15m	130mm	15

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

usage :

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

ALISA - WHATS APP : +86-18730291422 E-mail : alisawiremesh@hotmail.com Skype : alisazhouwiremesh

China High security Hot Dipped Galvanized 600mm Flat Wrap Razor Wire with heavy clips

Contact Details

Xing Kuan Highui Wire Mesh Products Co.,ltd

Contact Person: Mr. Jack Yang

Tel: 86-157-33107322

Fax: 86-311-68058665
