Home ProductsRazor Barbed Wire

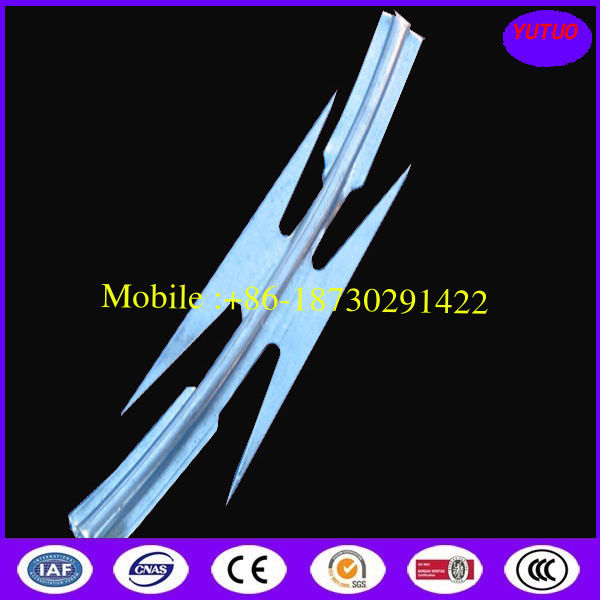

Cbt-60 Razor Wire Concertina, Harpoon Profile Razor, Fish Hook Blade Razor Ribbon

Cbt-60 Razor Wire Concertina, Harpoon Profile Razor, Fish Hook Blade Razor Ribbon

Cbt-60 Razor Wire Concertina, Harpoon Profile Razor, Fish Hook Blade Razor Ribbon

Product Details:

Place of Origin: Hebei,china
Brand Name: XKh
Certification: iso,ce
Model Number: Razor barbed wire

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Price based on quantity
Packaging Details: waterproof paper inside , woven bag out side ,pallet or cartn also available
Delivery Time: 7 days
Payment Terms: L/C,TT
Supply Ability: 4 cotainers /week
Contact Now
Detailed Product Description
Material: Hot Dipped Galvanized Iron /steel Wire With Steel Sheet Core Wire Thickness: 2mm-2.5mm
Blade Thickness: 0.35mm-0.5mm Type: BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
Coil Diameter: 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm Weight: 3 Kg - 15 Kg /coil
Surface Treatment: Glavanized , PVC Coating ,Epoxy Machine: HIgh Speed Punching Machine

Razor Wire Concertina (HARPOON profile)

Concertina

12", 14", 15", 16", 18", 24", 30"

Birmingham Barbed Tape Ltd. Produces the above (depending on the size of the coil) in options of 3, 5, 7 or 9 clips.

Options of 31, 33, 51 and 56 spirals are available or alternatively, any spiral number the client requires to create a unique product to the buyer's need.

Again, these sizes and spiral options are available in either stainless steel strip over stainless steel core wire (see steel specification attached). Stainless steel strip over galvanised core wire of the least cost option of galvanised strip over galvanised core wire.

Double Concertina

30"/24"
Standard 31 loop reinforced stainless steel of galvanised steel cold clinched around galvanised steel or stainless steel reinforcing wire (see specification attached).

Each cluster of barbs to be four needle sharp barbs on 4" centres, each barb to measure 2, 4" in length.

Adjacent coil loops shall be alternatively clipped together and attached at 3 points of approximate equal spacing around the coil diameter. Length 20' per roll.
coil diameter 450mm
(18 in)		 730mm
(28 in)		 730mm
(28 in)		 980mm
(36 in)		 980 mm
(36 in)		 1250mm
(50 in)
recommended stretch length 10 m 10 - 12 m 15 -20 m 10-15 m 8 m 8 m
coil diameter when stretched 400mm 620mm 600mm 820mm 850mm 1150mm
Spiral turns per coil 54/55 54/55 54/55 54/55 54/55 54/55
clips per spiral 3 5 3 5 7 9
