Razor wire
Razor barbed wire
Material: Galvanized, stainless steel
No.: BTO-12, BTO-18, BTO-22
Diameter: 450, 500, 600-900mm
No. Of loops: 33, 56
Feature: Aesthetic appearance and protective excellent performance, performance, easy to install, high safety factor, many tricks, and a good deterrent effect, corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Style:

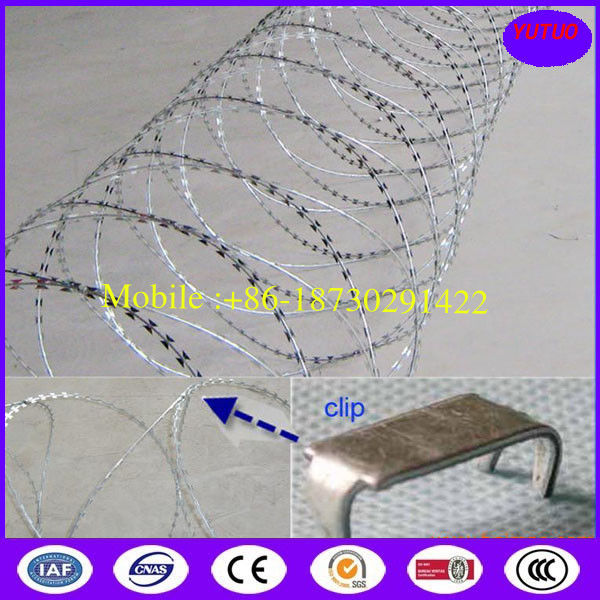

1. Crossed Razor Barbed Wire
Two pieces of stainless razor wire or zinc-coated razor wire were bounded together by clips to make it more strength. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
2. Straight Razor Barbed Wire
There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly. It can not only save expenditure but also reach the result of frightening and stopping.
3. Razor Wire Mesh Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security with practicality blade and the feature looks very beautiful. It can be used for guard net of fence, doors and windows and also can be used in military. The specification can be designed as the customers' need.
Usage: Barbed Wire mainly serves in protecting of grass boundary, railway, highway and also widely used in military, jail and other national Security Organizations, and industry, agriculture, animal husbandry, dwelling house, also used as fence for cottage as society fence and other private buildings.
| Razor Blade Specification |
| Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb
Length |
Barb
Width |
Barb
spacing |
| BTO-10 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
13±1 |
26±1 |
| BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
| BTO-18 |
|
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
|
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
| BTO-28 |
|
0.5±0.05 |
2.5±0.1 |
28±1 |
15±1 |
34±1 |
| BTO-30 |
|
0.5±0.05 |
2.5±0.1 |
30±1 |
18±1 |
34±1 |
| CBT-60 |
|
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
96±2 |
| CBT-65 |
|
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
