Flat Warp Razor Barbed Wire
Flat warp razor barbed wire is a new type of razor barbed wire. Metal Tec press the single loop razor barbed wire into flat, or press two loops into flat then expand them across. We usually use it together with beenline razor barbed wire to build a defencing wall, or use it alone as a fence.
It is normally used in community, storehouse, mine, prison, key sites of National Defence, etc..
The picture of Flat warp razor barbed wire:

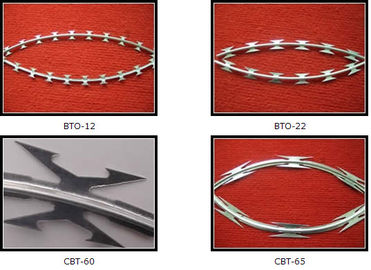

Blade style
| Reference Number |
BTO-12 |
BTO-15 |
BTO-22 |
BTO-25 |
BTO-30 |
CBT-60 |
CBT-65 |
| Include Razor type |
|
|
|
|
|
|
|
| Model |
Thickness |
Wire Dia |
Length |
Width |
spacing |
| BTO-10 |
0.5mm |
2.5mm |
12mm |
13mm |
26mm |
| BTO-12 |
0.5mm |
2.5mm |
12mm |
15mm |
26mm |
| BTO-18 |
0.5mm |
2.5mm |
18mm |
15mm |
33mm |
| BTO-22 |
0.5mm |
2.5mm |
22mm |
15mm |
34mm |
| BTO-28 |
0.5mm |
2.5mm |
28mm |
15mm |
34mm |
| BTO-30 |
0.5mm |
2.5mm |
30mm |
18mm |
34mm |
| CBT-60 |
0.6mm |
2.5mm |
60mm |
32mm |
96mm |
| CBT-65 |
0.6mm |
2.5mm |
65mm |
21mm |
100mm |
The technical data of Flat warp razor bared wire:
Flat warp razor barbed wire
| width |
loops/roll |
length/roll |
Blade type |
| 450mm |
126 |
16M |
BTO-10,12,18,22,28,30 |
| 600mm |
95 |
16M |
BTO-10,12,18,22,28,30 |
| 900mm |
63 |
16M |
BTO-10,12,18,22,28,30 |
| 1100mm |
51 |
16M |
BTO-10,12,18,22,28,30 |
Flat razor barbed wire specifications:
The Outside Diameter: 450mm / 600mm / 900mm Flat razor wire fence is also made of razor barbed wire, but the difference from welded razor wire fence is Flat razor wire fence connected razor wire by clips but the welded razor barbed through welding.

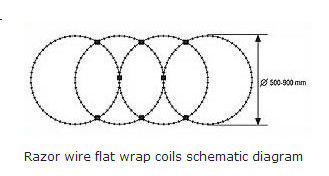

Flat Wrap coils can be used in the following forms:
Installed against the existing smooth wire mesh fence;
Fitted to the welded mesh fence;
Fitted by overlapping the fence mesh;
Installed to the brick wall directly.
Flat warp razor barbed wire Packing:

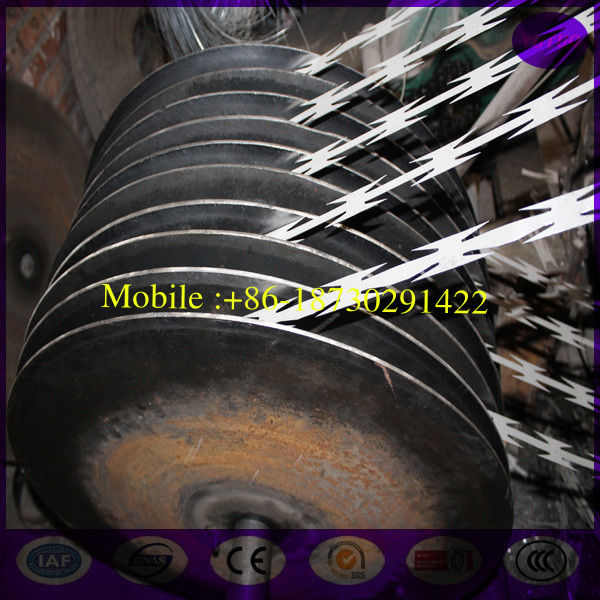

Razor barbed wire Workshop:
