Hdg Hot Dipped Galvanized Flat panel Coiled Razor Wire For Security Barrier
Descriptions :
Flat razor mesh security barrier is more economical than concertina razor security barrier, because its production requires significantly less concertina wire, so in those cases where no special requirements for security of enclosing an object, the flat razor barrier security can be a good choice.
Obstruction of razor flat wrap coils barrier properties is very high, although somewhat lower than that of concertina razor coils barrier. Razor wire flat wrap coils is able to maintain their properties after a barrage and even a few snacks in different places. An important feature of the flat concertina wire is that, as a flat structure, it does not exceed the dimensions of the fence, has a less aggressive appearance, which is more preferable to create barriers in public places.
Quick details :
- Material :Hot dipped /electric galvanized iron wire or stainless steel wire as core wire ,hot dipped galvanized sheet or stainless steel sheet as blade
- Blade type : BTO 10 ,22,25,28,30 & CBT 60 or 65(The blade normally we choose BTO-10,BTO-22 500mm coil diameter is very popular for top installation .)
- Coil diameter : 300mm,450mm,500mm,600mm,700mm,730mm,850mm,900mm,1050mm,1200mm (300-1200mm)
- Coil clipped space : 10-35cm (as per request , 15-20cm will be in big density and high security )
- Core wire thickness :1.8-2.75mm(2.5mm is the standard )
- Blade thickness : 0.3-0.5mm (0.45mm is the standard )
- structure shape : in roll (15m is the standard )or in sheet (2m is better considering container size )
| Flat Razor Wire |
Description |
| Razor Wire Finish |
Hot Dip Galvanised (10-275g/m2) / Stainless Steel304 ,430,316L,etc |
| Barb Tape |
BTO-10,22,28,30,CBT-60,65 |
| Overall Diameter |
300mm/450mm/500mm/ 700mm / 900mm |
| Length |
15 Metres in roll or 2 meters in panel |
Peference
number |
Thickness
(mm) |
Wire dia
(mm) |
Barb length
(mm) |
Bard width
(mm) |
Bard spacing
(mm) |
| BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
| BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
| BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
| BTO-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
| CBT-60 |
0.5±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
| CBT-65 |
0.5±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Applications :
military, prisons, detention centers, government agencies, banks, and private residential, residential fence, villa walls doors and windows, highway, rail fence, border to the security door, apparently has become the mainstream of senior fence.
Notice :
- Flat wrap razor wire normally the coil diameter is 450mm ,500mm, 900mm
- Roll length : standard is 15m or 16m , for the sheet is 2mtrs
- Clipped space , we will suggest you when you have special request .

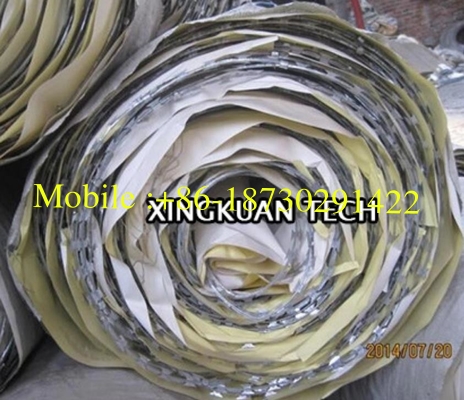

- Packing : roll compacted - normally 5 rolls as one bundle .1 layer packing is thick waterproof paper , 2 layers -add woven bag . 3 layers need to add pallet .
- Payment term : L/C,T/T or any 3rd platform's insurance order way .
