Welded razor wire mesh with blade type BTO-22
Why it has the effect as barrier
and why we choose it ? - Let we read below patiently with this question
*Virtually impossible to climb over or cut through
*Visual and psychological deterrent
*Presents a formidable physical barrier
*Neat unobtrusive design
*Extremely rigid, ideal for fence-mounted sensors
Process :
1.Razor wire blade sheet is punched by machine
2. put core wire together with blade sheet
3.use machine to straighten razor wire strip and cut in fixed length -
4.- welded by mold on machine -
Specification :
For your inquiry ,kindly tell us below :
1.Surface treatment
2.Hole Size
2.Blade type :
3.Width :
4.Length :
5. Quantity :
| Material : |
Q195Low-Carbon steel rod +45# steel sheet |
| Specifications |
Standard Panel Height |
1.2m, 1.8m, 2.1m and 2.4m etc |
| Standard Panel Length |
6meters or customerized length etc |
| Aperture Size |
Diamond type |
high density |
2.95"x 5.90"(75mmx150mm) |
|
| low density |
5.90"x 11.80"(150mmx300mm) |
|
| Rectangular type |
high density |
50mmx150mm,75x150mm |
|
| low density |
100mmx150/200mm,150mmx300mm |
| Sqaure type |
50,100,150,200mm etc |
| Blade length |
0.87"(22mm) |
| Blade thickness |
0.02"(0.5mm) |
| Blade width |
0.59"(15mm) |
| Blade spacing |
1.34"(34mm) |
| Sample policy |
Small samples can be provided with courier charge collect |
| Packing |
①Plastic flm inside, outside weaving bag.②Plastic film inside, outside he sion bag. |
| Surface treatment |
①Electro Galvanized+PVC coated, ②Hot dipped galvanized, ③Electro Galvanized+Powder Spraying |
|
|
|
|
| Application |
①Schools, ②Recreation Area, ③Commercial Site, ④Industrial Estates, ⑤Sports Grounds, ⑥Parks |
|
|
|
|
| Note |
All size (Hole opening , width & Length , Razor Blade type & Surface) can be customerized |
Blade Type:
| Model |
Thickness |
Wire Dia |
Length |
Width |
spacing |
| BTO-10 |
0.5mm |
2.5mm |
12mm |
13mm |
26mm |
| BTO-12 |
0.5mm |
2.5mm |
12mm |
15mm |
26mm |
| BTO-18 |
0.5mm |
2.5mm |
18mm |
15mm |
33mm |
| BTO-22 |
0.5mm |
2.5mm |
22mm |
15mm |
34mm |
| BTO-28 |
0.5mm |
2.5mm |
28mm |
15mm |
34mm |
| BTO-30 |
0.5mm |
2.5mm |
30mm |
18mm |
34mm |
| CBT-60 |
0.6mm |
2.5mm |
60mm |
32mm |
96mm |
| CBT-65 |
0.6mm |
2.5mm |
65mm |
21mm |
100mm |
Hole Size :
Surface treatment :
Packing -in Roll /Panel Size :
Roll Packing : 1. both ends use steel sheet/hard carton paper to wrap well .
2. use waterproof paper
3. No packing
4. Put allets
Panel /Sheet Packing :
1. without packing
2. put pallet

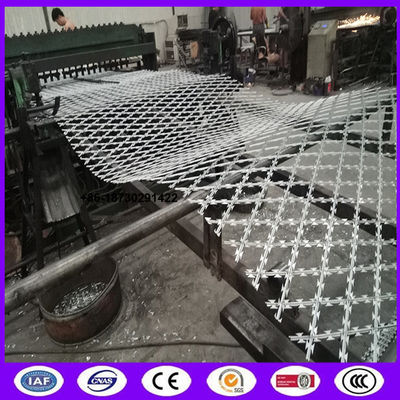

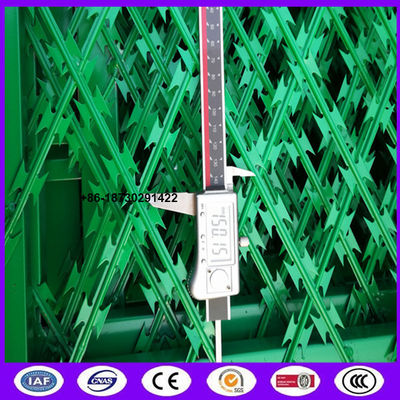

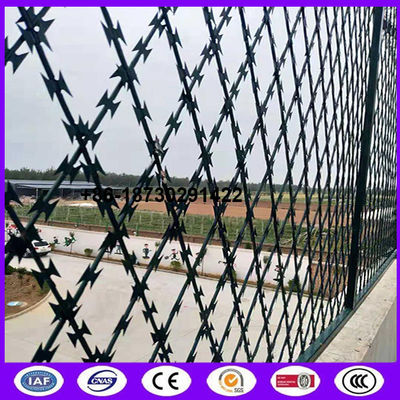

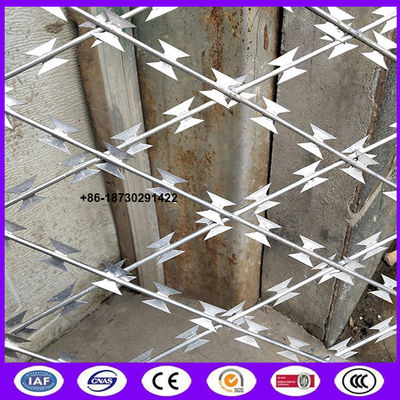

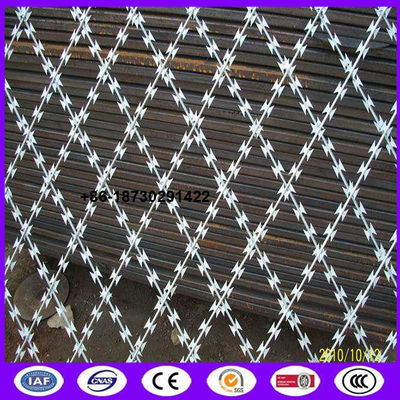

Photo Show:
Application :- comes from its benefits /feature
Welded Razor mesh security fence benefits:
*Almost impossible to climb.
*No secondary use, will not be stolen.
*High-strength steel core very difficult to cut off by common tools
*Powerful security fence barriers parts
*Extremely simple to install
Welded Razor mesh security fence Usages:
* Prison
*Industrial Facilities (Storage ,Factory, Bases and warehouses)
*Roadside (Villas ,parks gardens,school )
*Water-saving and environmental protection enterprises
*Nuclear power stations, and power plants, gas supply and distribution facilities
*National defense facilities, ministry of interior and prisons
* Mining areas and border areas.
It always is used together with post as fence barrier . Also welded used on window or door .
