Razor barbed blade wire for Military Prison Barriers Large Coil Blade Wire Fence
Razor wire cage is a type of barbed wire or razor wire that is formed in large coils like cage which can be expanded like a concertina. In conjunction with plain barbed wire and steel pickets, it is used to form military wire obstacles.
MATERIAL :
razor wire cage is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape
SPECIFICATION :
A-Blade Choice : BTO-10/12/18/22/25(NEW ADD) /28/30 & CBT-60/65
B-Outside Coil Diameter :
300mm/450mm/500mm/600mm/700mm/730mm/750mm/800mm/900mm/960mm/980mm/1000mm etc. Depends on customer real need .
| |
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|

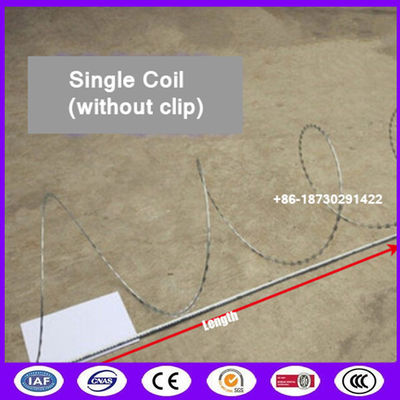

450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|

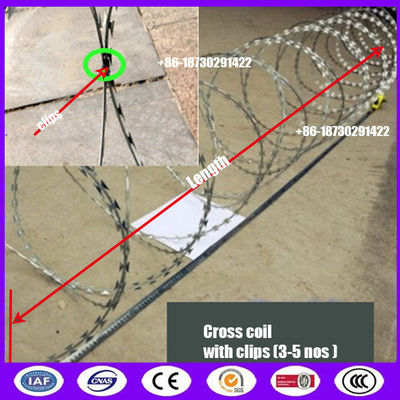

450mm
|
56
|
8-9M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
C. Length / roll :
5m/8m/10m/15m /20m length is better .
Features:
• Sturdiness, Crevice corrosion, Easy to install, impeccable strength, Tough construction
Application :
Security razor wire is widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. It has apparently become the most popularhigh-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
MANY KINDS OF APPLICATION , WE CAN DO AS PER REQUEST .
HOW WE PROCESS IT ?
Produce process : Punch steel sheet - compact core wire -crimp clips - packing .

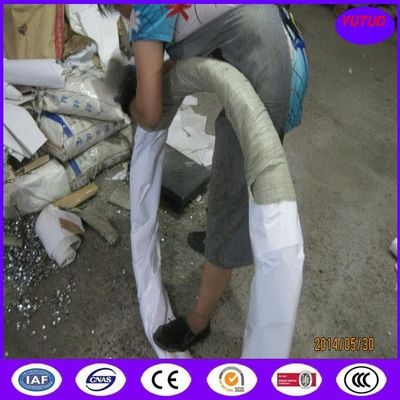

Packing :
1. Lable : we can do as customer request on each roll or on box .
2. Pack : A. Waterproof paper + woven bag
B. waterproof paper + woven bag + Pallet
C. Waterproof paper + carton box
D. colorful POLY film + carton box
E . Only carton box
F. without any packing
G. each roll put into container or compress several rolls as on pack
For packing choice - advantage and disadvantage : good tips for choice .
1. waterproof paper + woven bag for each roll , then compressed several rolls ( 5 rolls /10 rolls ..50 rolls ..100 rolls ) as one pack , it is low cost ,easy load and upload in container .
2. waterproof paper + carton box ( drawings and many words in remark ) or add pallet , higher cost , but it meet the satification for special market ( like supermarket ) or big customer to promot their own brand at local
3. use transparent thick poly and then woven bag
4. customer has special request for waterproof paper color .

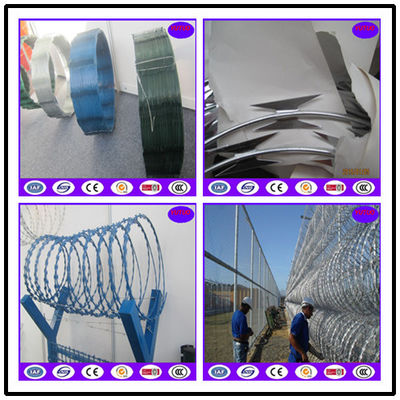

Installation tips :
1. use V support : low cost , easily install
2. use fence mesh ( welded or chain link woven ) + common barbed wire + post /tube
( upto height for security request , and cover big area . it is for long time life using )
