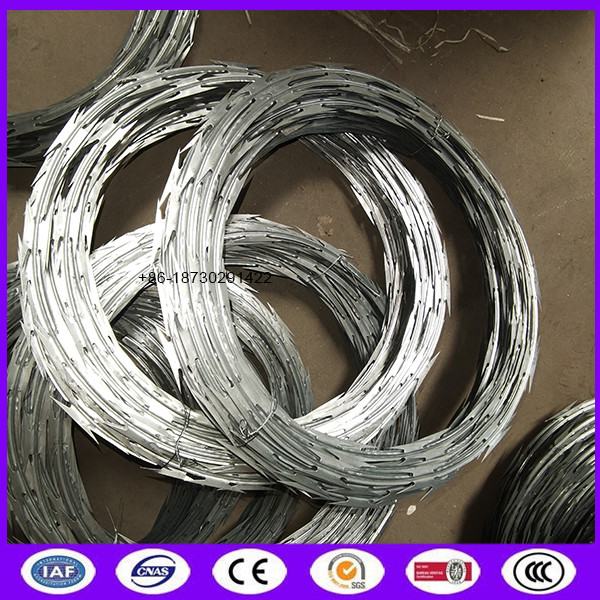

Cbt-65 450mm 50 Feet Length Galvanized Steel Razor Wire Ribbon for Military
CBT-65 450mm 50 feet length razor wire ribbon for military
we not sell only razor wire ,we also offer valued solution for fence wire .
Razor Wires is used as securing the surrounding for farmhouses boundary walls, Apartments Residences, Any Military and Defence department sites, any type of Refineries, Police Stations Boundary and Prisons security walls and high-security Zones life nuclear station sites, hospitals walls, government offices premises, education and admin intuitions like School Boundary, Colleges Boundary, Universities Walls. It provides Total Perimeter Security.
we mainly manufacture the barb razor tape blade : Bto-10 , bto-11,bto-15 ,bto-18, bto-22 (most popular ) ,bto-28, bto-30 & CBT-65 , Today ,TODAY we would like to introduce CBT-65 for you :
Blade Tape : it is also called long balde . And in chinese it is dui hua zheng ci . (The opposite flower is punctured)
|
Type
|
Coil Diameter
|
Loops Amount
|
Coverage Length
|
| CBT-65 |
18" / 450mm |
33 |
26 feet |
| CBT-65 |
20" / 500mm |
41 |
33 feet |
| CBT-65 |
28" / 700mm |
41 |
33 feet |
| CBT-65 |
31" / 800mm |
56 |
28 feet |
| CBT-65 |
38" / 960mm |
53 |
43 feet |
CBT-65 -
Material 1. Galvanized Zinc (hot dipped (50-80 g),
Material 2. electric galvanized(10-30g)
Material 3. high zinc coating 100-270g),
Material 4. zinc aluminum alloy wire ( 270g -380g)
Material 5. Stainless steel 430,304, 316L ( Marine Grade )
Material 5 .PVC coating , ( many colors is available )
Good tensile strength (at least 450 N)
CBT-65 Razor Blade Specification
| Blade Tape |
Thickness(mm) |
Wire Dia.(mm) |
Barb Length(mm) |
Barb Width(mm) |
Barb Spacing(mm) |
| CBT-65 |
0.45±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Type of concertina razor wire -cbt 65 ( 4 types )
Concertina Cross Razor Wire (with clips) -CBT 65
Concertina Cross razor wire is crossed razor wire. Two pieces of stainless steel razor wire or Zinc-coated Wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.
Concerntina Single Razor Wire (without clips) - CBT -65
Concertina Single Coiling razor wire is installed without clips; it runs in natural loops on walls or fencings. Single coiling razor wire is costless and can be easily installed.
Welded razor wire -Trough welded machine , we make it more fixed ,CBT-65 normally add fence frame.
Flat wrap Razor wire - manufacture on shelf to fix the space of circle to circle by crimp clips .
Application :
Razor Wires is used as securing the surrounding for farmhouses boundary walls, Apartments Residences, Any Military and Defence department sites, any type of Refineries, Police Stations Boundary and Prisons security walls and high-security Zones life nuclear station sites, hospitals walls, government offices premises, education and admin intuitions like School Boundary, Colleges Boundary, Universities Walls. It provides Total Perimeter Security.
Features:
• Sturdiness, Crevice corrosion, Easy to install, impeccable strength, Tough construction
MANY KINDS OF APPLICATION , WE CAN DO AS PER REQUEST .
Manufactuering and packing :
Produce process : Punch steel sheet - compact core wire -crimp clips - packing .
For Packing :
1. Lable : we can do as customer request on each roll or on box .
2. Pack : A. Waterproof paper + woven bag
B. waterproof paper + woven bag + Pallet
C. Waterproof paper + carton box
D. colorful film + carton box
E . Only carton box
F. without any packing
G. each roll put into container or compress several rolls as on pack
3. We can do less container ship or full container ship .
We are serious company for manufacturing wire mesh products which keep same with the contract and sample .
We are a cmapny with passion and sincere company for doing business with you and we are thinking to do business with you for many years .
