|Place of Origin:||Hebei Province ,China|
|Certification:||iso 9001 ce,SGS|
|Model Number:||3D eps panel|
|Minimum Order Quantity:||1 piece|
|Price:||US $20 - 80 / Piece|
|Packaging Details:||Packing of 3D wire mesh panel: in bulk on pallet Or as per request|
|Delivery Time:||Shipped in 5 days after payment|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||1000 Piece/Pieces per Day|
|Products:||3D EPS PANEL||Material:||Low-Carbon Iron Wire, Galvanized Iron Wire With EPS|
|Wire Gauge:||2mm-4mm Galvanized Or Non-galvanized||Hole Size:||50x50mm,75mmx75mm,100mmx100mm|
|Truss Wire Diameter::||2.2-2.8mm||Width:||1200mm,1220mm|
|Panel Length:||2400mm,3000mm,6000mm ,etc||EPS Insulation Core:||50mm-100mm|
|Usage:||An Be Used For The Walls,roof, Floor, And So On|
Three Dimension Prefabricated Polystyrene Panels with Welded Wire Mesh
1.The Specification of Three Dimension Panels with Welded Wire Mesh with Polystyrene sheet
Material: low carbon steel wire,stainless steel wire
Type : Two Type :w-wire type( drawing 1 ) & cut wire type( drawing 2)
|Mesh wire:||2-2.8mm galvanized or non galvanized.|
|Mesh opening(mm) :||50 x 50, 75 x 75 and 100 x 100.|
|Truss wire:||2-2.8mm galvanized or non galvanized.|
|Panel length:||2400mm, 3000mm and 6000mm.|
|EPS Insulation Core:||50-100mm.|
Poupular Size as example as below :
3D wire mesh panel
3D panel specifications
---------------------- ALL SIZE CAN BE CUSTOMIZED ( customer's real need is most important )
Components of the installed panel include:
Foam core for insulation.
Wire mesh on inside and outside.
Welded truss of wire cross pieces.
Sprayed concrete on both sides ("shotcrete").

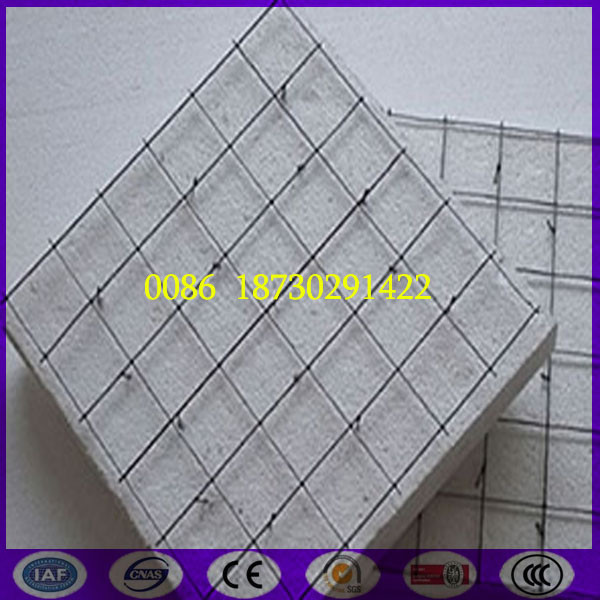

2.The Picture show of Three Dimension Panels with Welded Wire Mesh with Polystyrene sheet :
3.The Process of Three Dimension Panels with Welded Wire Mesh with Polystyrene sheet :
3d panel is a prefabricated Three Dimensional Lightweight Structural panel consisting of a super-insulated polystyrene core sandwiched between two engineered layers of 10 ga Steel welded wire fabric mesh. To complete the panel form process a 10 ga Steel wire truss is pierced completely through the polystyrene core and welded to each of the outer layer sheets of 10 ga Steel welded wire fabric mesh
4.Application of ThreeDimension Panels with Welded Wire Mesh with Polystyrene sheet :
3D Panel - an alternative building system that uses prefabricated polystyrene panels with wire mesh that becomes a structural wall when concrete, gunite, cement, plaster or stucco are shotcrete into place. Unlike other building systems, 3D Panel is an environmentally friendly - recycled green product.
The 3D Panel building system has tremendous flexibility - it can be used in place of wood or metal-framed walls, masonry block walls or pre-cast panels. It is an excellent structural system that can be used in floors, ceilings, and roofs. The 3D Panel building system saves construction time while providing greater structural integrity.
USED For WALL - FIRMED STRUCTURE
5 .The Packing & Shipping of 3D EPS Welded Wire Mesh Panel with Foam:
6.Benefits of 3D EPS Welded Wire Mesh Panel with Foam:
Other 3d panel :
