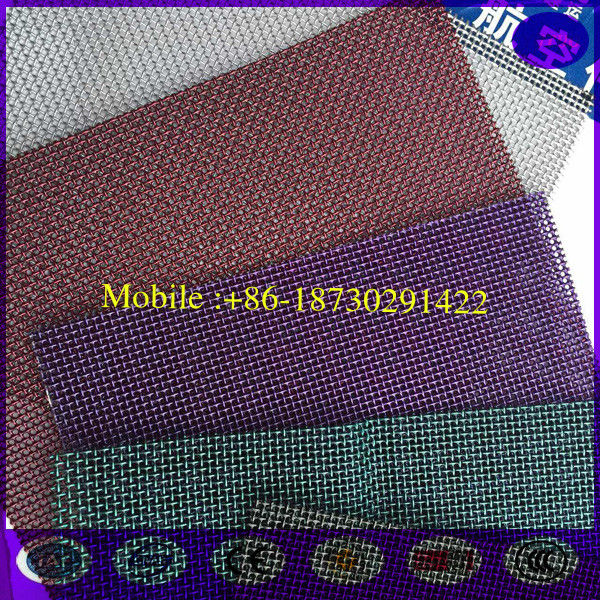

T31612mesh*0.7mm stainless steel security insect screen with many colors

T31612mesh*0.7mm stainless steel security insect screen with many colors

    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
    • T31612mesh*0.7mm stainless steel security insect screen with many colors
  • T31612mesh*0.7mm stainless steel security insect screen with many colors

    Product Details:

    Place of Origin: china factory
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: security window screen

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: Free fumigation wood case packing, 50 pieces per case or 100 pieces per case or customerised
    Delivery Time: 3 days for 1000m2; 15days for 20`GP, 25days for 40`GP
    Payment Terms: L/C,TT
    Supply Ability: 10000 SM2/DAY
    Contact Now
    Detailed Product Description
    Commodity: SECURITY WINDOW SCREEN Security Window Screen's Material: Stainless Steel 202,304,316 , Mn Steel , Carborn Steel
    Type: Door & Window Screens Screen Wire Diameter: 0.5mm-1.0mm
    Security Window Screen Mesh Size: 12*12, Security Window Screen Width: 0.2m-1.8m
    Security Window Screen Length: 2m-31.5m Security Window Screen Color: Black / Grey / Dark Grey, White / Silver / Brown / Green Etc.
    Security Window Screen 's Sample: Small Size Of Sample Is Always Available And Free . Half Day , Sample Will Be Ready

    Product Description



    stainless steel security window screen is made from high strength stainless steel wire

    through the precision loom weaving. It has the property of resisting of shearing and impact force.

    It not only prevent the thefts and bullet but also has elegant appearance. .It is your ideal home decoration product.

    material:

    stainless steel wire 201,202,304L, 316, 316L

    wire diameter:

     0.50mm,0.55mm,0.60mm ,0.70mm,0.80mm,0.90mm,1.0mm

    mesh size 10*10mesh,11*11mesh,12*12mesh,13*13mesh,14*14mesh,15*15mesh

    surface treatment

    black-matte powder coated,  grey, white, brown, yellow, green, various colours as you wish

    application:

    used in all types of windows and doors

    Used in producing security screen that guards your hours anti-theft,anti-mosquito,

    anti-pest.It is suitable for advanced door andwindow.This mesh was submitted to

    Australian Engineering Laboratories for testing.

    advantage:

    a ) Prevent from rats, snakes, flies etc.

    b ) High strength, can not be kicked in or broken with hammers

    c ) Can not be cut with scissors

    d ) Fire proof, maximum anti corrosion

    e ) Clear from inside,can not be seen thru from outside

    f ) Easy to clean

    T31612mesh*0.7mm stainless steel security insect screen with many colors
    T31612mesh*0.7mm stainless steel security insect screen with many colors

    T31612mesh*0.7mm stainless steel security insect screen with many colors

    T31612mesh*0.7mm stainless steel security insect screen with many colors



    Material Mesh per inch Wire Dia (mm) Wire Dia (inch) Open Area
    AISI 316 or 304 10 x 10 0.9mm 0.035" 41.7
    AISI 316 or 304 10 x 10 1.2mm 0.028" 27.8
    AISI 316 or 304 10 x 10 0.8mm 0.032" 46.9
    AISI 316 or 304 10 x 10 1.15mm 0.045" 29.9
    AISI 316 or 304 11 x 11 0.8mm 0.032" 42.5
    AISI 316 or 304 11 x 11 0.7mm 0.027" 48.3
    AISI 316 or 304 12 x 12 0.7mm 0.027" 44.8
    AISI 316 or 304 12 x 12 0.58mm 0.023" 52.8
    Special mesh can be made according to customers requirement





    The Most Popular Size(the bold word above) is as follows for reference

    Raw Material: SS316 Grade

    Wire Dia.: 0.8mm / 1060 Mpa

    Mesh:11x11mesh,Black powder coated

    Opening area: 42.50%

    Thickness: 0.80mm +/- 0.01mm

    Meet Australia,America standard



    Characteristics:
    1. Mesh flat and rigidmesh well-distributed
    2. Best impact resistance

    3.Electrostatic powder coating, aging resistance,corrosion prevention
    4. Anti fire, safety and burglary resistant



    T31612mesh*0.7mm stainless steel security insect screen with many colors



    Our Service:
    1. No matter FOB or CIF the price term is we would try our best to find

    a lowest freight cost for customers' reference.
    2. The third-party inspection always gets real and true data from us and
    we will send production photos to customers if there is no inspection.
    3. Do our best to help customer arrange the shipment and customs clearance.
    4. Installation, maintenance and repair instructions with full information.
    5. 3-8 years warranty depends to different products.
    6. Accept Changing or Refunding if the products cannot be installed rightly.
