China High quality stainless steel woven wire rope mesh with Best Price
1.The Product Description of stainless steel woven wire rope mesh:
| |
|
Material
|
Stainless steel SUS wire rope: 304, 304L, 316, 316L
|
|
Wire rope diameter
|
1.0 mm to 4.0 mm (1/25" to 6/25")
|
|
Structure
|
Adopting the structure of wire rope for the 7 x 7, 7 x 19 rope
|
|
Mesh size
|
25 mm to 200 mm (1'' to 8'')
|
|
Sheet size
|
Can be produced according to your requirements
|
|
Surface
|
Hard polyamide coating in available in any color
|
2. The Pattern of stainless steel woven wire rope mesh: A & B type
Stainless Steel Wire Rope Mesh allows the ropes to go in any direction, vertically, horizontally or a combination of both so that you can create any design to suit your space.
Height: vertical direction( the same direction with the longer aperture direction).
Width: horizontal direction( the same direction with the shorter aperture direction).
Height Aperture: Longer aperture.
Width Aperture: Shorter aperture.
A. Knotted Mesh :
Knotted Mesh Edge Finish:
Easily install with suitable edge design.
Available L01-L08 patterns. The most popular pattern L01,L05,L07,L08
Rope Diameter (mm)
| |
1.2 mm
|
1.6 mm
|
2.0 mm
|
2.5 mm
|
3.2 mm
|
|
Rope Diameter (inch)
|
3/64
|
1/16
|
5/64
|
3/32
|
1/8
|
|
Structure
|
7 x 7
|
7 x 7
|
7 x 7
|
7 x 19
|
7 x 19
|
|
Single Wire Strength (N/mm2)
|
1770
|
1770
|
1770
|
1570
|
1570
|
|
Opening Height x Opening Height (mm)
|
20 x 20
25 x 25
30 x 30
38 x 38
|
25 x 25
30 x 30
38 x 38
51 x 51
76 x 76
|
38 x 38
51 x 51
60 x 60
76 x 76
|
51 x 51
60 x 60
76 x 76
90 x 90
102 x 102
|
51 x 51
76 x 76
90 x 90
102 x 102
120 x 120
|
|
Opening Height x Opening Height (inch)
|
4/5 x 4/5
1 x 1
1.2 x 1.2
1-1/2 x 1-1/2
|
1 x 1
1.2 x 1.2
1-1/2 x 1-1/2
2 x 2
3 x 3
|
1-1/2 x 1-1/2
2 x 2
2.4 x 2.4
3 x 3
|
2 x 2
2.4 x 2.4
3 x 3
3.55 x 3.55
4 x 4
|
2 x 2
3 x 3
3.55 x 3.55
4 x 4
4.75 x 4.7
|

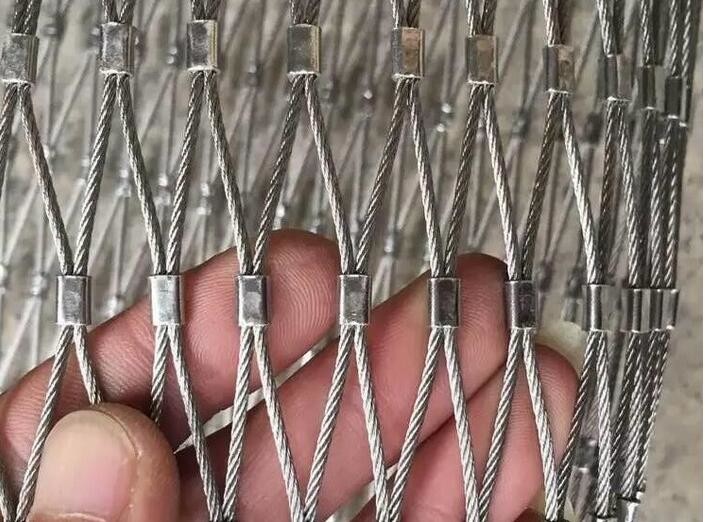

B.Ferrule Mesh:
Ferrule Mesh Edge Finish:
Easily install with suitable edge design.
Available 30 patterns. The most popular pattern L10,L18,L22,L24.
Rope Diameter (mm)
| |
1.0 mm
|
1.6 mm
|
2.0 mm
|
3.0 mm
|
4.0 mm
|
|
Rope Diameter (inch)
|
1/25
|
1/16
|
5/64
|
1/8
|
4/25
|
|
Structure
|
7 x 7
|
7 x 7
|
7 x 7
|
7 x 19
|
7 x 19
|
|
Single Wire Strength (N/mm2)
|
1770
|
1770
|
1770
|
1570
|
1570
|
|
Opening Width x Opening Height (mm)
|
20 x 35
25 x 43
30 x 52
35 x 61
40 x 69
50 x 87
60 x 104
70 x 121
80 x 139
|
25 x 43
30 x 52
35 x 61
40 x 69
50 x 87
60 x 104
70 x 121
80 x 139
100 x 173
120 x 208
180 x 312
200 x 346
|
40 x 69
50 x 87
60 x 104
70 x 121
80 x 139
100 x 173
120 x 208
180 x 312
200 x 346
|
50 x 87
60 x 104
70 x 121
80 x 139
100 x 173
120 x 208
180 x 312
200 x 346
|
60 x 104
70 x 121
80 x 139
100 x 173
120 x 208
180 x 312
200 x 346
|
3. The structure of stainless steel woven wire rope mesh: 7x7 or 7x19
4. The Process of stainless steel woven wire rope mesh:
Making rope mesh -measure-polish-rolling -film wrap -put into wooden case
5. The associate parts of stainless steel woven wire rope mesh:
6. The Application of stainless steel woven wire rope mesh:
(1).Animal Enclosure mesh
(2).animal cages, bird netting
(3).Agriculture
(4).Residential
(5).Sports
(6).Fall Security
(7).Ocean Park and other similar environments
(8).garden decoration and construction and renovation.
ZOO MESH :
fall security mesh :
Stairway Mesh :
Ocean Park and other similar environments:
Fence mesh :
