Extruder Screen Filter Discs

Extruder Screen Filter Discs

Extruder Screen Filter Discs

Product Details:

Place of Origin: Hebei,china
Brand Name: XKh
Certification: iso,ce
Model Number: continuous filter belt for scren changer in plastic extruder machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Price based on quantity
Packaging Details: film+waterproof paper , carton or wooden case is available
Delivery Time: ready sock in 3 days
Payment Terms: L/C,TT
Supply Ability: 10000rolls /month
Contact Now
Detailed Product Description

Extruder screen filter discs filter rating up to 12 microns

Extruder screen filter disc serves the purpose for extremely thin and fine extrusion process in industrial sectors. Filter discs can be made of woven wire mesh, sintered fiber web or sintered wire cloth sheets while woven wire mesh filter discs are the most popular one. Micro filters discs are available in single and multiple layers with & without frame, multiple layers with spot welding.

Materials: stainless steel ansi304, ansi316, galvanized steel, brass, carbon steel, copper and bronze, aluminum alloy, nickel alloy.
Shapes: circular, toroidal, square, rectangle, kidney shape, oval, and other special shape.

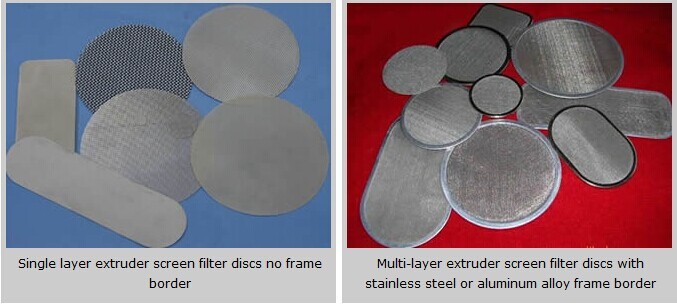

Layers: single layer or spot welded multi-layer screen discs.
Multilayer Discs by either spot welded or bound
Type of Weaves: plain weave, twilled weave, dutch weave
Filtration Rating: 12 to 1,000 microns.
Disc Diameter: the disc diameter of filter disc is from 50mm to 800mm.

High filtration capacity, Long service life; Withstand harsh work conditions; Withstand high temperature;

Filter discs are mainly used for absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks. Filter disc screens are also used for the production of polyester fibers plastic extrusion.
