Place of Origin: | Hebei,china |
Brand Name: | XKh |
Certification: | iso,ce |
Model Number: | continuous filter belt for scren changer in plastic extruder machine |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Price based on quantity |
Packaging Details: | film+waterproof paper , carton or wooden case is available |
Delivery Time: | ready sock in 3 days |
Payment Terms: | L/C,TT |
Supply Ability: | 10000rolls /month |
Screen Changer Filter Screen
NO.1:Mesh belt : 132x17 mesh, 152x24 mesh, 260x40 mesh, 72x15mesh.150x17 mesh.
132x17mesh: 0.3x0.45mm,4.4kg/sqm.
152x24mesh: 0.3x0.4mm. 3.5kg/sqm.
260x40mesh: 0.15x0.27mm.2.1kg/sqm.
72x15mesh: 0.45x0.55mm. 5kg/sqm.
Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm.
Length: 10m , 20m / roll.
Material: Stainless steel 304.
Woven style: RDW woven. Reversed dutch woven .

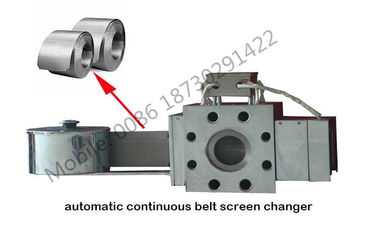

Used on the automatic screen changer, for filtering.
NO.2:WE produce reversed dutch woven filter cloth ( RDW FILTER CLOTH ) for 1x30m / roll.
RDW Filter cloth:
130x30mesh, 0.2x0.4mm. 1x30m. 80kg/ roll. SS316L.
175x45mesh, 0.15x0.3mm, 1x30m. 58kg / roll. SS316L.
290x70mesh, 0.09x0.2mm, 1x30m. 39kg / roll. SS316L.
Custom designs are also available
Basic specifications
Mesh |
Wire Dai.(mm) |
Thickness(mm) |
Width(cm) |
45x15 |
0.45x0.6 |
1.75 |
9.7-28 |
48X10 |
0.50X0.50 |
3.6kg/sq.m |
9.7-28 |
72x15 |
0.45x0.55 |
1.7 |
9.7-28 |
90X17 |
0.23X0.55 |
2.48kg/sq.m |
9.7-28 |
110X17 |
0.23X0.55 |
2.6kg/sq.m |
9.7-28 |
110X21 |
0.23X0.35 |
2.0kg/sq.m |
9.7-28 |
120x16 |
0.35x0.45 |
1.36 |
9.7-28 |
132x17 |
0. 3x0.45 |
1.3 |
9.7-28 |
152x24 |
0.3x0.40 |
1.2 |
9.7-28 |
160x18 |
0.28x0.45 |
1.27 |
8-85 |
200x40 |
0.15x0.27 |
0.7 |
8-130 |
260x40 |
0.15 x0.27 |
0.65 |
8-130 |
300x40 |
0.15 x0.27 |
0.65 |
8-130 |
360x40 |
0.13 x0.27 |
0.6 |
8-130 |
Special specification we can produce according to customers' requirements. |
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Automatic Screen changer screen belt Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.
Continuous automatic filter belt | |||
Mesh/inch |
Wire Dia.(mm) |
Width(mm) |
Length/Roll(m) |
72/15 |
0.45/0.55 |
97---400 |
10/20 |
120/15 |
0.35/0.45 |
97---400 |
10/20 |
132/17 |
0.32/0.45 |
97---400 |
10/20 |
150/17 |
0.3/0.45 |
97---400 |
10/20 |
152/24 |
0.27/0.4 |
97---400 |
10/20 |
170/17 |
0.27/0.45 |
97---400 |
10/20 |
180/18 |
0.27/0.45 |
97---400 |
10/20 |
200/40 |
0.17/0.27 |
97---400 |
10/20 |
260/40 |
0.15/0.25 |
97---400 |
10/20 |
Other sizes are avaliable according to clients'request.
Edge of Automatic Screen changer screen belt:
Applications of Automatic Screen changer screen belt :
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Packing of Automatic Screen changer screen belt :
Waterproof paper on each roll + carton / wooden case
Shipping of Automatic Screen changer screen belt :
By sea or By Air - Express , No problem for us .
Do you accept Paypal , west Union ?
Yes It is ok for us ,No problem .
