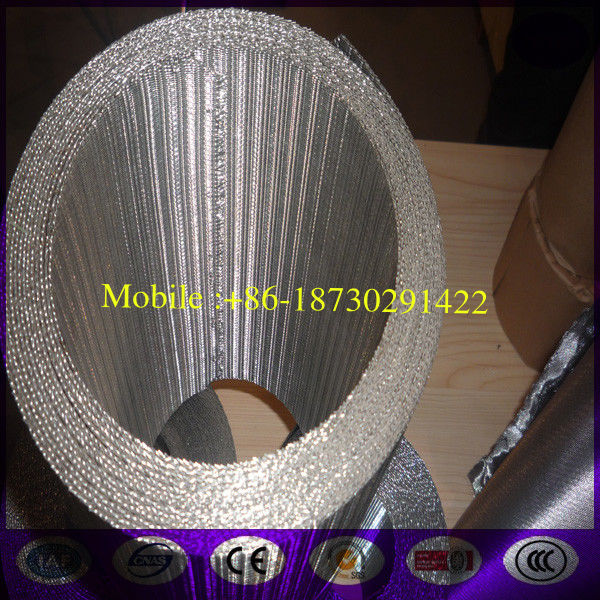

stainless steel Automatic Screen Changer Filter Belt , SS Auto Band Filter Screen
SS Auto Band Filter Screen is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
SS Auto Band Filter Screen combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.
Weave types of SS Auto Band Filter Screen :Reverse Plain Dutch Weave and Reverse Twill Dutch Weave.
Materials of Automatic stainless steel filter belt -Reverse Dutch Weave(Reverse Dutch Weave Wire Mesh): Reverse Dutch Weave Wire Mesh is made by using stainless steel wire 304,304L,316,316L 904 904L 310 310s 410 430 etc..
feature of SS Auto Band Filter Screen :
- High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
- Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
- Plasma and laser cut parts to help prevent edges wire fraying.
- 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.
We offer a wide range of metals and alloys to provide the best material or combination of materials for the filter mesh. Contact us today for more information or a detailed quote.
Application of Reverse dutch wire mesh:
- Suitable for plastic wire drawing machine, stretch film machine, coating machine filters, such as plastic woven bag, plastic film.
- Used for plastic recycling filter, otherwise wafer type, square type, single or multi-layer molding machine filter.
Size
Standard Specs
- 48x10 mesh RDPW 400 nominal micron
- 72x15 mesh RDTW 250 nominal micron
- 132x16 mesh RDTW 200 nominal micron
- 152x30 mesh RDTW 115 nominal micron
- 250x40 mesh RDTW 75 nominal micron
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Automatic screen changer belt for plastic extruder machine Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.
| Continuous automatic filter belt |
|
Mesh/inch
|
Wire Dia.(mm)
|
Width(mm)
|
Length/Roll(m)
|
|
72/15
|
0.45/0.55
|
97---400
|
10/20
|
|
120/15
|
0.35/0.45
|
97---400
|
10/20
|
|
132/17
|
0.32/0.45
|
97---400
|
10/20
|
|
150/17
|
0.3/0.45
|
97---400
|
10/20
|
|
152/24
|
0.27/0.4
|
97---400
|
10/20
|
|
170/17
|
0.27/0.45
|
97---400
|
10/20
|
|
180/18
|
0.27/0.45
|
97---400
|
10/20
|
|
200/40
|
0.17/0.27
|
97---400
|
10/20
|
|
260/40
|
0.15/0.25
|
97---400
|
10/20
|
Other sizes are avaliable according to clients'request.
Edge of SS Auto Band Filter Screen:
Applications of SS Auto Band Filter Screen:
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Stainless Steel Reverse Plain Dutch Weave Wire Mesh (RPD) is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
Packing of SS Auto Band Filter Screen:
Waterproof paper on each roll + carton / wooden case
Shipping of SS Auto Band Filter Screen:
By sea or By Air - Express , No problem for us .
