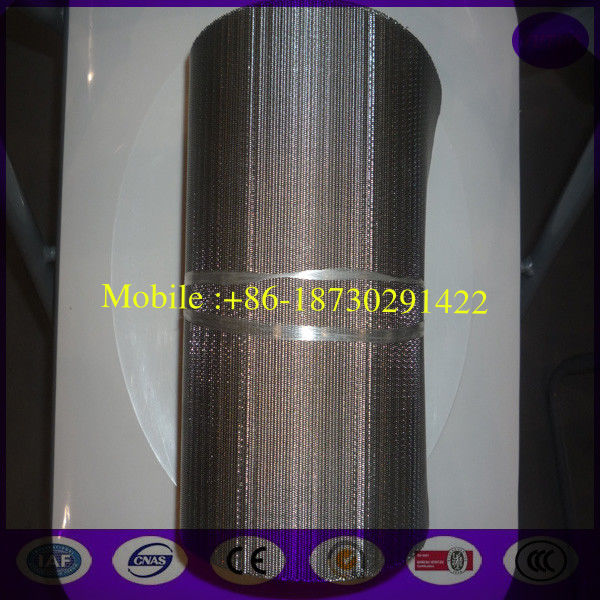

250um stainless steel continous filter belt for Plastic Extruder screen changer machine
72x 15 mesh Filter Net For Extruder.
Wire Dia: 0.45mm x 0.55mm.
Weight : 5kg/sq.m.
Filter Fineness: 250um.
Width : 9.7cm-10cm-12cm-12.6cm-12.7cm-12.8cm-15cm-23cm-40cm
Length : 10M,20M,
Material : Stainless Steel Wire 304,302.316.
MOQ : 1-10 rolls for your test the quality and strength .
Capcity: 4500 rolls per month.(for 2 container)
For mechanical machinery for advance plastic, chemical industry and chemical fiber industry.
Available in rolls as your specification.
Custom designs are also available.
Basic specifications
|
Mesh
|
Wire Dai.(mm)
|
Thickness(mm)
|
Width(cm)
|
|
45x15
|
0.45x0.6
|
1.75
|
9.7-28
|
|
48X10
|
0.50X0.50
|
3.6kg/sq.m
|
9.7-28
|
|
72x15
|
0.45x0.55
|
1.7
|
9.7-28
|
|
90X17
|
0.23X0.55
|
2.48kg/sq.m
|
9.7-28
|
|
110X17
|
0.23X0.55
|
2.6kg/sq.m
|
9.7-28
|
|
110X21
|
0.23X0.35
|
2.0kg/sq.m
|
9.7-28
|
|
120x16
|
0.35x0.45
|
1.36
|
9.7-28
|
|
132x17
|
0. 3x0.45
|
1.3
|
9.7-28
|
|
152x24
|
0.3x0.40
|
1.2
|
9.7-28
|
|
160x18
|
0.28x0.45
|
1.27
|
8-85
|
|
200x40
|
0.15x0.27
|
0.7
|
8-130
|
|
260x40
|
0.15 x0.27
|
0.65
|
8-130
|
|
300x40
|
0.15 x0.27
|
0.65
|
8-130
|
|
360x40
|
0.13 x0.27
|
0.6
|
8-130
|
|
Special specification we can produce according to customers' requirements.
|
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Automatic Screen changer screen belt Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.
| Continuous automatic filter belt |
|
Mesh/inch
|
Wire Dia.(mm)
|
Width(mm)
|
Length/Roll(m)
|
|
72/15
|
0.45/0.55
|
97---400
|
10/20
|
|
120/15
|
0.35/0.45
|
97---400
|
10/20
|
|
132/17
|
0.32/0.45
|
97---400
|
10/20
|
|
150/17
|
0.3/0.45
|
97---400
|
10/20
|
|
152/24
|
0.27/0.4
|
97---400
|
10/20
|
|
170/17
|
0.27/0.45
|
97---400
|
10/20
|
|
180/18
|
0.27/0.45
|
97---400
|
10/20
|
|
200/40
|
0.17/0.27
|
97---400
|
10/20
|
|
260/40
|
0.15/0.25
|
97---400
|
10/20
|
Other sizes are avaliable according to clients'request.
Edge of Automatic Screen changer screen belt:
Applications of Automatic Screen changer screen belt :
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Packing of Automatic Screen changer screen belt :
Waterproof paper on each roll + carton / wooden case
Shipping of Automatic Screen changer screen belt :
By sea or By Air - Express , No problem for us .
