Automatic Filter Belt for Plastic Extrusion Screen Changer
Brief Descriptopn
Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
Reverse Twill Dutch weave wire cloth combines Dutch and twill weaving to provide a fine mesh filtering cloth. The weaving process allows for the use of very fine wires, producing filtering mesh for gas and liquid applications. We also provide Herringbone and Broken Pattern Reverse Twill Dutch Weave Products.
Standard Technial parameters
(1) Material : AISI 304 304L 316 316L stainless steel wire
(2) Weave Type : Reversed Dutch Weave
(3) Mesh Size : 72/15-260/40 Mesh
(4) Width : 97mm 127mm 260mm 320mm 400mm etc
(5)Length : 10m ,20m,16.5m,30m,38.5m etc
|
Mesh
|
Wire Dia.( mm)
|
Roll Width
|
Length
|
Weight (kgs/m2)
|
|
72x15
|
0.45x0.55
|
0.95cm----100cm
|
10m-49m
|
4.8
|
|
120x16
|
0.35x0.45
|
0.95cm----100cm
|
10m-49m
|
4.3
|
|
132x18
|
0.35x0.45
|
0.95cm----100cm
|
10m-49m
|
4.3
|
|
152x24
|
0.30x0.45
|
0.95cm----100cm
|
10m-49m
|
4.5
|
|
160x17
|
0.27x0.45
|
0.95cm----100cm
|
10m-49m
|
3.6
|
|
170x17
|
0.27x0.45
|
0.95cm----100cm
|
10m-49m
|
3.89
|
|
180x19
|
0.26x0.45
|
0.95cm----100cm
|
10m-49m
|
4.05
|
|
200x40
|
0.17x0.27
|
0.95cm----100cm
|
10m-49m
|
2.17
|
|
260x40
|
0.15x0.25
|
0.95cm----100cm
|
10m-49m
|
2.09
|
|
325x40
|
0.13x0.24
|
0.95cm----100cm
|
10m-49m
|
1.95
|
Features
- High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
- Rubbed Edges after slitting to help with tracking for Auto-Screen changers.
- Plasma and laser cut parts to help prevent edges wire fraying.
- 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.
Application

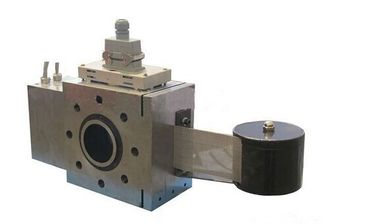

Widely used for plastic chemical machines and chemical fiber machines for filtering in plastic industry for PP,PS,PVC,PET,PE,ABS,PMMA in ribbon stype continuous screen changers for plastic extrusion melt fitration
Packing
our standard export seaworthy packing is as follows: inside with"paper tube" wraped with"plastic film"as well as "waterproof paper" to prevent the moist while on sea,final loaded in wooden case to reduce the pressure while loading
