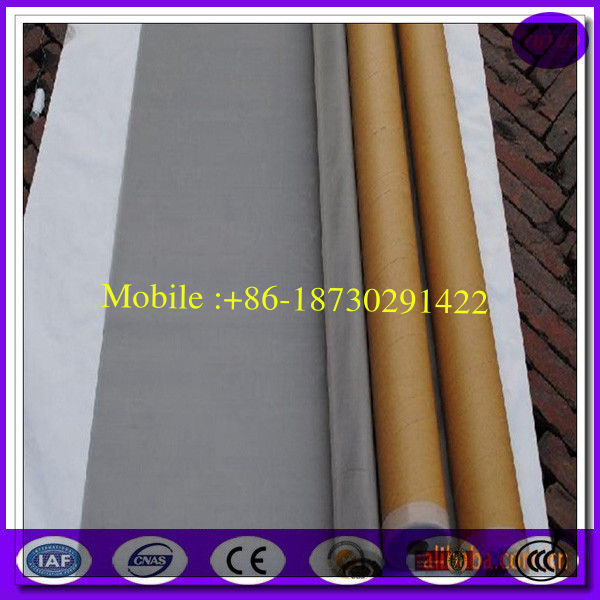

200 mesh stainless steel printing wire mesh(Anping)
1. Specifications of the 200 mesh stainless steel printing wire mesh :
Material: stainless steel SUS 304N, 304HPS, 316L,
Weave Pattern: Plain weave
(1) Plain Weave is the most commonly used and simplest wire weaving pattern.
Aperture style: square hole
Wire Diameter: 20-120 micron meter
Thickness: 36-240 micron meter, specific thickness of the cloth is different according to the meshes of the wire cloth. The Calendared Thickness can be 28-240 micron, relatively 60.6%-98%.
Theoretical Ink: 18.4-103.0 cubic centimeters per square meter.
|
Material :
|
202,304,316,316L
|
Weaning Method
|
Plain
|
|
Mesh :
|
200
|
Wire Diameter
|
0.05mm
|
|
Width :
|
3ft - 6m
|
Length
|
30 m- As request
|
|
Opening :
|
37%
|
Aperture
|
0.077mm
|
2. Features of the 200 mesh stainless steel printing wire mesh :
Features: High tension.Much higher tension than common polyester mesh ,and this property is very stable;
Super precision: Uniform wire diameter and aperture with extremely low difference;
Low Elongation: Very small elongation of wire mesh at high tension;
High Flexibility: The wire mesh will not lose elasticity at extreme tension;
High Corrosion Resistance: The excellent corrosion resistance of stainless steel wire exceeds polyester fiber.
Non-electrostatic: To avoid affects of non-electrostatic for printing and ensure the safety of printing;
Good Heat-melting Resistance: Special features of steel wire mash. Suitable for heat -melting ink;
Good Solvent Resistance: To avoid the affects of any solvents to wire mesh and to ensure the safety of printing
3. Application of the 200 mesh stainless steel printing wire mesh :
Stainless steel printing wire mesh is widely used in the printing ofchip Electrical Components. Solar Battery, FPD, LCD, Glass, PCB.
Our products have been exported to more than 30 countries and areas all over the world, such as the USA, England, Brazil, Kenya, Morocco, Russia, Indonesia, Singapore, Pakistan, Malaysia
