stainless steel wire mesh
1.material:ss304/316
2.mesh:30~500mesh.
3.aperture:25-500um
4.ISO/CE/SGS certificate

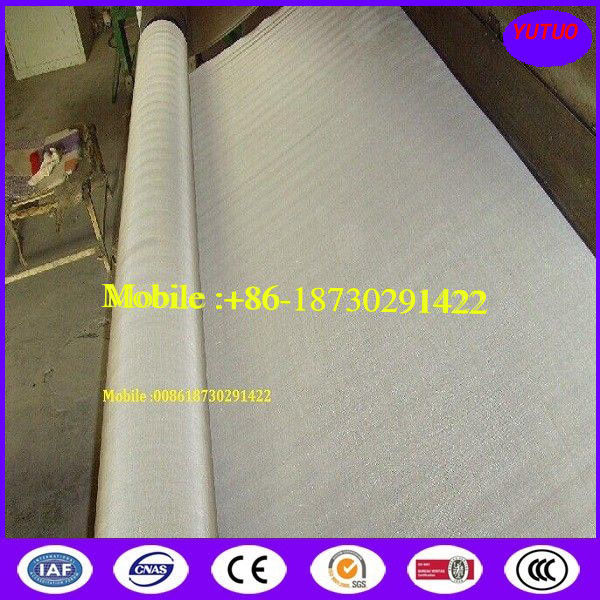

316 Stainless Steel Filter Woven Wire Mesh
Product Description
other name:stainless steel weave mesh,stainless steel screen,filter stainless steel wire cloth.
1.Material:AISI304/316/316L
2.Weave Pattern:plain weave,twill weae,dutch weave.
3.Features:
1)acid-resistin,alkali-resisting,heat-resisting,stretch resisting and wear-resisting etc.
2)flat surface,not curl after unfold the roll.
3)strong structure,good tension.
4.Application:
1)304 stainless steel is widely used in curtain wall, side wall, roof and other building.
2)316/346L stainless steel is widely used in agreessive industry.
3)also widely used in mining industry, chemical industry, food, medicine, etc . Mainly used for
gas, liquid filter and other medium separation.
5.Specification:wire dia:0.03~0.3mm(special specification can be customed),
mesh:30~500mesh, Roll width:0.914mm, 1m,1.2m,1.5m up to 6m max.
Roll length: 15m, 30m, 50m,etc.
Plain weave SS wire Cloth specification
|
Mesh
|
Wire diameter
|
aperture
|
Opening rate
|
Weight
Pound /100intch2
|
|
inch
|
mm
|
inch
|
mm
|
|
30X30
|
.012
|
.305
|
.0213
|
.54
|
40.8
|
29.4
|
|
30X30
|
.009
|
.229
|
.0243
|
.62
|
53.1
|
16.1
|
|
35X35
|
.011
|
.279
|
.0176
|
.45
|
37.9
|
29.0
|
|
40X40
|
.010
|
.254
|
.0150
|
.38
|
36.0
|
27.6
|
|
50X50
|
.009
|
.229
|
.0110
|
.28
|
30.3
|
28.4
|
|
50X50
|
.008
|
.203
|
.0120
|
.31
|
36.0
|
22.1
|
|
60X60
|
.0075
|
.191
|
.0092
|
.23
|
30.5
|
23.7
|
|
60X60
|
.007
|
.178
|
.0097
|
.25
|
33.9
|
20.4
|
|
70X70
|
.0065
|
.165
|
.0078
|
.20
|
29.8
|
20.8
|
|
80X80
|
.0065
|
.165
|
.0060
|
.15
|
23.0
|
23.2
|
|
80X80
|
.0055
|
.140
|
.0070
|
.18
|
31.4
|
16.9
|
|
90X90
|
.005
|
.127
|
.0061
|
.16
|
30.1
|
15.8
|
|
100X100
|
.0045
|
.114
|
.0055
|
.14
|
30.3
|
14.2
|
|
100X100
|
.004
|
.102
|
.0060
|
.15
|
36.0
|
11.0
|
|
100X100
|
.0035
|
.089
|
.0065
|
.17
|
42.3
|
8.3
|
|
110X110
|
.0040
|
.1016
|
.0051
|
.1295
|
30.7
|
12.4
|
|
120X120
|
.0037
|
.0940
|
.0064
|
.1168
|
30.7
|
11.6
|
|
150X150
|
.0026
|
.0660
|
.0041
|
.1041
|
37.4
|
7.1
|
|
160X160
|
.0025
|
.0635
|
.0038
|
.0965
|
36.4
|
5.94
|
|
180X180
|
.0023
|
.0584
|
.0033
|
.0838
|
34.7
|
6.7
|
|
200X200
|
.0021
|
.0533
|
.0029
|
.0737
|
33.6
|
6.2
|
|
250X250
|
.0016
|
.0406
|
.0024
|
.0610
|
36.0
|
4.4
|
|
270X270
|
.0016
|
.0406
|
.0021
|
.0533
|
32.2
|
4.7
|
|
300X300
|
.0051
|
.0381
|
.0018
|
.0457
|
29.7
|
3.04
|
