Automatic Belt Screen Filter in 260/40mesh 127mm width
What's the usage of automatic belt screen filter ?
* It is installed in screen changers , normaly it is in 10m or 20 m length in heating , colling or control ssystem it is autoamtic controled by pressure sensing elements of the system ,,no manual operation , it is widely used in raw material of PP,PE ,ABS ,ps etc , widely used in the casting film, film, sheet ,plate ,optical fiber , a variety of filament drawing ,compounding and other high -quality and long production process
* it is also used as filter media in cut piece in many industrial zone , like air , water ,gas ,etc .
Specification :
For your inquiry ,kindly tell us below :
1.Mesh :
2.Width :
3.Length :
4. Quantity :
EXAMPLE :
260/40 mesh
0.15 mmx 0.22 mm
Width : 127mm
Length: 10 meters or 20 meters
,rolls
Material : Stainless steel 304 ,
Weight : 2.1 kg/m2
STANDARD SPECIFICATION :
we have many many size , here below is just as your reference with basic information .
| Continuous automatic filter belt |
| Mesh/inch |
Wire Dia.(mm) |
Width(mm) |
Length/Roll(m) |
| 72/15 |
0.45/0.55 |
97---400 |
10/20 |
| 120/15 |
0.35/0.45 |
97---400 |
10/20 |
| 132/17 |
0.32/0.45 |
97---400 |
10/20 |
| 150/17 |
0.3/0.45 |
97---400 |
10/20 |
| 152/24 |
0.27/0.4 |
97---400 |
10/20 |
| 170/17 |
0.27/0.45 |
97---400 |
10/20 |
| 180/18 |
0.27/0.45 |
97---400 |
10/20 |
| 200/40 |
0.17/0.27 |
97---400 |
10/20 |
| 260/40 |
0.15/0.25 |
97---400 |
10/20 |

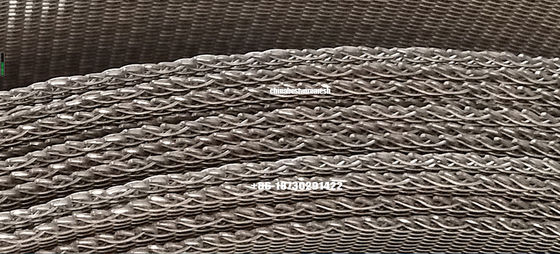

Edge show :
Assure the wire is not lossen . we are very professional for this , dont worry

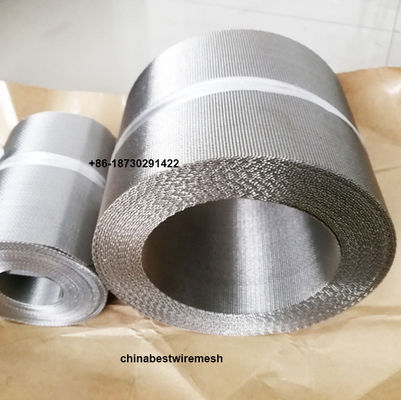

Packing -in Roll /Panel Size :
Waterproof paper on each roll + carton / wooden case
Application:
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Stainless Steel Reverse Plain Dutch Weave Wire Mesh (RPD) is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

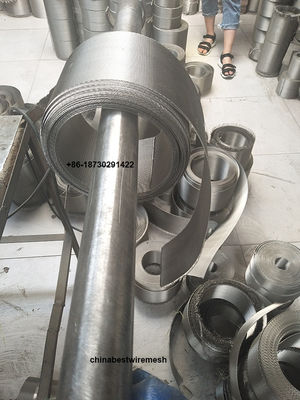

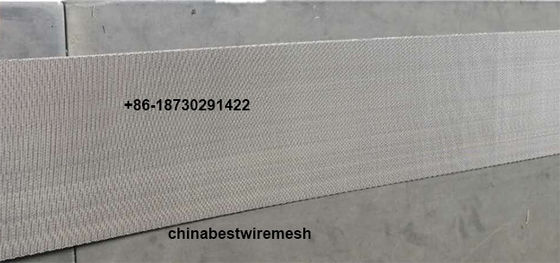

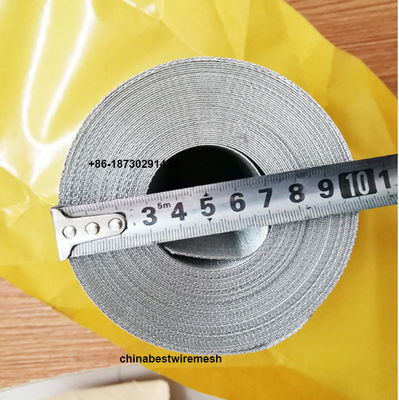

Photo Show :
