Place of Origin: | China |
Brand Name: | xk highui |
Certification: | ISO9001:2000,CE,SGS,COC |
Model Number: | continuous filter belt for scren changer in plastic extruder machine |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Price based on quantity |
Packaging Details: | film+waterproof paper , carton or wooden case is available |
Delivery Time: | ready sock in 3 days |
Payment Terms: | L/C,TT |
Supply Ability: | 10000rolls /month |
Name: | Reverse Dutch Twill Weave Filter Belts | Width: | 97mm,127mm,130mm,150mm Etc |
---|---|---|---|
Length: | 10m/roll ,15m/roll ,20m/roll ,etc | MOQ: | 1 Roll |
Mesh: | 175x45,152x24,132x17,260x40,, 160 Mesh , 130 Mesh ,160 Mesh , 200 Mesh , Etc | Function: | Belt Mesh Used In Non-stop Screen Changer |
Fair Attend: | China West Rubber And Plastic In CQ City |

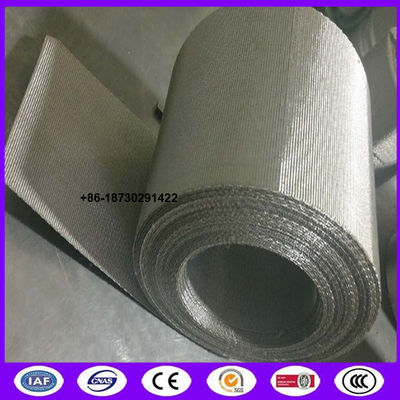

Material Stainless Steel 201 Stainless Steel Reverse dutch woven wire mesh filter screen for extruder
Technical specifications:
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Product Name | Material Stainless Steel Reverse dutch woven wire mesh filter screen for extruder |
---|---|
Certificate | SGS |
Mesh count | 72/15 , 120/15, 132/17 / 150/17,152/24,170/17,180/18,200/40,260/40 etc |
Technique | Dutch Reversed Woven Wire Mesh |
Material | SS201,302,304 etc |
Width | 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm, etc |
Application | Plastic extruder filter screen |
Rolls length | 10/20rolls, special material can upto 80m |
Features:
--Specialized in Plastic Extrusion Field
--Extensive Products Range
--Widest Range Of Size (15 Mesh To 260 Mesh)
--Ready-to-use (0.15mmTo 0.55mm Diameter)
--World-Class Quality With Smooth Cutting Burr Free Edge
Continuous automatic filter belt | |||
Mesh/inch |
Wire Dia.(mm) |
Width(mm) |
Length/Roll(m) |
72/15 |
0.45/0.55 |
97---400 |
10/20 |
120/15 |
0.35/0.45 |
97---400 |
10/20 |
132/17 |
0.32/0.45 |
97---400 |
10/20 |
150/17 |
0.3/0.45 |
97---400 |
10/20 |
152/24 |
0.27/0.4 |
97---400 |
10/20 |
170/17 |
0.27/0.45 |
97---400 |
10/20 |
180/18 |
0.27/0.45 |
97---400 |
10/20 |
200/40 |
0.17/0.27 |
97---400 |
10/20 |
260/40 |
0.15/0.25 |
97---400 |
10/20 |
Applications of Automatic Screen changer screen belt :

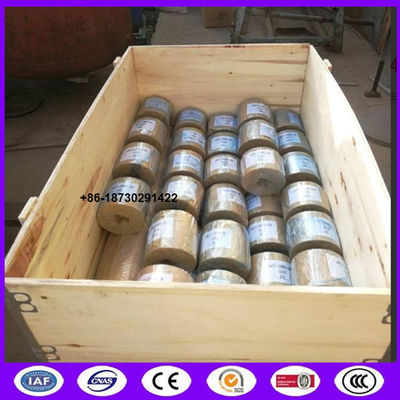

Packing of Automatic Screen changer screen belt :
Waterproof paper on each roll + carton / wooden case
