    Product Details:

    Place of Origin: China
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: Gabion box made in china

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: Bulk
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 7 days /1 container
    Contact Now
    Detailed Product Description
    Material: Steel Wire Surface Treatment: Hot Dip Galvanized,Heavy Zinc Coating ,zinc-alu Alloy Coated(Galfan)
    Mesh Size: 80X100-120X150MM Application: Gabion
    Hole Shape: Hexagonal Packing: Packed With Plastic Film Then On The Pallets Or Bulk

               Hole -150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania



    OUR ADVANTAGE :we can do customerized welded gabion for beautify our life and landscape









    1.Introduction of Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania



     EXAMPLE SIZE :Gabion Box Size: 2.00 x 1.00 x 1.2m

                                     Gabion Box size :2.00x1.00x0.5m



    welded gabion are wire mesh containers welded with high quality steel mesh. They can

    be filled on site with hard durable stone materials to form mass gravity retaining structures.

    Owing to their inflexibility, welded gabions can not adapt to differential settlement or be

    used in water courses ,In comparison with woven wire gabions, welded gabions offer a

    higher strength. In order to meet different project requirements, various wire diameters

    and unit sizes are available for welded gabion boxes.



    Material  Steel Wire
    Surface Treatment Zinc Coated Welded Gabion(Common hot dipped galvanized or Heavy zinc coating )
    PVC Coated Welded Gabion
    Zinc aluminum alloy Coated Welded Gabion(5% aluminum or 10% aluminum)
    ASTM Standard ASTM A 856
    ASTM A 641



    Kindly note :

    Size: based on customer need

    (Below Box Size is just as reference , we can make it according to your last need ,as example : 2Meter x 1.5Meter X0.15Mtr )

    Hole size : 50x50mm,75x75mm,50x100mm,100x100 mm etc

    ( below mesh size is just as reference we can make it according to your last need ,as example : 70X70mm

    Connect way :Spiral wire,U clip,C ring,lacing wire,hook



    SQUARE HOLE :

    Welded gabion unit
    Wire dia 3.0-5.0mm
    Size 1*1*1m
    2*1*1m
    3*1*1m
    4*1*1m
    5*1*1m
    Finish Hot dipped galvanized, galfan coated
    Hole

    50*50, 75*75, 100*100 etc





    RECTANGEL HOLE :

    Aperture(cm) Wire diameter(mm) Dimension of gabion box(m)
    5×7 2.4 0.5×0.5×1
    5×7 2.7 1×1×1
    5×10 3.5 1×1×2



     150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    2.Manufacture of Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania

      A. PREPARE RAW MATERIAL -Steel wire

         AS EXAMPLE : HUAYANG BRAND .( adopt China big factory , assure zinc coating is good and diameter is in exact )



        150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    B. Weavig Gabion Mesh Panel

        (we use best machine to weave , it assure the welded points is strong  and clean , and assure hole is more fixed )



       Below is our workshop:-Gabion mesh panel ready



      150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania



    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    C.  Prepare -Spirals & Stiffener/Hook ,etc  and start to install well :





                    SPIRALS                           Hooks /Stiffeners                        Mesh panel

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    D. Intall well of Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania



    Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
    Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
    Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
    Step 4. Gabion box is filled with graded stone by hand or with a shovel.
    Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
    Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    3.Packing of Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania

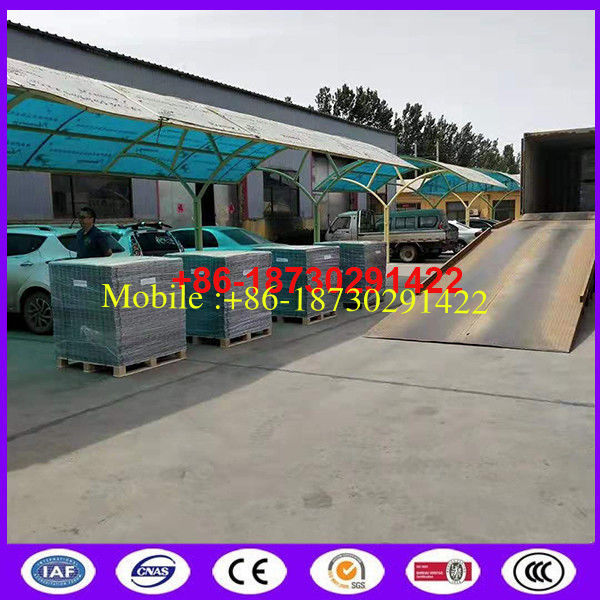

      -- Pallet or carton

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania



    4.Application of Rust Proof Galfan Coated Welded Stone Filled Gabions for Tanzania

    Control and guide of water or flood
    Flood bank or guiding bank
    Preventing of rock breaking
    Water and soil protection
    Bridge protection
    Strengthening structure of soil.
    Protection engineering of seaside area.



    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania



     For the shape , we can do as customer real need

    Example : we make S shape for our customer as below :

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania



    And we also do other gabion mesh :

    Example : hexagonal hole  & Hesco barrier

    150mmx150mm ,2x1x1.2m size Rust Proof Galfan Coated  Welded Stone Filled Gabions for  Tanzania
