Place of Origin: | Hebei,china |
Brand Name: | XKh |
Certification: | iso,ce |
Model Number: | Gabion box made in china |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Price based on quantity |
Packaging Details: | Bulk |
Delivery Time: | 7 days after confirm order |
Payment Terms: | L/C,TT |
Supply Ability: | 7 days /1 container |
Material: | Hot Dipped Galvaized Or Heavy Zic Coating Steel Wire , Or Galfan | Wire Gauge: | 2.0MM-2.2MM |
---|---|---|---|
Reinforced Wire Diameter: | 3.4mm | Hole Size: | 60*80mm,80*100mm ,etc |
Roll Size: | 4*30m ,2*30m , Etc | Application: | Asphalt Concrete Pavement |
Customerized: | Available |
Galvanized reinforced hexagonal mesh asphalt pavement subgrade
*Introduction *
Reinforced gabion mesh is an advanced products of double twisted woven gabion meshes, which are added parallel reinforced steel wires on every other meshes. It can increase the tensile strength and loading capacity of meshes significantly.
Roll size |
4m*30m /roll ,2m*30m/roll , ( other size is available ) |
Mesh opening |
60*80mm,80*100mm (other size is available ) |
Mesh wire diameter |
2.0mm-2.2mm (other size 2mm-4mm is available ) |
Reinforced wire diameter | 3.4mm |
Material (outdoor PH=7) |
Hot dipped Gal -(2-5 years lifetime ) heavy zinc coating (10-20 years life time ) , Zinc aluminum alloy wire is available also |
*Production *
*Packing *
Bulk packing or pallet .
*Application *
-Mainly for road pavement especially to save cost ,save time , save labor based on current old road to put alsphat to construct out new road .
*Advantage *
WHY WE CHOOSE IT ?
1. it solves the current old road : Pavement cracks & settlement etc ,low the possiblity of cracks to become big .
2. Improve the bending and tensile properties of pavement
3.Improve the service life of pavement
4.save time : example -before need 2 month , now only 4-5 days
5.save cost : Make full use of the old pavement, save the disposal of the old pavement, and the disposal of the excavation and overlay of the pavement base
6. Environmental : will not have project rubbish ,Metal mesh material can be recycled,following the principle of sustainable development
Our products On china TV :
Testing report :

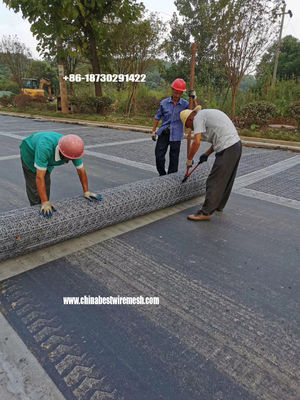

*Installing *
1.Dispose of the original damaged .pavement
2.spread out reinformed mesh
3. In order to combine the old road with the new road, we use3 nails/ square meter to fix the the mesh
4. spread emusfied asphalt
WELCOME YOUR INQUIRY IF YOU NEED OUR PRODUCT .
