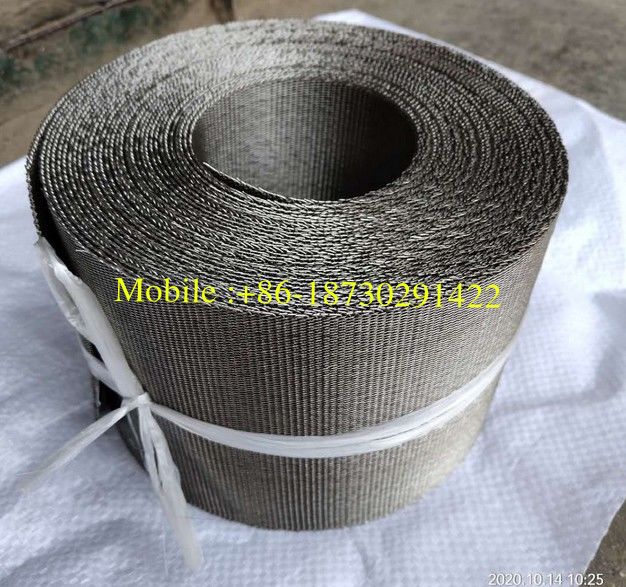

SS 302 130 MESH metal filter mesh band used in non stop Screen Changers

SS 302 130 MESH metal filter mesh band used in non stop Screen Changers

SS 302 130 MESH metal filter mesh band used in non stop Screen Changers

Product Details:

Place of Origin: Hebei,china
Brand Name: XKh
Certification: iso,ce
Model Number: continuous filter belt for scren changer in plastic extruder machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Price based on quantity
Packaging Details: film+waterproof paper , carton or wooden case is available
Delivery Time: ready sock in 3 days
Payment Terms: L/C,TT
Supply Ability: 10000rolls /month
Contact Now
Detailed Product Description
Name: Reverse Dutch Twill Weave Ribbon Style Mesh Filter Belt For Continuous Screen Changers Width: 97mm,127mm,130mm,150mm Etc
Length: 10m/roll ,15m/roll ,20m/roll ,etc MOQ: 1 Roll
Mesh: 72x15,152x24,132x17,260x40,, 160 Mesh , 130 Mesh ,160 Mesh , 200 Mesh , Etc Function: Belt Mesh Filter Belt Used In Non-stop Screen Changer
Fair Attend: China West Rubber And Plastic In CQ City Weaving Type: Twill /Plain Reverse Dutch Belt

SS 302 130 MESH metal filter mesh band used in non stop Screen Changers


According to local differences and usage are also known as: reverse dutch belt netting (also called Dutch/holland cloth)


Material: stainless steel iron wire is common ,like ss202 ,304,316 ,sometimes copper and nickel wire available ,also weave according to customer's request for special material

Weaving Type : Reverse Dutch
Specifications: General length of 10 meters/20meters long,
width :40mm-110mm,common width :97mm,120mm,127mm,130mm,150mm,etc
mesh :40 mesh -350 mesh, common mesh : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.also people call 100mesh,120mesh,130mesh,160mesh,180mesh,200mesh,etc

Uses: Applicable to the Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, casting film machine, coating machine filter. Domestic equipment: Lanfei 90 presses, Changzhou Hengli presses, Yantai presses, etc., are widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation industry. Plastic extruder with automatic belt filter, plastic melt filter, press belt filter. Products work fine, often with the filter equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.



SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers

SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers



Basic specifications



Mesh

Wire Dai.(mm)

Thickness(mm)

Width(cm)

45x15

0.45x0.6

 1.75

9.7-28

48X10

0.50X0.50

3.6kg/sq.m

9.7-28

72x15

0.45x0.55

1.7

9.7-28

90X17

0.23X0.55

2.48kg/sq.m

9.7-28

110X17

0.23X0.55

2.6kg/sq.m

9.7-28

110X21

0.23X0.35

2.0kg/sq.m

9.7-28

120x16

0.35x0.45

 1.36

9.7-28

132x17

0. 3x0.45

1.3

9.7-28

152x24

0.3x0.40

1.2

9.7-28

160x18

0.28x0.45

 1.27

8-85

200x40

0.15x0.27

0.7

8-130

260x40

0.15 x0.27

 0.65

8-130

300x40

0.15 x0.27

 0.65

8-130

360x40

0.13 x0.27

0.6

8-130

 Special specification we can produce according to customers' requirements.



A : Do you have stock or not ?



Yes , we have a lot of stock(  800rolls stock always )  ,fast delivery .



B:  Do you accept small order -1 roll ?



Yes, surely , 1 roll is no problem for us .



C : Do you offer free sample for our testing ?



Yes , we surely offer free sample for your quality confirmation .



metal filter mesh band used in non stop Screen Changers Features:

With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.



SS 302 130 MESH metal filter mesh band used in non stop Screen Changers



Edge of metal filter mesh band used in non stop Screen Changers



SS 302 130 MESH metal filter mesh band used in non stop Screen Changers



Applications of Ribbon Style Mesh Filter Belt For Continuous Screen Changers







SS 302 130 MESH metal filter mesh band used in non stop Screen Changers



Packing of metal filter mesh band used in non stop Screen Changers



Waterproof paper on each roll + carton / wooden case



SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers

SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers

Shipping  of metal filter mesh band used in non stop Screen Changers

 By sea or By Air - Express , No problem for us .

 Do you accept Paypal , west Union ?

  Yes It is ok for us ,No problem .





SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers



SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers

SS 302 130 MESH metal filter mesh band used in non stop Screen ChangersSS 302 130 MESH metal filter mesh band used in non stop Screen Changers
