Place of Origin: | Hebei,china |
Brand Name: | XKh |
Certification: | iso,ce |
Model Number: | continuous filter belt for scren changer in plastic extruder machine |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Price based on quantity |
Packaging Details: | film+waterproof paper , carton or wooden case is available |
Delivery Time: | ready sock in 3 days |
Payment Terms: | L/C,TT |
Supply Ability: | 10000rolls /month |
Name: | Continous Screen Changer Using Stainless Steel Conveyor Belt | Width: | 97mm,127mm,130mm,150mm Etc |
---|---|---|---|
Length: | 10m/roll ,15m/roll ,20m/roll ,etc | MOQ: | 1 Roll |
Mesh: | 72x15,152x24,132x17,260x40,, 160 Mesh , 130 Mesh ,160 Mesh , 200 Mesh , Etc | Function: | Belt Mesh Filter Belt Used In Non-stop Screen Changer |
Fair Attend: | China West Rubber And Plastic In CQ City | Weaving Type: | Twill /Plain Reverse Dutch Belt |

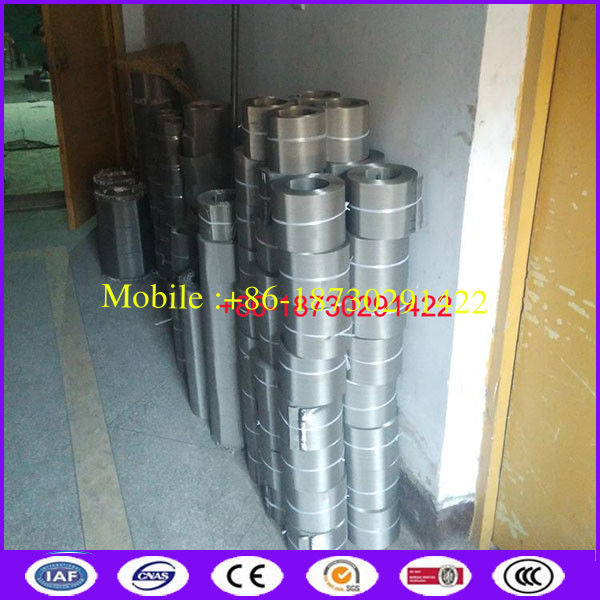

180mesh SS304 97mm 127mm 130mm 150mm belt filter mesh for screen changer
According to local differences and usage are also known as: reverse dutch belt netting (also called Dutch/holland cloth)
Material: stainless steel iron wire is common ,like ss202 ,304,316 ,sometimes copper and nickel wire available ,also weave according to customer's request for special material
Weaving Type : Reverse Dutch
Features: mesh smooth, high hardness, continuous network, no deformation, high temperature.
Specifications: General length of 10 meters/20meters long,
width :40mm-110mm,common width :97mm,120mm,127mm,130mm,150mm,etc
mesh :40 mesh -350 mesh, common mesh : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.also people call 100mesh,120mesh,130mesh,160mesh,180mesh,200mesh,etc
Uses: Applicable to the Austrian Lenzing equipment and Germany, Japan and other countries of the wire drawing machine, casting film machine, coating machine filter. Domestic equipment: Lanfei 90 presses, Changzhou Hengli presses, Yantai presses, etc., are widely used in such as plastic woven bags, plastic film, aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, research and transportation industry. Plastic extruder with automatic belt filter, plastic melt filter, press belt filter. Products work fine, often with the filter equipment exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
Basic specifications
Mesh |
Wire Dai.(mm) |
Thickness(mm) |
Width(cm) |
45x15 |
0.45x0.6 |
1.75 |
9.7-28 |
48X10 |
0.50X0.50 |
3.6kg/sq.m |
9.7-28 |
72x15 |
0.45x0.55 |
1.7 |
9.7-28 |
90X17 |
0.23X0.55 |
2.48kg/sq.m |
9.7-28 |
110X17 |
0.23X0.55 |
2.6kg/sq.m |
9.7-28 |
110X21 |
0.23X0.35 |
2.0kg/sq.m |
9.7-28 |
120x16 |
0.35x0.45 |
1.36 |
9.7-28 |
132x17 |
0. 3x0.45 |
1.3 |
9.7-28 |
152x24 |
0.3x0.40 |
1.2 |
9.7-28 |
160x18 |
0.28x0.45 |
1.27 |
8-85 |
200x40 |
0.15x0.27 |
0.7 |
8-130 |
260x40 |
0.15 x0.27 |
0.65 |
8-130 |
300x40 |
0.15 x0.27 |
0.65 |
8-130 |
360x40 |
0.13 x0.27 |
0.6 |
8-130 |
Special specification we can produce according to customers' requirements. |
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
SS302 Belt filter mesh for screen changer Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.
Edge of SS302 Belt filter mesh for screen changer:
Applications of SS302 Belt filter mesh for screen changer:
Packing of SS302 Belt filter mesh for screen changer:
Waterproof paper on each roll + carton / wooden case
Shipping of SS302 Belt filter mesh for screen changer:
By sea or By Air - Express , No problem for us .
Do you accept Paypal , west Union ?
Yes It is ok for us ,No problem .
