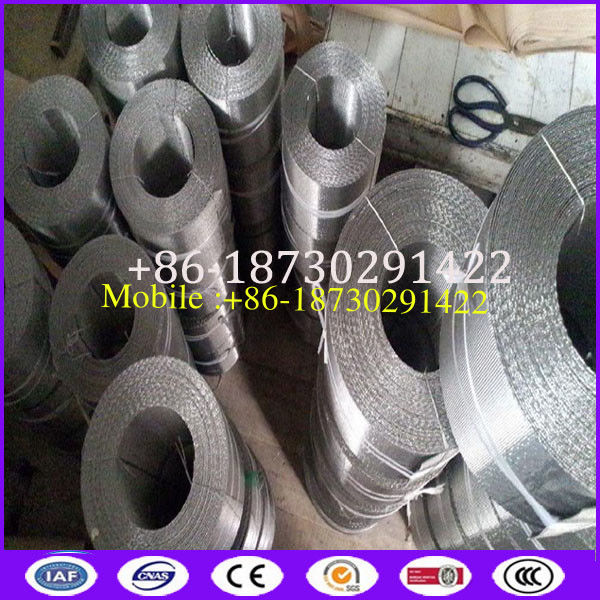

China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

    • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
    • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
    • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
    • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
    • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
  • China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

    Product Details:

    Place of Origin: China
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: continuous filter belt for scren changer in plastic extruder machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: film+waterproof paper , carton or wooden case is available
    Delivery Time: ready sock in 3 days
    Payment Terms: L/C,TT
    Supply Ability: 10000rolls /month
    Contact Now
    Detailed Product Description
    Name: Continous Screen Changer Using Stainless Steel Conveyor Belt Width: 97mm,127mm,130mm,150mm Etc
    Length: 10m/roll ,15m/roll ,20m/roll ,etc MOQ: 1 Roll
    Mesh: 175x45,152x24,132x17,260x40,, 160 Mesh , 130 Mesh ,160 Mesh , 200 Mesh , Etc Function: Belt Mesh Used In Non-stop Screen Changer
    Fair Attend: China West Rubber And Plastic In CQ City Weaving Type: Twill /Plain Reverse Dutch Belt

    China (260x40) 260/40 Mesh Reverse Dutch Filter Weave Wire Mesh,97-1200mm width

    we have different kind of mesh size : 260x40 ,152x24,72x15 ,,,, also 160 ,180 ,200 mesh

    Different kind of width size :97mm,127mm,130mm,150mm,160mm , etc

    Widely used in plastic production with wire drawing machine ,HIPS ,plastic unit sheet ,and pelletizing

    we have attend China West Rubber and plastic fair and Aisa filter mesh fair .



    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width



     NO.1:Mesh belt : 132x17 mesh, 152x24 mesh, 260x40 mesh, 72x15mesh.150x17 mesh.

    132x17mesh: 0.3x0.45mm,4.4kg/sqm.

    152x24mesh: 0.3x0.4mm. 3.5kg/sqm.

    260x40mesh: 0.15x0.27mm.2.1kg/sqm.

    72x15mesh: 0.45x0.55mm. 5kg/sqm.

    Width: 97mm, 100mm, 110mm, 120mm, 127mm, 130mm, 133mm, 150mm.

    Length: 10m , 20m / roll.



    Material: Stainless steel 304.

    Woven style: RDW woven. Reversed dutch woven .

    Used on the automatic screen changer, for filtering.

    NO.2:WE produce reversed dutch woven filter cloth ( RDW FILTER CLOTH ) for 1x30m / roll.

    RDW Filter cloth:

    130x30mesh, 0.2x0.4mm. 1x30m. 80kg/ roll.  SS316L.

    175x45mesh, 0.15x0.3mm, 1x30m.  58kg / roll. SS316L.

    290x70mesh, 0.09x0.2mm, 1x30m. 39kg / roll. SS316L.



    Custom designs are also available



    Basic specifications







    Mesh

    Wire Dai.(mm)

    Thickness(mm)

    Width(cm)

    45x15

    0.45x0.6

     1.75

    9.7-28

    48X10

    0.50X0.50

    3.6kg/sq.m

    9.7-28

    72x15

    0.45x0.55

    1.7

    9.7-28

    90X17

    0.23X0.55

    2.48kg/sq.m

    9.7-28

    110X17

    0.23X0.55

    2.6kg/sq.m

    9.7-28

    110X21

    0.23X0.35

    2.0kg/sq.m

    9.7-28

    120x16

    0.35x0.45

     1.36

    9.7-28

    132x17

    0. 3x0.45

    1.3

    9.7-28

    152x24

    0.3x0.40

    1.2

    9.7-28

    160x18

    0.28x0.45

     1.27

    8-85

    200x40

    0.15x0.27

    0.7

    8-130

    260x40

    0.15 x0.27

     0.65

    8-130

    300x40

    0.15 x0.27

     0.65

    8-130

    360x40

    0.13 x0.27

    0.6

    8-130

     Special specification we can produce according to customers' requirements.



    A : Do you have stock or not ?



    Yes , we have a lot of stock(  800rolls stock always )  ,fast delivery .



    B:  Do you accept small order -1 roll ?



    Yes, surely , 1 roll is no problem for us .



    C : Do you offer free sample for our testing ?



    Yes , we surely offer free sample for your quality confirmation .



    Automatic Screen changer screen belt Features:

    With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.



    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width



    Edge of Automatic Screen changer screen belt:



    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width



    Applications of Automatic Screen changer screen belt :







    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width



    Packing of Automatic Screen changer screen belt  :



    Waterproof paper on each roll + carton / wooden case



    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

    Shipping  of Automatic Screen changer screen belt :

     By sea or By Air - Express , No problem for us .

     Do you accept Paypal , west Union ?

      Yes It is ok for us ,No problem .





    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width



    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width

    China (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm widthChina (260x40) 260/40 Mesh Reverse Dutch Filter Weavig Wire Mesh,97-1200mm width
