    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: chain link fence in diamond hole for fence usage

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: wven bag or film in both end , pallet is available
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 1 contaier /5 days
    Contact Now
    Detailed Product Description
    Material: Q195 Low Carborn Steel Wire For Chain Link Fence Surface: Vinly Coating Diamond Mesh
    Hole Shape: Diaomond Mesh Hole Shape Hole Opening: 25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm
    Wire Diameter: 1.6mm-4mm Width: 0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m
    Length: 8m,10m,15m,20m,25m,30m,50m Appliaction: Diamond Link Mesh For Fence , Farm , Zoo ,warehouse



         Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence

    Chain link mesh for fencing, woven from steel wire, is probably the most widely used and versatile of all fencing fabrics, available in a variety of wire gauges and mesh sizes to suit specific applications.

    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence

    Specification

    Chain Link Fence      MATERIAL    Q195 LOW CARBORN STEEL

    Surface

    Electro galvanized,hot dipped galvanized,pvc coated

    Wire diameter

    1mm-5mm

    Opening

    30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm

    Height

    1m-5m

    Standard roll

    10m-50m/roll

    Selvage

    Twisted edge,knuckle edge

    Round post size

    25mm*1.2mm,32mm*1.5mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm

    Surface treatment

    Electro galvanized,hot dipped galvanized,PVC coated,galvanized +PVC coated

    Fittings

    Post cap,clip,tension bar,tension band,sleeve,barb wire arm etc.

    Finish of fittings

    Hot dipped galvanized,PVC coated

    Color

    Green,white,black,grey,etc.

    Note:

    1. For wire diameter 1mm, the minimum aperture is 10x10mm;

        For wire diameter 5mm, the minimum aperture is 55x55mm

    2. When wire diameter is more than 4mm, the wire should be redrawing wire, as it’s soften

    3. When wire diameter is more than 4mm, the wire should be redrawing wire, as it’s soften

    4. If the PVC thickness thinner than 1mm, it’s too thin to see the inner wire

        If the PVC thickness thicker than 1.5mm,it’s too thick to break.

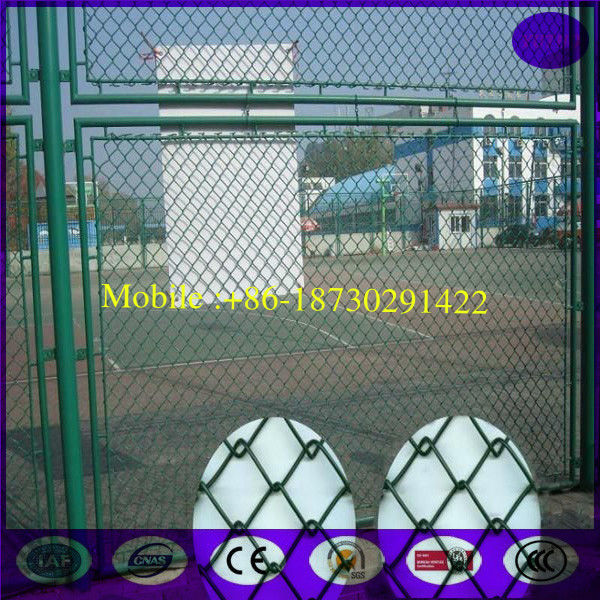

    Green  Vinyl Coated Diamond Mesh fence 's Edge and installing :



    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence

    Green  Vinyl Coated Diamond mesh fence  Uses:

    1) As fences for playground, gardens, super highway, railway, airport, residence, etc.

    2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.

    3) Link chain fence is also used in breeding of animals.



    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fenceChina supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence



    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fenceChina supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence



    These Green  Diamond mesh fence  was exported to Congo Customers.



    Package: In rolls, two ends withwoven bag:

    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence
     China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence



    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence



    Our Advantage for green vinly diamond mesh :



    1. Convenience and flexiblity for installation along the landscape.
    2. The low cost is good for mass usage.
    3. It provides a 15 year guarantee.
    4. The fence is a versatile and easily erected form of fencing.
    5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
    6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.

    China supply Heavy duty 6 feet galvanized vinyl coated or PVC coated chain link fence

    We are China Best Diamond mesh fence  manufacturer .



    Quality is our soul of company ,Yutuo People welcome you
