    Product Details:

    Place of Origin: China
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: chain link fence in diamond hole for fence usage

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: wven bag or film in both end , pallet is available
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 1 contaier /5 days
    Contact Now
    Detailed Product Description

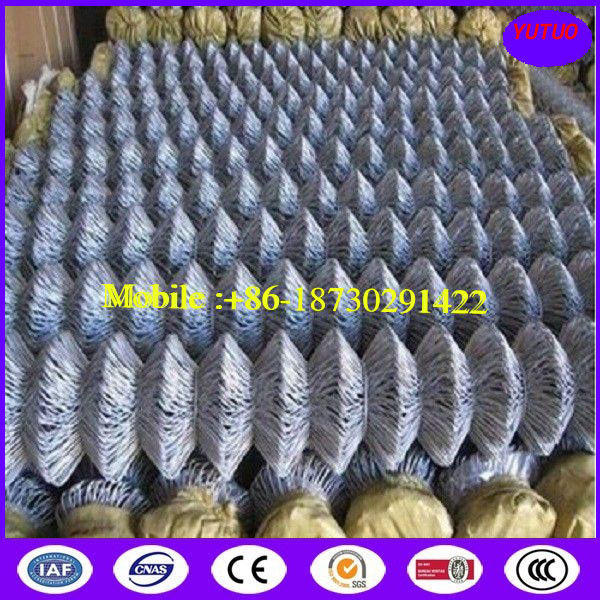

    Chain link fence is also named of diamond wire mesh.

    Material: Low carbon steel wire, stainless steel wire, aluminum alloy wire, PVC coated wire.

    Process: Select high-quality low-carbon steel wire rod, then make it into the appropriate thickness low-carbon steel wire with the drawing machine.

    Surface treatment: Make the low-carbon steel wire into PVC wire, electro galvanized wire, hot-DIP galvanized wire. About zinc thickness of the hot-DIP galvanized wire, we can make as the clients requirement.

    Weaving: Woven diamond pattern provides strong, durable and flexible construction. The closely spaced diamond mesh construction gives your fence linear strength and springy texture to protect horses from injury and prevent predators from entering paddocks and pastures.

    The edge of the chain link fence: It is divided into two types. One type is a hem one, the other is a twisted one. Using special tools to make the edge heming or twisting. The hemed edge is more popular compared with the twisted edge. Customers can choose according to their own needs

    Assortments: Chain link fence is simply a woven steel wire fence coated with zinc or PVC to prevent rust, commonly referred to as galvanized fence or PVC chain link fence.

    Application: Chain link fence is used as fencing for sports field, river banks, construction and residence, also animal fencing.

    Features: The diamond mesh wire construction is:
    Strong;
    Safe and flexible;
    Does not break;
    Does not sag or roll up at the bottom.

    Sizes of Chain Link Fence
    Opening 1" 1.5" 2" 2.25" 2.4" 2.5" 3" 4"
    25mm 40mm 50mm 55mm 60mm 65mm 76mm 100mm
    Wire diameter 18#-7#
    1.20mm-5.00mm
    Length of the roll 1.0m-50m
    Width of the roll 0.5m-5.0m

    Welcome to send more details to our company,
    I will try my best to give you best price and high quality.
    Mesh   Hot Dipped PVC Coated
      Wire BWG Wire Dia. (mm) Weight kg/m²   Roll Dia  4’ x50’ (mm) Wire Dia. before/after Weight kg/m²   Roll Dia  4’ x50’ (mm)
    1" (25mm) 12 2.8 3.87 15.5 220 2.6/3.2 3.7 22.7 280
      13 2.4 2.9 12.2 200 2.0/2.6 2.3 15.4 240
      14 2.1 2.3 9.75 180 1.4/2.0 1.2 8.5 220
      16 1.6 1.34 6.4 160 1.0/1.6 0.7 5.7 200
    1.5" (40mm) 10 3.4 3.7 14.6 280 3.4/4.0 3.9 23.7 290
      11 3.0 3 12.0 250 2.6/3.2 2.4 14.7 280
      12 2.8 2.4 10.0 230 2.0/2.6 1.4 9.4 240
      14 2.1 1.4 6.2 220 1.4/2.0 0.8 5.5 220
    2" (50mm) 8 4.2 4.5 18.4 280 3.4/4.0 3.2 19.6 280
      10 3.4 2.9 11.8 250 2.6/3.2 1.9 12.2 250
      12 2.8 1.9 8.0 230 2.0/2.6 1.2 8.4 230
      14 2.1 1.2 5.4 220 1.4/2.0 0.6 4.4 220
    2.25" (56mm) 8 4.2 3.9 14.8 290 3.4/4.0 2.8 17 280
      10 3.4 2.6 10.5 280 2.6/3.2 1.7 10.8 250
      12 2.8 1.7 7.3 250 2.0/2.6 1.0 7.1 230
      14 2.1 1.0 4.5 220 1.4/2.0 0.55 4.3 220
    2.4" (60mm) 8 4.2 3.7 14.3 290 3.4/4.0 2.6 16.4 290
      10 3.4 2.5 10.1 280 2.6/3.2 1.6 10.60 280
      12 2.8 1.63 6.8 250 2.0/2.6 1.0 6.60 250
      14 2.1 1.00 4.6 220 1.4/2.0 0.48 3.85 230
    2.5" (64mm) 8 4.2 3.5 14.8 290 3.4/4.0 2.5 15.4 300
      10 3.4 2.3 9.4 280 2.6/3.2 1.5 9.8 280
      12 2.8 1.6 6.5 250 2.0/2.6 0.9 6.5 250
      14 2.1 0.9 4.2 220 / / / /
    3" (76mm) 8 4.2 3.00 11.7 300 4.4/5.0 3.4 20.6 300
      10 3.4 2.00 8.2 290 3.4/4.0 2.1 13.0 290
      12 2.8 1.3 5.7 280 2.6/3.2 1.3 8.8 250
      14 2.1 0.8 3.8 250 / / /
