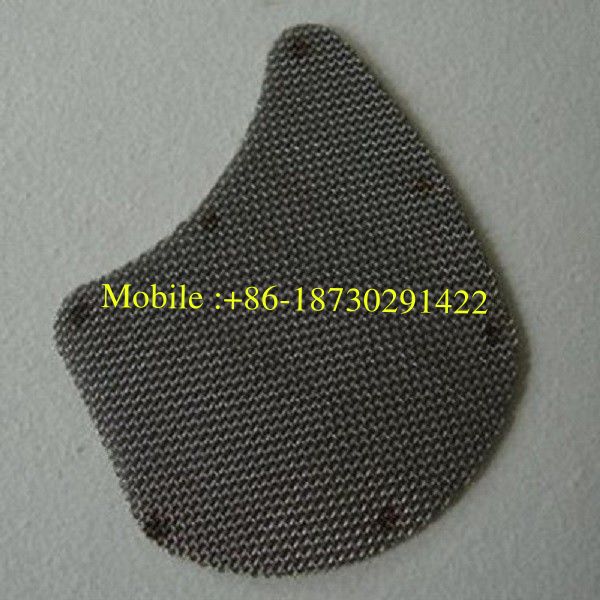

2015 Stainless Steel Filter ,Black cut wire mesh with spots

Home Products Wire Mesh Processed Products

2015 Stainless Steel Filter ,Black cut wire mesh with spots

Product Details:

Place of Origin:	Hebei,china
Brand Name:	XKh
Certification:	iso,ce

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Price based on quantity
Packaging Details:	Film , case
Delivery Time:	20 days
Payment Terms:	L/C,TT

Contact Now

Detailed Product Description

Weoffers metal wire mesh discs of various materials and sizes. Typical one is stainless steel wire woven mesh punched into circular filter. The weaving method is plain, twill, or plain Dutch and twill Dutch. Also supply welded multi-layer pack filter used in rubber industry, plastic industry, and oil industry and cereal sifter.
The main materials for pack filter include S. S. Woven wire cloth, S. S. Sintered web, phosphate bronze cloth and brass wire cloth etc. It is divided into round, rectangle, hoop and ellipse etc, according to the outline.
The frame can be S. S., aluminum and nickel copper and the filter can be single layer and multi-layer, Above all depends on the requirement of our customers.
Mainly for the filtration of air, the medium cleaning and flow control of lubrication oil, fuel oil. Hydraulic pressure and air pressure system. Any outline size and filtration rating available as the requirements of the customer.
Specifications are as the followings:
Wire mesh filter disc
Disc diameter: From 5mm to 600mm
Fineness: From 1mesh to 2800mesh
2015 Stainless Steel Filter ,Black cut wire mesh with spots

Specification of Stainless steel filter mesh screen
Mesh	Wire Dia. (MM)	Opening (MM)	Material (AISI)
7	1.00	2.63	304 or 316
10	0.60	1.94	304 or 316
12	0.50	1.62	304 or 316
16	0.40	1.19	304 or 316
16	0.35	1.24	304 or 316
18	0.35	1.06	304 or 316
20	0.40	0.87	304 or 316
24	0.26	0.80	304 or 316
30	0.30	0.55	304 or 316
35	0.17	0.56	304 or 316
40	0.23	0.40	304 or 316
50	0.20	0.31	304 or 316
60	0.15	0.27	304 or 316
70	0.12	0.24	304 or 316
80	0.13	0.19	304 or 316
90	0.12	0.16	304 or 316
100	0.10	0.15	304 or 316
120	0.09	0.12	304 or 316
150	0.063	0.11	304 or 316
180	0.053	0.09	304 or 316
200	0.053	0.07	304 or 316
220	0.05	0.065	304 or 316
250	0.04	0.062	304 or 316
270	0.035
