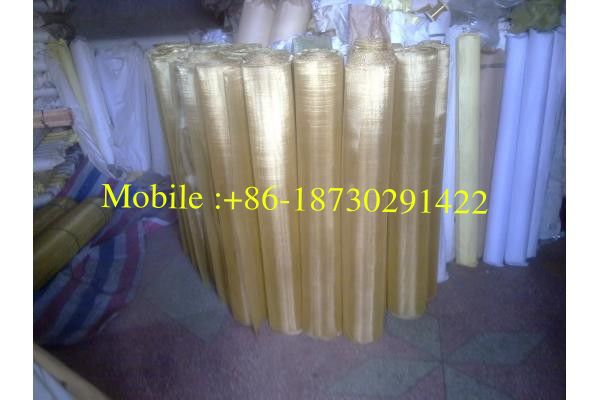

Brass Wire Mesh Brief Introduction:
Material: brass wire, red copper wire, phosphor bronze wire.
Standard roll wirdth: 0.6-1.5m
Standard roll length: 30m
Mesh size: 8-300mesh
Wire Diameter: 0.08-3mm
Weaving method: plain weave, twill weave, Dutch weave, crimped wire mesh
Brass Wire Mesh Character:
As the alloy of copper and zinc, Brass Wire Mesh has excellent abrasion resistance, corrosion-resisting, lower electric conductivity as compared with copper.
Brass Wire Mesh Application:
Brass wire mesh: Brass wire mesh is widely used in sieving various pelle, powder, porcelain clay and glass, chinaware printing, filtering liquid and gas,
Copper wire mesh: Copper wire offers excellent electrical and thermal conductivity. It is non-magnetic, anti-sparking and is resistant to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.
Phosphor bronze wire mesh: Phosphor bronze is an alloy of Tin, phosphorus and Copper. It is corrosion-resisting, wear-resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.
Brass Wire Mesh Specification:
|
mesh
|
wire (MM)
|
aperture(MM)
|
|
SWG
|
mm
|
inch
|
|
6
|
22
|
0.711
|
0.028
|
3.522
|
|
8
|
23
|
0.610
|
0.024
|
2.565
|
|
10
|
25
|
0.508
|
0.020
|
2.032
|
|
12
|
26
|
0.457
|
0.018
|
1.660
|
|
14
|
27
|
0.417
|
0.016
|
1.397
|
|
16
|
29
|
0.345
|
0.014
|
1.243
|
|
18
|
30
|
0.315
|
0.012
|
1.096
|
|
20
|
30
|
0.315
|
0.0124
|
0.955
|
|
22
|
30
|
0.315
|
0.0124
|
0.840
|
|
24
|
30
|
0.315
|
0.0124
|
0.743
|
|
26
|
31
|
0.295
|
0.0116
|
0.682
|
|
28
|
31
|
0.295
|
0.0116
|
0.612
|
|
30
|
32
|
0.247
|
0.011
|
0.573
|
|
32
|
33
|
0.254
|
0.010
|
0.540
|
|
34
|
34
|
0.234
|
0.0092
|
0.513
|
|
36
|
34
|
0.234
|
0.0092
|
0.472
|
|
38
|
35
|
0.213
|
0.0084
|
0.455
|
|
40
|
36
|
0.193
|
0.0076
|
0.442
|
|
42
|
36
|
0.193
|
0.0076
|
0.412
|
|
44
|
37
|
0.173
|
0.0068
|
0.404
|
|
46
|
37
|
0.173
|
0.0068
|
0.379
|
|
48
|
37
|
0.173
|
0.0068
|
0.356
|
|
50
|
37
|
0.173
|
0.0068
|
0.335
|
|
60X50
|
36
|
0.0076
|
0.0076
|
-
|
|
60X50
|
37
|
0.0068
|
0.0068
|
-
|
|
60
|
37
|
0.0068
|
0.0068
|
0.250
|
|
70
|
39
|
0.132
|
0.0052
|
0.231
|
|
80
|
40
|
0.122
|
0.0048
|
0.196
|
|
90
|
41
|
0.112
|
0.0044
|
0.170
|
|
100
|
42
|
0.012
|
0.004
|
0.152
|
|
120X108
|
43
|
0.091
|
0.0036
|
-
|
|
120
|
44
|
0.081
|
0.3200
|
0.131
|
|
140
|
46
|
0.061
|
0.0024
|
0.120
|
|
150
|
46
|
0.061
|
0.0024
|
0.108
|
|
160
|
46
|
0.061
|
0.0024
|
0.098
|
|
180
|
47
|
0.051
|
0.002
|
0.090
|
|
200
|
47
|
0.051
|
0.002
|
0.076
|
|
250
|
48
|
0.041
|
0.0016
|
0.061
|
|
300
|
49
|
0.031
|
0.0012
|
0.054
|
|
325
|
49
|
0.031
|
0.0012
|
0.047
|
|
350
|
49
|
0.031
|
0.0012
|
0.042
|
|
400
|
49
|
0.031
|
0.0012
|
0.033
|
