16 Mesh Copper .011" Wire Diameter Meets ASTM E2016-15 for RF shielding cage
1.Introduction of 16 Mesh Copper .011" Wire Diameter in Roll
copper wire mesh is most pure and also best choice for shielding purpose than Brass Wire Mesh & Bronze Wire Mesh
Why ? Material T2 : copper content upto 99.9%
| Cu |
O |
As |
Sn |
Zn |
Pb |
P |
Fe |
Sb |
Bi |
| ≥99.95% |
≤0.002% |
≤0.002% |
≤0.002% |
≤0.005% |
≤0.005% |
≤0.002% |
≤0.004% |
≤0.002% |
≤0.002% |
16 mesh 0.011"(0.2794+-0.02mm) -Technical Datas -
| Item |
U.S. |
Metric |
| MESH SIZE |
16 per in |
16 per 2.54 cm |
| WIRE DIAMETER |
0.0110 in |
0.2794 mm |
| OPENING |
0.0510 in |
1.2954 mm |
| OPENING MICRONS |
1308 |
1308 |
| OPENING % |
67 % |
67 % |
| OVERALL THICKNESS |
0.022 in |
0.5588 mm |
| Weave Type |
PLAIN WEAVE (PL) |
| SURFACE -1 |
WITHOUT |
| SURFACE -2 |
TRNSPARENT SPARYING LIKE CAR |
| BY HIGHUI /ALISA 008618730291422 |
Other SPecification of Copper Wire Mesh : -WE HAVE LARGE STOCK FOR WHOLE SIZE
| |
|
|
|
| Mesh |
Wire Diameter |
Width of Opening |
Weave Type |
| (inch) |
(inch) |
| |
|
| 6 |
0.063 |
0.104 |
PLAIN |
| 6 |
0.047 |
0.120 |
PLAIN |
| 6 |
0.041 |
0.126 |
PLAIN |
| 6 |
0.035 |
0.132 |
PLAIN |
| 6 |
0.032 |
0.135 |
PLAIN |
| 6 |
0.028 |
0.139 |
PLAIN |
| 6 |
0.020 |
0.147 |
PLAIN |
| 7 |
0.041 |
0.102 |
PLAIN |
| 8 |
0.047 |
0.078 |
PLAIN |
| 8 |
0.041 |
0.084 |
PLAIN |
| 8 |
0.032 |
0.093 |
PLAIN |
| 8 |
0.028 |
0.097 |
PLAIN |
| 8 |
0.025 |
0.100 |
PLAIN |
| 8 |
0.017 |
0.108 |
PLAIN |
| |
|
|
|
| 10 |
0.035 |
0.065 |
PLAIN |
| 10 |
0.032 |
0.068 |
PLAIN |
| 10 |
0.025 |
0.075 |
PLAIN |
| 10 |
0.020 |
0.080 |
PLAIN |
| 10 |
0.018 |
0.082 |
PLAIN |
| 10 |
0.017 |
0.083 |
PLAIN |
| 12 |
0.032 |
0.0513 |
PLAIN |
| 12 |
0.028 |
0.0553 |
PLAIN |
| 12 |
0.023 |
0.0603 |
PLAIN |
| 12 |
0.020 |
0.0633 |
PLAIN |
| 12 |
0.018 |
0.0653 |
PLAIN |
| 14 |
0.025 |
0.0464 |
PLAIN |
| 14 |
0.023 |
0.0484 |
PLAIN |
| 14 |
0.020 |
0.0514 |
PLAIN |
| 14 |
0.017 |
0.0544 |
PLAIN |
| 14 |
0.010 |
0.0619 |
PLAIN |
| 16 |
0.028 |
0.0345 |
PLAIN |
| 16 |
0.025 |
0.0375 |
PLAIN |
| 16 |
0.023 |
0.0395 |
PLAIN |
| 16 |
0.020 |
0.0425 |
PLAIN |
| 16 |
0.018 |
0.0445 |
PLAIN |
| 16 |
0.016 |
0.0465 |
PLAIN |
| 16 |
0.015 |
0.0475 |
PLAIN |
| 16 |
0.013 |
0.0495 |
PLAIN |
| 16 |
0.011 |
0.0515 |
PLAIN |
| 18 |
0.023 |
0.0326 |
PLAIN |
| 18 |
0.020 |
0.0356 |
PLAIN |
| 18 |
0.018 |
0.0376 |
PLAIN |
| 18 |
0.017 |
0.0386 |
PLAIN |
| 18 |
0.015 |
0.0406 |
PLAIN |
| 18 |
0.011 |
0.0446 |
PLAIN |
| 18 |
0.010 |
0.0456 |
PLAIN |
| 20 |
0.020 |
0.0300 |
PLAIN |
| 20 |
0.018 |
0.0320 |
PLAIN |
| 20 |
0.016 |
0.0340 |
PLAIN |
| 20 |
0.014 |
0.0360 |
PLAIN |
| 20 |
0.013 |
0.0370 |
PLAIN |
| 20 |
0.010 |
0.0400 |
PLAIN |
| 22 |
0.015 |
0.0305 |
PLAIN |
| 24 |
0.018 |
0.0237 |
PLAIN |
| 24 |
0.014 |
0.0277 |
PLAIN |
| 24 |
0.0075 |
0.0342 |
PLAIN |
| 30 |
0.013 |
0.0203 |
PLAIN |
| 30 |
0.012 |
0.0213 |
PLAIN |
| 30 |
0.011 |
0.0223 |
PLAIN |
| 30 |
0.010 |
0.0233 |
PLAIN |
| 35 |
0.010 |
0.0186 |
PLAIN |
| 40 |
0.010 |
0.0150 |
PLAIN |
| 40 |
0.0085 |
0.0165 |
PLAIN |
| 40 |
0.0075 |
0.0175 |
PLAIN |
| 50 |
0.009 |
0.011 |
PLAIN |
| 50 |
0.008 |
0.012 |
PLAIN |
| 50 |
0.0075 |
0.013 |
PLAIN |
| 60 |
0.0075 |
0.0092 |
PLAIN |
| 60 |
0.0065 |
0.0102 |
PLAIN |
| 70 |
0.0065 |
0.0078 |
PLAIN |
| 80 |
0.0055 |
0.0070 |
PLAIN |
| 80 |
0.005 |
0.0075 |
PLAIN |
| 90 |
0.005 |
0.0061 |
PLAIN |
| 100 |
0.0012 |
0.0088 |
PLAIN |
| 100 |
0.0022 |
0.007 |
PLAIN |
| 100 |
0.0045 |
0.0055 |
PLAIN |
| 100 |
0.0040 |
0.0060 |
PLAIN |
| 100 |
0.0035 |
0.0065 |
PLAIN |
| 145 |
0.0022 |
0.004 |
PLAIN |
| 150 |
0.0026 |
0.0074 |
PLAIN |
| 200 |
0.0021 |
0.0029 |
PLAIN |
2.Feature of 16 Mesh Copper .011" Wire Diameter in Roll will decide the advantage & Usage :
- Meets ASTM E2016-15
- no magnetism,
- poor ductility,
- wear resistance,
- fast heat transfer,
- good conductivity,
- sound insulation,
- filtered electron beam
3.USAGE of 16 Mesh Copper .011" Wire Diameter in Roll
- This item is very popular for RFI shielding applications( faraday cage )
- It is installed behind sheet rock
- This material is also used for window screen and Faraday cages
- Used in filter as media
- elctronic -Since the mesh is flimsy, it can be cut with scissors
- Decorative
Shield cage - porcelain clay, glass, wall sound insulation, glass layer shielding electromagnetic shielding, signal shielding, electronic display screen, TV station, radio communication
Shield home - Protect privacy
Decorative -for house & jewelry
Filter - (in filter disc , or we cut it in strip , the strip narrowest is 5mm )
We also do Farady cage :
4.Manufacture of 16 Mesh Copper .011" Wire Diameter in Roll
4.Packing of 16 Mesh Copper .011" Wire Diameter in Roll
Standard : Paper core + waterproof paper + wooden case
Customerized is available

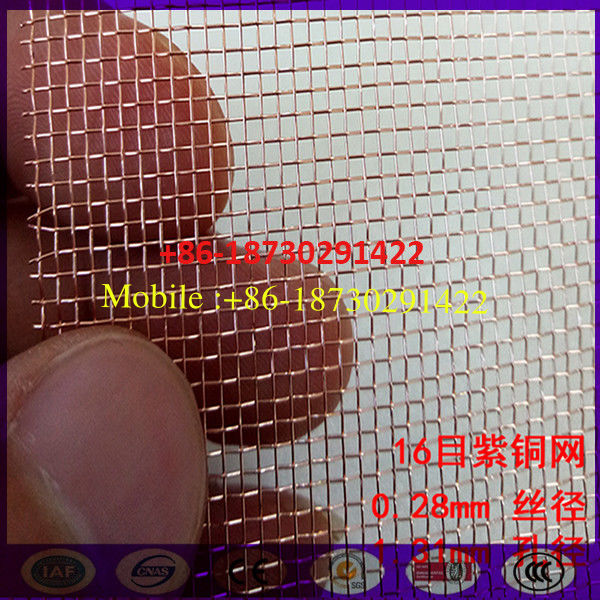

6.Picture show of 16 Mesh Copper .011" Wire Diameter in Roll
