9 Gauge Hot Dipped Galvanized Chain Link Fence , Diamond Wire Mesh For Garden

Product Details:

Place of Origin:	Hebei,china
Brand Name:	XKh
Certification:	iso,ce
Model Number:	chain link fence fabric

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiate
Packaging Details:	plastic film or woven bag wrap on both end , or as per request
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T
Supply Ability:	10000m2/ week

Contact Now

Detailed Product Description

Material:	9 Gauge Hot Dipped Galvanized Chain Link Fence, Diamond Wire Mesh For Garden	Wire Diameter:	1.8mm-5.5mm (eg.1.8mm,2mm,2.2mm,2.5mm,2.8mm,2.9mm,3mm,4mm,5mm, Etc )
Aperture (clear Distance ):	30mm-100mm(30mm,50mm,60mm,80mm,etc )	Width:	Upto 6m
Length:	Customerized (eg , 10m,20m ,30m ) - Not Too Heavy , Easy To Take	Edge:	Knuckle Or Twist Or Flat (generally We Choose Kuckle Or Twist , Becuse It Will Assure The Wire Is Not Loose )
Surface Treatment:	Galvanized Or Vinly Coating(PVC) In Different Color (eg. Black,grass Green , Dark Green ,blue ,yellow , And Other RAL Color )	Application:	Keep Out Keep Out Trespassers And Protect Properties And Pulic Isolate
MOQ:	1 M2
High Light:	9 Gauge Black Chain Link Fence , Diamond 9 gauge chain link fence , Galvanized 9 gauge chain link fence

9 Gauge Hot Dipped Galvanized Chain Link Fence, Diamond Wire Mesh For Garden

Descriptions :

Chain link mesh for fencing, is also called diamond wire mesh ,woven from steel wire, is probably the most widely used and versatile of all fencing fabrics, available in a variety of wire gauges and mesh sizes to suit specific applications.Available in three finishes,galvanised, PVC coated with a galvanized wire core or stainless steel wire .Chain link fence is recommended for use for House Garden fronts and divisions, Children's Playgrounds, Playing Fields, Recreational Grounds

Quick details :

Material : Low carbon steel wire ( electric galvanized & hot dipped/heavy zinc galvanized, vinly /pvc coating ) ,stainless steel wire ,Aluminum alloy wire ,zinc -Al wire etc

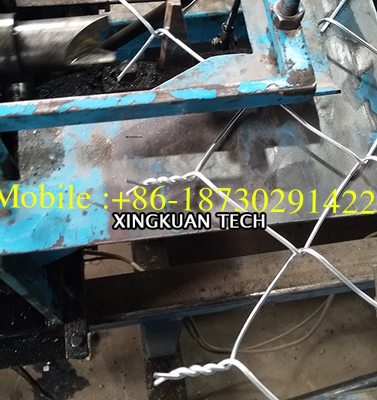

Process : fully automatic weaving machine .
Wire diameter : 1.8mm-5.5mm
Aperture : 30mm-100mm(30mm,50mm,60mm,80mm,etc )
Width : upto 6m
Length : customerized

9 Gauge Hot Dipped Galvanized Chain Link Fence , Diamond Wire Mesh For Garden

Surface treatment	Min	Max
Electro Galvanized	15g/m2	25g/ m2
Hot dip galvanized	30/ m2	366g/m2
PVC/PE Coated	400microns	1000microns

Opening	1"	1.5"	2"	2-1/4"	2-3/8"	2-1/2"	2-5/8"	3"	4"
Wire Diameter	25mm	40mm	50mm	57mm	60mm	64mm	67mm	75mm	100mm
	18Ga-13Ga	16Ga-8Ga						18Ga-7Ga
	1.2-2.4mm	1.6mm-4.2mm						2.0mm-5.0mm
Length of Roll	0.5m-100m(or more)
Width of Roll	0.5m-5m
Material and specification can be made according to customers' detailed requirements

Applications :

Privacy , garden , wasteland ,sprot court
Industrial Facilities (Storage ,Factory, Bases and warehouses)
Roadside (Villas ,parks gardens,school )
Water-saving and environmental protection enterprises
Nuclear power stations, and power plants, gas supply and distribution facilities
National defense facilities, ministry of interior and prisons
Mining areas and border areas.
Small hole like 10mm can be used in many decoratic public place

9 Gauge Hot Dipped Galvanized Chain Link Fence , Diamond Wire Mesh For Garden

Notice :

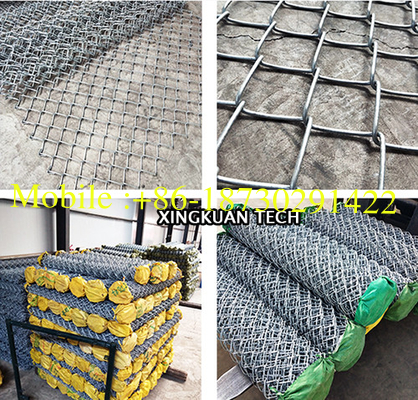

Packing : Plastic film or woven bag wrap both ends for each roll , several rolls on pallet or bulk way or as per request ,we will offer suggestion for loading to save space
Delivery time: very fast shipment , normally 7-10 days for 1x20 feet container .
Installation : very flexible , you can use post , or frame , gate , we also can supply accordingly .
Please show your detailed request , if without , just tell the usage , we would like to implement a solution to you
If possible, please offer these : wire diameter , aperture , width , length and edge , also quantity .
