Wedge wire screen sand filter nozzle Made in china

Wedge wire screen sand filter nozzle Made in china

    • Wedge wire screen sand filter nozzle Made in china
    • Wedge wire screen sand filter nozzle Made in china
    • Wedge wire screen sand filter nozzle Made in china
    • Wedge wire screen sand filter nozzle Made in china
    • Wedge wire screen sand filter nozzle Made in china
    • Wedge wire screen sand filter nozzle Made in china

    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: Filter Nozzle

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: plastic film and then in carton, or as the customer's requirements
    Payment Terms: L/C,TT
    Supply Ability: 5000 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Item: Filter Nozzle Material: Stainless Steel 304,316,316L, Or As Your Request
    Type: Single Velocity, Double , Fast Loading, Long Hand Slot: 0.2mm-0.5mm
    Diameter: 45mm 55mm 65mm, Etc. Application: Liquid Filter, Water-treatment , Water Well Drilling ,oil Well Drilling, Etc.

                      Wedge wire screen sand filter nozzle Made in china



    Introduction :

    Material: stainless steel304,316L, alloy steel.

    Slot size: 0.18–0.5 mm.

    Type: single wedge wire nozzle, double wedge wire nozzle.



    Wedge wire screen sand filter nozzle Made in chinaWedge wire screen sand filter nozzle Made in china

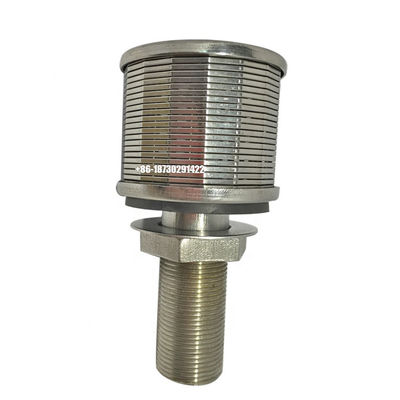

                                                            Single wedge wire nozzle

     Wedge wire screen sand filter nozzle Made in chinaWedge wire screen sand filter nozzle Made in china

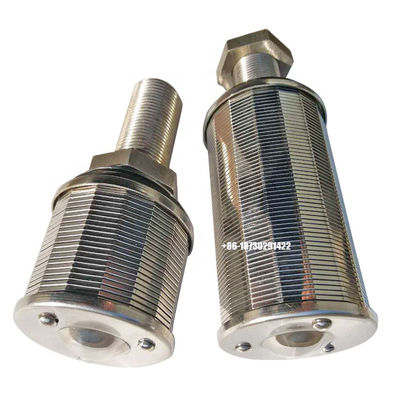

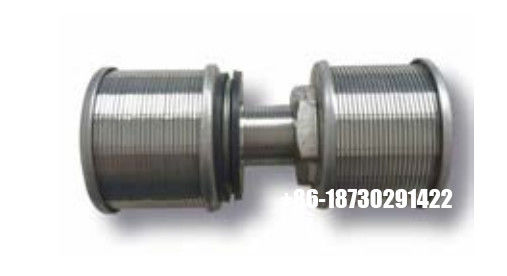

                                                              Double wedge wire nozzle

    Wedge wire screen sand filter nozzle Made in china



    Table 1: Specification of Single Wedge Wire Nozzle



    Item D
    (mm)     		H
    (mm)    		 L
    (mm)    		 Slot Size
    (mm)     		Flow Area
    (mm)
    XKH-01 45 30 180 0.18-0.5 380-493
    XKH-02 45 40 190 0.18-0.5 551-690
    XKH-03 53 40 190 0.18-0.5 453-597
    XKH-04 53 50 200 0.18-0.5 680-710
    XKH-05 53 40 235 0.18-0.5 800-920
    XKH-06 57 40 190 0.18-0.5 560-670
    XKH-07 57 50 200 0.18-0.5 780-905



    Table 2: Specification of Double Wedge Wire Nozzle



    Item D
    (mm)    		 L
    (mm)    		 H1
    (mm)    		 H2
    (mm)    		 Slot Size
    (mm)    		 Flow Area
    (mm)
    XKH-01 45 110-170 34 34 0.18-0.5 380-493
    XKH-02 45 110-170 44 44 0.18-0.5 551-690
    XKH-03 53 120-180 34 34 0.18-0.5 453-597
    XKH-04 53 120-180 44 44 0.18-0.5 680-710
    XKH-05 57 120-180 50 50 0.18-0.5 800-1000
    XKH-06 60 120-180 50 50 0.18-0.5 950-1188
