    Product Details:

    Place of Origin: china factory
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: Gabion box made in china

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: Bulk
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 7 days /1 container
    Contact Now
    Detailed Product Description
    Material: Steel Wire Surface Treatment: Hot Dip Galvanized,Heavy Zinc Coating ,zinc-alu Alloy Coated(Galfan)
    Mesh Size: 80X100-120X150MM Application: Gabion
    Hole Shape: Hexagonal Packing: Packed With Plastic Film Then On The Pallets Or Bulk

                                          High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance



    OUR ADVANTAGE :we can do customerized welded gabion for beautify our life and landscape



    1.Introduction of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

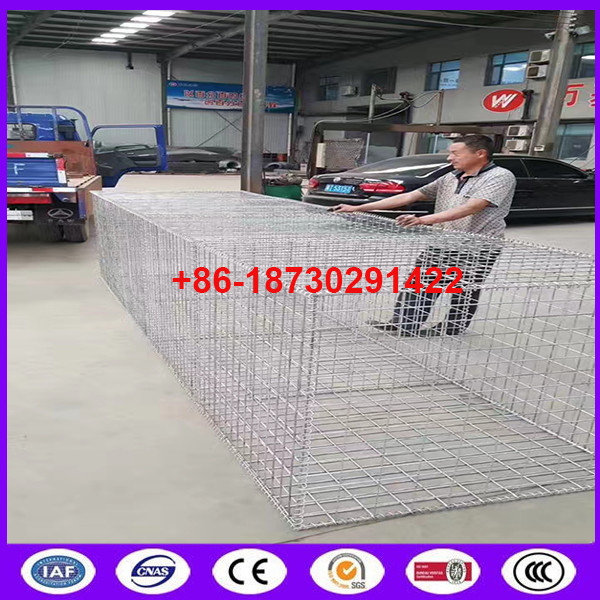

     EXAMPLE SIZE :Gabion Box Size: 2.00 x 1.00 x 1.00m

                                  Mesh Openings : 200mm x 200mm
                                   Wire diameter: 6mm

    Material  Steel Wire
    Surface Treatment Zinc Coated Welded Gabion(Common hot dipped galvanized or Heavy zinc coating )
    PVC Coated Welded Gabion
    Zinc aluminum alloy Coated Welded Gabion(5% aluminum or 10% aluminum)
    ASTM Standard ASTM A 856
    ASTM A 641



    Kindly note :

    Size: based on customer need

    (Below Box Size is just as reference , we can make it according to your last need ,as example : 2Meter x 1.5Meter X0.15Mtr )

    Hole size : 50x50mm,75x75mm,50x100mm,100x100 mm etc

    ( below mesh size is just as reference we can make it according to your last need ,as example : 70X70mm

    Connect way :Spiral wire,U clip,C ring,lacing wire,hook







     High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    2.Manufacture of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance

      A. PREPARE RAW MATERIAL -Steel wire

         AS EXAMPLE : HUAYANG BRAND .( adopt China big factory , assure zinc coating is good and diameter is in exact )



        High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keepingHigh Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    B. Weavig Gabion Mesh Panel

        (we use best machine to weave , it assure the welded points is strong  and clean , and assure hole is more fixed )



       Below is our workshop:-Gabion mesh panel ready



      High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping



    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    C.  Prepare -Spirals & Stiffener/Hook ,etc  and start to install well :





                    SPIRALS                           Hooks /Stiffeners                        Mesh panel

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    D. Intall well of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance



    Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
    Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
    Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
    Step 4. Gabion box is filled with graded stone by hand or with a shovel.
    Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
    Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    3.Packing of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance



      -- Pallet or carton

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping



    4.Application of High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance



    Control and guide of water or flood
    Flood bank or guiding bank
    Preventing of rock breaking
    Water and soil protection
    Bridge protection
    Strengthening structure of soil.
    Protection engineering of seaside area.



    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping



     For the shape , we can do as customer real need

    Example : we make S shape for our customer as below :

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keepingHigh Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping



    And we also do other gabion mesh :

    Example : hexagonal hole  & Hesco barrier

    High Tensile Galvanized Steel Wire Welded Gabion Box Wear And Abrasion Resistance for stone keeping
