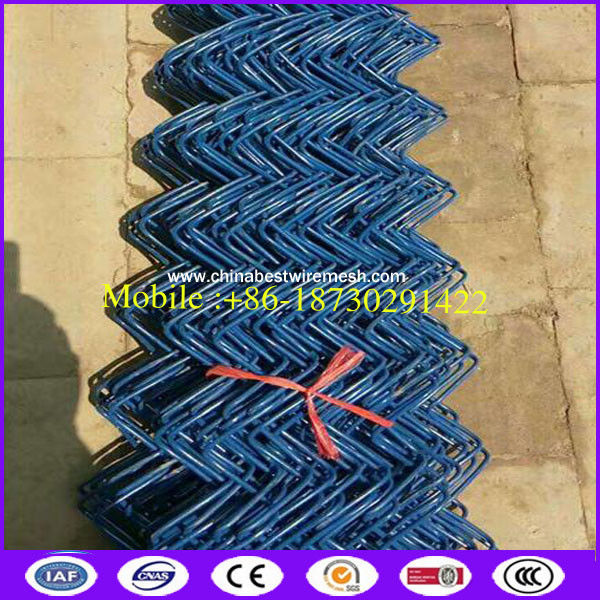

Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    • Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence
    • Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence
    • Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence
  • Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    Product Details:

    Place of Origin: Hebei,china
    Brand Name: XKh
    Certification: iso,ce
    Model Number: chain link fence in diamond hole for fence usage

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: wven bag or film in both end , pallet is available
    Delivery Time: 7 days after confirm order
    Payment Terms: L/C,TT
    Supply Ability: 1 contaier /5 days
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel Wire, Galvanized Iron Wire Surface: Electro Galvanized / Hot Dipped Galvanized
    Hole Shape: Diaomond Hole Opening: 25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm
    Wire Diameter: 1.6mm-4mm(2.5mm, 3.05mm, 3.76mm, 4.88mm) Width: 0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m
    Length: 8m,10m,15m,20m,25m,30m,50m Appliaction: Fence , Farm , Zoo ,warehouse
    Type: Chain Link Mesh Packing: Wrapped With PP Bags At Both Ends(palletized Optional)

    Blue Color PVC/PE Coated 9gauge wire decorative chain link fence with Height 1200mm

           Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link FenceBlue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link FenceBlue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link FenceBlue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    Galvanzied chain link fence         PVC coat chain link fenc           Stainless steel chain Link Fence



    CHOOSING THE BEST TYPE :

    The main considerations are the height of the fence, the thickness of the wire, and the finish of the wire.



    Height-( 0.5m-6m)

    Chain link norammly is from 3 feet the 12 feet high, the highest being generally used for surround

    sports areas where it is important to prevent balls escaping. Lower chain link fences for use around homes,can be fitted with privacy slats,airport ,swiming pool ,redidents , home , hotel ,airport ,etc



    Thickness of wire(1.5-5.0mm)

    The thickness of the wire for chain link can be quite confusing. Manufacturers will usually refer to the

    thickness of the wire being a certain 'gauge', for example 11 or 12 gauge. Oddly, the higher the number of thegauge, the thinner the wire. Thus, 11 gauge corresponds to a thickness of 0.120 inches, and a 12 gauge corresponds to a thickness of only 0.105 inches. Although gauges can vary between 6 and 14, the most common gauges for chain link fencing are 11, 11.5 and 12 gauge.



    Finishes

    1.Galvanized

       Hot dipped galvanized : (Min) 30g/m2 , (Max) 366g/ m2

       Electro Galvanized : (Min) 15g/m2 , (Max) 25g/ m2

    2.PVC coating

    3.Stainless Steel



    Dimension of Galvanized Chian Link
    Mesh Wire Diameter Width Length
    40mmx40mm 1.8mm--3.0mm 0.5m--4.0m 5m-25m
    50mmx50mm 1.8mm--3.5mm 0.5m--4.0m 5m-25m
    60mmx60mm 1.8mm--4.0mm 0.5m--4.0m 5m-25m
    80mmx80mm 2.5mm--4.0mm 0.5m--4.0m 5m-25m
    100mmx100mm 2.5mm--4.0mm 0.5m--4.0m 5m-25m



    Dimension of PVC Coated Chian Link Mesh
    Mesh Wire Diameter Width Length
    40mmx40mm 2.8mm--3.8mm 0.5m--4.0m 5m-25m
    50mmx50mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
    60mmx60mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
    80mmx80mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m
    100mmx100mm 3.0mm--5.0mm 0.5m--4.0m 5m-25m



    surface treatment :

    Surface treatment Min Max
    Electro Galvanized 15g/m2 25g/ m2
    Hot dip galvanized 30/ m2 366g/m2
    PVC/PE Coated 400microns 1000microns



    Chain Link Fence 's Edge :Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb);



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence









    Chain Link Fence Characteristics:

    The mesh is even in size and smooth in surface;

    The weaving is simple, artistic and practical;

    The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    PVC coating Chain Link Fence Colors : Yellow /Green/Blue /White /Black



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Chain Link Fence Uses:

    1) As fences for playground, gardens, super highway, railway, airport, residence, etc.

    2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.

    3) Link chain fence is also used in breeding of animals.





    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence





    Chain Link Fence Process & packing :

    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link FenceBlue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence



    Competitive Advantage:

    1. Convenience and flexiblity for installation along the landscape.
    2. The low cost is good for mass usage.
    3. It provides a 15 year guarantee.
    4. The fence is a versatile and easily erected form of fencing.
    5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
    6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.

    Blue Color 50mm*50mm 6ft*18m Galvanized/PVC Chain Link Fence

    We are China Best chain link fence manufacturer .



    Quality is our soul of company ,XK People welcome you
