|Place of Origin:||made in china|
|Brand Name:||xk highui|
|Model Number:||chain link fence in diamond hole for fence usage|
|Minimum Order Quantity:||1 piece|
|Price:||Price based on quantity|
|Packaging Details:||wven bag or film in both end , pallet is available|
|Delivery Time:||7 days after confirm order|
|Payment Terms:||L/C&TT& paypal|
|Supply Ability:||1 contaier /5 days|
|Material:||Galvanized Steel Wire, Galvanized Iron Wire||Surface:||Electro Galvanized / Hot Dipped Galvanized|
|Hole Shape:||Diaomond||Hole Opening:||25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm|
|Wire Diameter:||1.6mm-4mm(2.5mm, 3.05mm, 3.76mm, 4.88mm)||Width:||0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m|
|Length:||8m,10m,15m,20m,25m,30m,50m||Appliaction:||Fence , Farm , Zoo ,warehouse|
|Type:||Chain Link Mesh||Packing:||Wrapped With PP Bags At Both Ends(palletized Optional)|

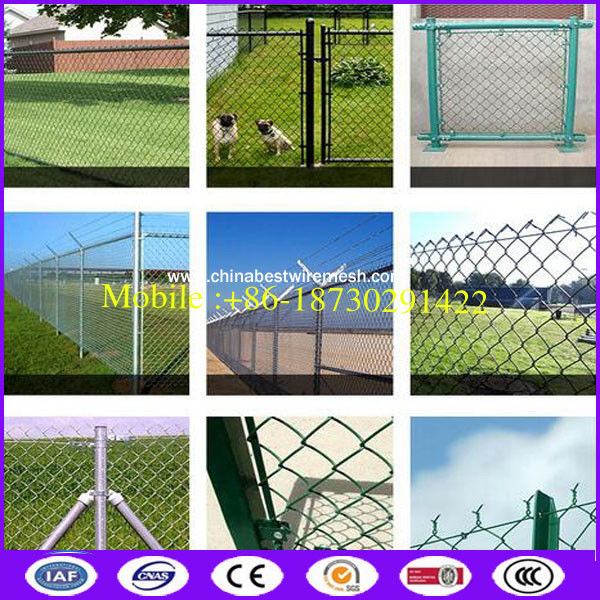

Galvanzied chain link fence PVC coat chain link fenc Stainless steel chain Link Fence
CHOOSING THE BEST TYPE :
The main considerations are the height of the fence, the thickness of the wire, and the finish of the wire.
Chain link norammly is from 3 feet the 12 feet high, the highest being generally used for surround
sports areas where it is important to prevent balls escaping. Lower chain link fences for use around homes,can be fitted with privacy slats,airport ,swiming pool ,redidents , home , hotel ,airport ,etc
Thickness of wire(1.5-5.0mm)
The thickness of the wire for chain link can be quite confusing. Manufacturers will usually refer to the
thickness of the wire being a certain 'gauge', for example 11 or 12 gauge. Oddly, the higher the number of thegauge, the thinner the wire. Thus, 11 gauge corresponds to a thickness of 0.120 inches, and a 12 gauge corresponds to a thickness of only 0.105 inches. Although gauges can vary between 6 and 14, the most common gauges for chain link fencing are 11, 11.5 and 12 gauge.
Hot dipped galvanized : (Min) 30g/m2 , (Max) 366g/ m2
Electro Galvanized : (Min) 15g/m2 , (Max) 25g/ m2
|Dimension of Galvanized Chian Link|
|Dimension of PVC Coated Chian Link Mesh|
surface treatment :
|Electro Galvanized||15g/m2||25g/ m2|
|Hot dip galvanized||30/ m2||366g/m2|
Chain Link Fence 's Edge :Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb);
Chain Link Fence Characteristics:
The mesh is even in size and smooth in surface;
The weaving is simple, artistic and practical;
The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.
Chain Link Fence Uses:
1) As fences for playground, gardens, super highway, railway, airport, residence, etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in breeding of animals.
Chain Link Fence Process & packing :
1. Convenience and flexiblity for installation along the landscape.
2. The low cost is good for mass usage.
3. It provides a 15 year guarantee.
4. The fence is a versatile and easily erected form of fencing.
5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.
