|Place of Origin:||made in china|
|Brand Name:||xk highui|
|Model Number:||chain link fence in diamond hole for fence usage|
|Minimum Order Quantity:||1 piece|
|Price:||Price based on quantity|
|Packaging Details:||wven bag or film in both end , pallet is available|
|Delivery Time:||7 days after confirm order|
|Payment Terms:||L/C&TT& paypal|
|Supply Ability:||1 contaier /5 days|
|Material:||Galvanized Steel Wire, Galvanized Iron Wire||Surface:||Electro Galvanized / Hot Dipped Galvanized|
|Hole Shape:||Diaomond||Hole Opening:||25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm|
|Wire Diameter:||1.6mm-4mm(2.5mm, 3.05mm, 3.76mm, 4.88mm)||Width:||0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m|
|Length:||8m,10m,15m,20m,25m,30m,50m||Appliaction:||Fence , Farm , Zoo ,warehouse|
|Type:||Chain Link Mesh||Packing:||Wrapped With PP Bags At Both Ends(palletized Optional)|

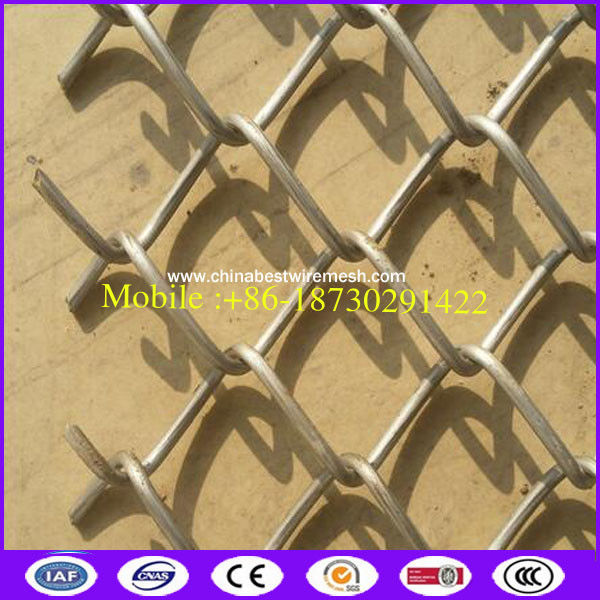

stainless steel 2 inch Diamond cyclone fence for wildlife barriers made in china
1.Item Name : chain link fence /chain-wire fence ,cyclone fence ,hurricane fence ,diamond mesh fence
2.woven way : zig-zag pattern/diamond mesh pattern - the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.
3.Size : typically produced in 50' rolls’ length(15.24m),
the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size,
4.Galvanized :The fabric is galvanized with a 1.2 oz.(366 grams) coating meets ASTM A 392-03 Class I and we also offer some sizes with a 2.0 oz.(610 grams) zinc coating meets ASTM A 392 Type I (Class II).
|Available variance||Zinc coating weight, min.||Breaking strength
|Class 1||Class 2|
A typical specification list of 9 gauge chain link fence fabric:
|Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized|
(Mesh x Gauge x Height)
|CL-9X36-G||2 x 9 x 36||KxK|
|CL-9X42-G||2 x 9 x 42||KxK|
|CL-9X48-G||2 x 9 x 48||KxK|
|CL-9X60-G||2 x 9 x 60||KxK|
|CL-9X72-G||2 x 9 x 72||KxB|
|CL-9X84-G||2 x 9 x 84||KxB|
|CL-9X96-G||2 x 9 x 96||KxB|
|CL-9X120-G||2 x 9 x 120||KxB|
|CL-9X144-G||2 x 9 x 144||KxB|
|PVC Coated Chain Link Fence - 9 Gauge|
(Mesh x Gauge x Height)
|2 x 9 x 36||KxK||53 lbs|
|2 x 9 x 42||KxK||63 lbs|
|2 x 9 x 48||KxK||70 lbs|
|2 x 9 x 60||KxK||88 lbs|
|2 x 9 x 72||KxB||105 lbs|
|2 x 9 x 84||KxB||123 lbs|
|2 x 9 x 96||KxB||140 lbs|
|2 x 9 x 120||KxB||173 lbs|
|2 x 9 x 144||KxB||208 lbs|
|1-3/4 x 9 x 120||KxB||198 lbs|
|1-3/4 x 9 x 144||KxB||238 lbs|
Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.
Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.
Chain Link Fence 's Edge :. Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb); 2. Size Column: mesh size in inches x gauge of wire x height of fence in inches;
Chain Link Fence Characteristics:
The mesh is even in size and smooth in surface;
The weaving is simple, artistic and practical;
The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.
Chain Link Fence Uses:
1) As fences for playground, gardens, super highway, railway, airport, residence, etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in breeding of animals.
1. Convenience and flexiblity for installation along the landscape.
2. The low cost is good for mass usage.
3. It provides a 15 year guarantee.
4. The fence is a versatile and easily erected form of fencing.
5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.
