    Product Details:

    Place of Origin: Hebei ,China
    Brand Name: Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh
    Certification: ce,sgs
    Model Number: Plastic Extruder Line Use Reverse Dutch Weave Wire Mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 roll
    Price: 10 usd-45usd/square meter
    Packaging Details: Waterproof paper or up to customer's requirement
    Delivery Time: stock always
    Payment Terms: TT,LC,PAYPAL ,WEST UNION ,ETC
    Supply Ability: 80000 Roll/Rolls per Year
    Contact Now
    Detailed Product Description
    NAME: Weave Wire Mesh Type And Filters Application Reverse Dutch Weave Filter Screen Belt Application: For Screen Changer
    Width: 97mm,100mm,110mm,127mm,130mm,150mm,etc Length: 10m/20m

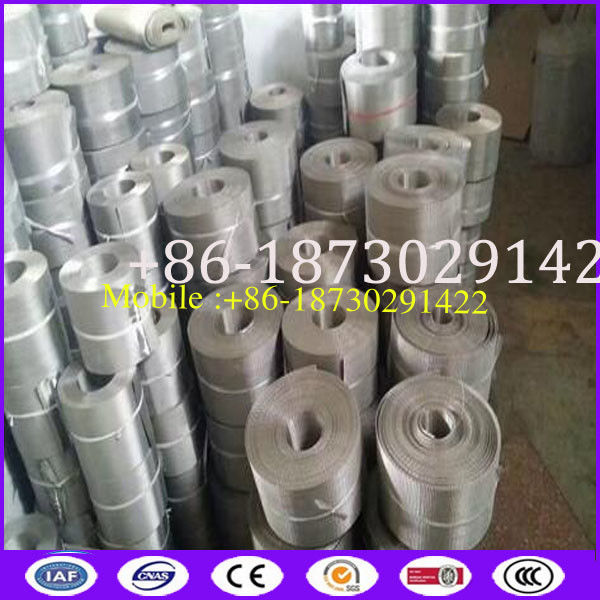

    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt
    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt

    Specifications of Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt:

    Material: Stainless Steel 302,304,316,316L
    Woven Type: Reverse Dutch Weave (RDW woven)

    Mesh Sizes: 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16               mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.



    Roll Width:100mm to 1200mm. (such as 97mm,100mm,110mm,120mm.127mm,130mm,150mm)

    Roll Length: 10m,20m,30m



    A : Do you have stock or not ?



    Yes , we have a lot of stock(  800rolls stock always )  ,fast delivery .



    B:  Do you accept small order -1 roll ?



    Yes, surely , 1 roll is no problem for us .



    C : Do you offer free sample for our testing ?



    Yes , we surely offer free sample for your quality confirmation .



    Twilled Reverse Dutch Weaves Filter Ribbon Screen Features:

    With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.



    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt



    Continuous automatic filter belt

    Mesh/inch

    Wire Dia.(mm)

    Width(mm)

    Length/Roll(m)

    72/15

    0.45/0.55

    97---400

    10/20

    120/15

    0.35/0.45

    97---400

    10/20

    132/17

    0.32/0.45

    97---400

    10/20

    150/17

    0.3/0.45

    97---400

    10/20

    152/24

    0.27/0.4

    97---400

    10/20

    170/17

    0.27/0.45

    97---400

    10/20

    180/18

    0.27/0.45

    97---400

    10/20

    200/40

    0.17/0.27

    97---400

    10/20

    260/40

    0.15/0.25

    97---400

    10/20



    Other sizes are avaliable according to clients'request.



    Edge of Twilled Reverse Dutch Weaves Filter Ribbon Screen:



    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt



    Applications  of Twilled Reverse Dutch Weaves Filter Ribbon Screen:







    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt

    High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.



    Packing of Twilled Reverse Dutch Weaves Filter Ribbon Screen:



    Waterproof paper on each roll + carton / wooden case



    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen beltWeave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt

    Weave Wire Mesh Type and Filters Application reverse dutch weave filter screen beltWeave Wire Mesh Type and Filters Application reverse dutch weave filter screen belt

    Shipping  of Twilled Reverse Dutch Weaves Filter Ribbon Screen:

     By sea or By Air - Express , No problem for us .

     Do you accept Paypal , west Union ?

      Yes It is ok for us ,No problem .
