    Product Details:

    Place of Origin: Hebei ,China
    Brand Name: Agitation Tank Vibrating Screen Mesh
    Certification: ISO9001:2000
    Model Number: crimped wire mesh

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: 15usd-100usd/piece
    Packaging Details: Option 1 : Iron pallet packing ; 2. Wooden pallet packing ; 3. At demand
    Delivery Time: 10-25 days after receiving deposit
    Payment Terms: TT ,LC ,West Union
    Supply Ability: 30 Ton/Tons per Day
    Contact Now
    Detailed Product Description



    Production show

       1. our material is the key to the best quality !





    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

         2. Our quality control

           Min tensile strength Mpa : 1000--1650Mpa

           Max tensile strength Mpa : 1200--1900Mpa

           Min.RA:38%--45%

           Aperture square weave :2*2mm--100*100mm

          Aperture tolerance :±3%

          wire spur length : > wire diameter , < half of an aperture .

          Finished wire is inspected by the third party SGS .

          Screen length and width tolerance : ±5mm

           Screen squareness tolerance is controlled within 1.5mm every 300mm length .



    Characteristic :



    1,Precision mesh opening and good sieving effect.

    2,Good abrasion resistance and a long service life.

    3,Smooth surface and stable structure.

    4,Pre-bending process and good tensile strength.



    Products





    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav



    WEAVING TYPES OF VIBRATING SCREEN



    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

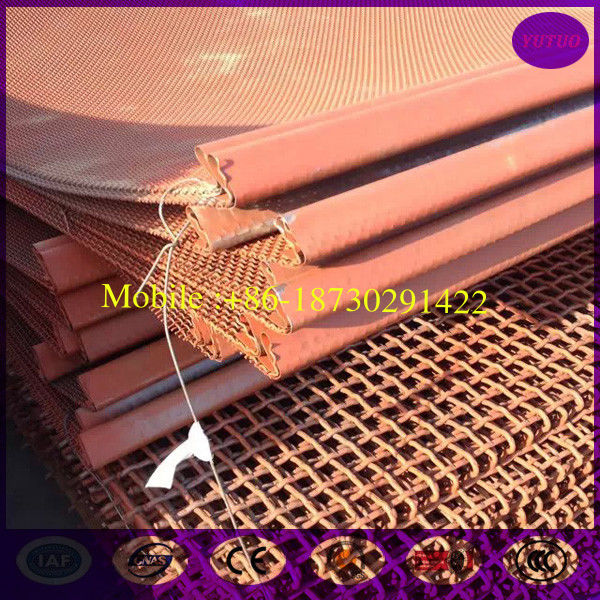

    EDGE TYPES OF VIBRATING SCREEN



    Screens for classifying, sizing, straining, sieving, are typically secured to a vibrating deck by clamping rails that apply tension across the screening surface. The tension is applied through edge treatments on the woven wire cloth screen panel commonly referred to as "hooks" , "hook strips" or "hooking strips".

    Proper screen tension is crucial for effective screening and longer screen life.

    Banded edges prevent flattening of hook edges and eliminate mesh pull-out on fine wire mesh or high tension screens.

    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav



    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav



    Products Daily maintenance:

    1. Before running

     (1) to check coarse mesh and fine mesh if there is a damage.(2) each group clamps is locking.

     2.Running

     (1)notice any abnormal noises.(2)electric current is stable. (3)whether the vibration is abnormal.

     3. After running

     (1)after used clean up the vibration every time.

     (2) inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage.

     (3)whether each part of the vibrating body caused damage due to vibration.

     (4)need to add the site to be the lubricating oil.

    Packaging & Shipping



    Packing:   1) water-proof paper+ poly film + label

                     2) water-proof paper+ poly film + label+plastic bag

                     3)  poly film + label+ pallet.

    Shipping: it's transported by container and ocean ship.



    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for gravtrommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav

    trommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for gravtrommel screen,manual stone crusher,steel sieve ,grizzly crimped wire screen mesh for grav



    Quality Requirement:



    Mesh aperture tolerance: -3%~3%

    Wire diameter:-0.03mm~3mm

    Wire spur:>wire diameter,<half of an aperture

    Diagonal deviation:(1) for the narrow and long, wide and long mesh (length > 2m), allows the diagonal error between 0 - 12mm;

                                (2) for short, wide and short mesh (length < 2m), allows the diagonal error between 0 - 9mm;

    Mesh tightness judgment: pinch wire head weft, weft wire to ensure at the edge of a slide in the second warp filaments without sliding as appropriate, if not the net surface in boundary screw tight.

    Do not allow the quality defects: the wrong size, not straight Jingwei, uneven net surface, loose net surface , too tight mesh net surface, exceed standard, jump flower short head.

     According to the working requirement of precise cutting of products.

    Check the diagonal and mesh size and then eliminate substandard products.



    Aplication :

    They have got high application in following :

    Power plants

    Chemical

    Coal mining

    Paper and pulp

    Quarrying

    Cement and stone crushing

    Iron ore and steel industry
