stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    • stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature
    • stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature
    • stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature
    • stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature
  • stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    Product Details:

    Place of Origin: China
    Brand Name: xk highui
    Certification: ISO9001:2000,CE,SGS,COC
    Model Number: continuous filter belt for scren changer in plastic extruder machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Price based on quantity
    Packaging Details: film+waterproof paper , carton or wooden case is available
    Delivery Time: ready sock in 3 days
    Payment Terms: L/C,TT
    Supply Ability: 10000rolls /month
    Contact Now
    Detailed Product Description
    Item Name: Automatic Continous Belt Screen Filter Mesh Application: Automatic Screen Changer
    Width: 97mm,127mm,130mm,133mm,150mm,etc Length: 10m/roll,20m/roll
    Mesh: 132x17,152x30,152x17,260x40,180x17,160mesh,200mesh ,etc Woven Type: RDW-REVERSE DUTCH WIRE MESH
    Stock: A Large Of Stock

    stainless steel Automatic Continous Belt Screen Filter Mesh for food packaging filteration



    famouse screen changer belt mesh

    --- the market need a lot of , we have always stock .

    ---in Plastic using , can be round ,square shape , can be used in recycling after fire.

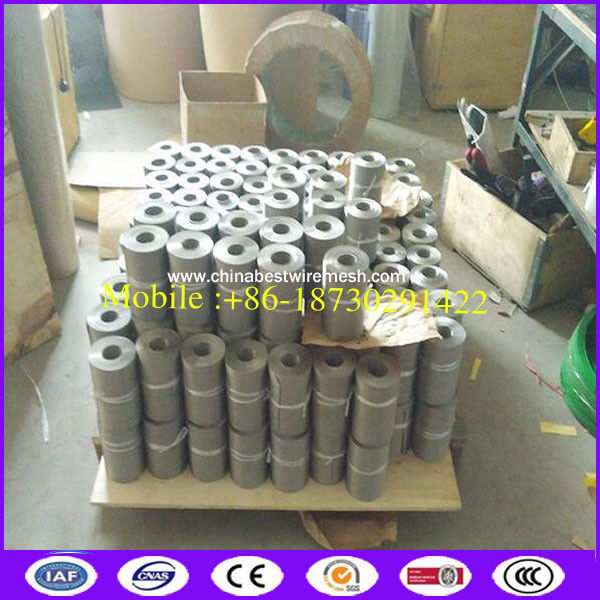

    A LARGE OF STOCK FOR 10M/ROLL ,

    IF YOU NEED 20M PER ROLL WE ALSO CAN DO

    width : 97mm,127mm,110mm,130mm,133mm,150mm....etc



    A LARGE OF STOCK FOR 10M/ROLL ,IF YOU NEED 20M PER ROLL WE ALSO CAN DO



    Application of Automatic Continous Belt Screen Filter Mesh



    ** widely used in continuous screen changers. (automatic screen changers).

    **Filter candles, vacuum filters and spring filters(as filter media in filtration process )

    **Major in Plastic Extrusion,Melt Filtration and other plastic industry Filed for PP,PS,PVC,ABS,PE,PET etc.

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    Specification of Automatic Continous Belt Screen Filter Mesh

    ** Material : stainless steel 302,304,304A,316,316L

    * *Size of width : 100mm to 1200mm. (such as 97mm,100mm,110mm,120mm.127mm,130mm,150mm)

    ** Size of Length : 10m/roll,20m/roll ( special ,available )

    **Mesh Size : 48x10 mesh, 72x15 mesh, 132x14 mesh,132x16 mesh,132x18 mesh,152x24 mesh,160x16 mesh,160x24 mesh,160x25 mesh,228x36 mesh,250x40 mesh,260x40 mesh, 325x39 mesh,400x120 mesh etc.

    ** weaving Type : Reverse Dutch woven - reverse twill dutch & reverse plain dutch ,thicker warp wires and less weft wires



    1 2 3 4 5 6 7 8 9
    HB-Code Mesh Micron Retention Micron Retention Equation Factors for Tensile Strength Porosity theor. Weight Cloth Thickness
        nominal absolute Permeability Performance Warp Weft
        μm μm Y M N N % kg/m2 mm
    RPD 15 720x150 15 16- 20 35.63 0.01726 240 400 45 0.65 0.15
    RPD 17 630x130 17 20- 24 30.95 0.02967 210 480 51 0.85 0.22
    RPD 25 600x100 25 34- 38 10.14 0.01751 205 425 56 0.80 0.23
    RPD 40 290x 75 40 53- 58 12.94 0.03460 540 700 51 1.55 0.40
    RPD 60 175x 50 60 67- 75 8.29 0.03479 570 1200 47 2.40 0.57
    TRD 75 400x120 75 75- 80 4.00 0.00520 360 230 62 0.73 0.24
    RPD 80 130x 35 80 95-105 8.25 0.01614 860 1250 49 3.10 0.77
    RPD 85 175x 37 85 100-106 3.81 0.00255 780 720 54 2.10 0.57
    RPD 90 170x 40 90 106-118 4.03 0.01569 890 770 54 2.10 0.57
    TRD 125 260x 40 125 112-125 1.12 0.16700 2220 580 54 2.25 0.62
    RPD 400 84x 14   450-530 0.33 0.01028 1630 1160 62 3.50 1.15
    TRD 400 132x 17   400-450 1.00 0.01686 4500 760 57 4.65 1.35
    RPD 500 80x 14   560-630 0.10 0.01123 1550 1160 64 3.40 1.18
    TRD 500 72x 15   500-600 0.02 0.01567 5330 810 57 6.35 1.85

    Feature of Automatic Continous Belt Screen Filter Mesh:

    **Non stop -continous

    **anti -corrosion

    ** Fine filtration -special woven type

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    Packing of Automatic Continous Belt Screen Filter Mesh:

    -- waterproof paper + Label mark

    --film+waterpoof paper + Label mark

    --carton box ,or wooden case + shipping mark

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature



    The fair we attend :

    Asia Filter -shanghai city

    China Plasitc rubber international Fair -guangzhou city

    China west Plastic rubber internation Fair chongqing city

    etc .

    stainless steel Automatic Continous Belt Screen Filter Mesh for Plastic filteration with high tensile feature

    Contact person - Alisa

    E-mail :alisawiremesh@hotmail.com

    Mob: 00861870291422 ( wechat ,whatsapp )

    website : www.wiremeshmadeinchina.com

    www.chinabestwiremesh.com
