razor barbed wire
BTO-22 - Material. HD Galvanized Zinc as below photo
Thickness: 0.50 mm +/- 0.05 mm
Wire diam: 2.50 mm +/- 0.05 mm
Bars length: 22 mm +/- 1 mm
Bars spacing: 34 mm +/- 1mm
450 mm diameter and 35 rings
Straight length: 46.5 mt per roll after pull open
Standard covered length: 10 mt
Inner packing: in plastic film
Outer packing: in weaving brag strip.
1. Introduction of razor wire
Stainless steel 304 316 core wire and stainless steel sheet in 304 or 316
( also can be electric galvanized or hot dipped galvanized & pvc coating )
Core wire diameter: usually 2.5mm, can be customized
Razor thickness: 0.3-0.6mm
Barb length: 11-67mm
Barb width: 14-23mm
Barb spacing: 25--102mm
Common Types: BTO-10, BTO-20, BTO-22, BTO-28, CBT-65 etc.
|
Razor Barbed Tape Wire Specification
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
|
450mm
|
56
|
8-9M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
10-11M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|

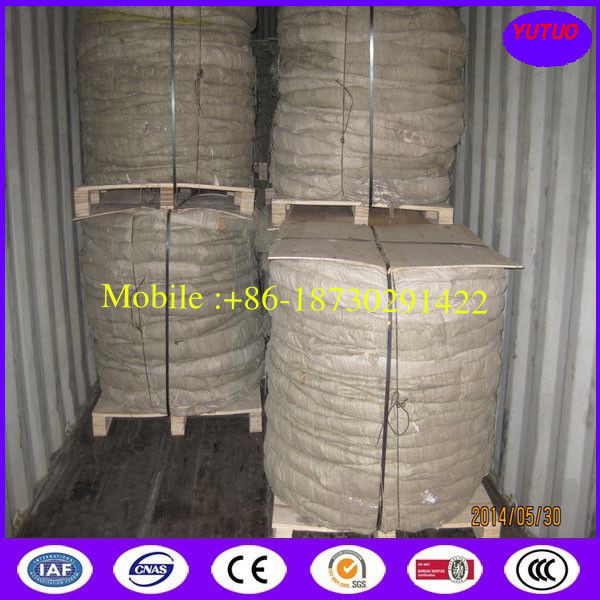

Packing of razor barbed wire :
Application of Razor Wire
razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security.
