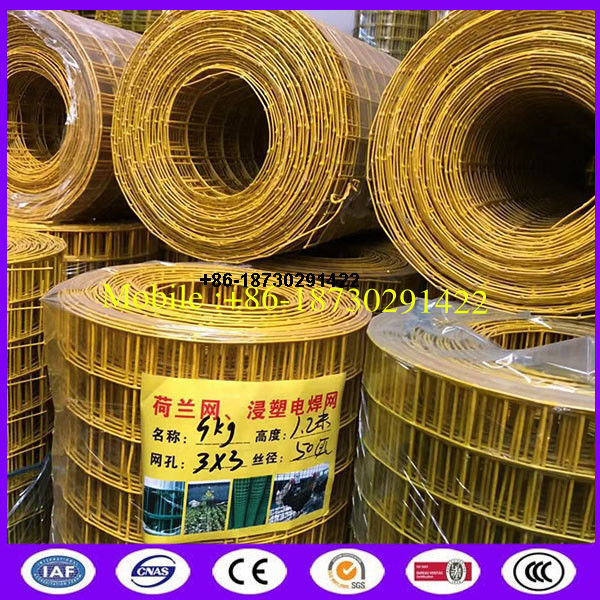

Yellow color PVC coating Holland wire mesh fence 30mmx30 mm Hole opening in 1.2 meter height
1.INTRODUCTION :
Material : Q195Low carbon steel wire
Wire Diameter: 2.0mm,2.2 mm ,2.3mm ,2.5mm, 2.8mm , 3mm ,3.2mm,-3.5mm(after coating )
Wire surface treatment : Galvanized core wire + PVC(plastic powder coating )
Hole Aperture :
Squre hole : 1/2inch (1.3cm)x1/2 inch (1.5cm) , 1.5cmx1.5cm ,2.5cm x2.5cm , 3cmx3cm , 5cmx5cm ,6 cmx6cm ,10cmx10cm ,etc
Rectangle hole :3cmx6cm, 5cmx10cm , 7.5cmx10cm ,etc
Hole shape : with wave or without wave
Width of roll : 60cm , 90cm , 100cm , 150cm , 180cm , 200cm
.Height : 10m,18m,25m, 30m(or customerized )
Distance Between The Two Fence Posts: 3m
Distance Between The Two Inclined Posts: 30m
Plastic Color: Dark Green/Grass Green/White /Yellow /Red
SO FAR WE ARE THE ONLY MANUFACTURE - OWN STOCK OF YELLOW COLOR ( SHAPE -WITHOUT WAVE )
Whole Year -we have stock below size & we accept customerized size .
| Holland Wire Fence Mesh/WELDED WIRE MESH (Yellow color) PVC coating |
| Hole Aperture |
Height |
Length |
Weight |
Stock |
| cm |
mm |
inch |
meter |
meter |
KG/roll |
Y/N |
| 3x3 |
30x30 |
1.2x1.2 |
1.2 |
18 |
9 |
YES |
| 3x3 |
30x30 |
1.2x1.2 |
1.5 |
18 |
12.5 |
YES |
| 3x6 |
30x60 |
1.2x2.4 |
1.2 |
30 |
15 |
YES |
| 3x6 |
30x60 |
1.2x2.4 |
1.5 |
30 |
18 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.2 |
30 |
12 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.2 |
30 |
16 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.2 |
30 |
27 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.2 |
30 |
20 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.5 |
30 |
15/15.5 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.5 |
30 |
17 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.5 |
30 |
20 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.5 |
30 |
24.5 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.5 |
30 |
33 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.8 |
30 |
19 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.8 |
30 |
22 |
YES |
| 6x6 |
60x60 |
2.4x2.4 |
1.8 |
30 |
28.5 |
YES |
Note :Same hole ,same height x length , but different diameter ,then different weight
3x3 cm show :
6X6cm Show :
2. Prepare installation :
When we install it as fence , we will choose the post -peach type and round type post , but the most suitable type is swallow tail post :
Post Color : Green ,Yellow , Red ... etc
001 First step : prepare associate parts : clips , anti -rain cap & pliers :
002 Second step : Fixed two types of post in different of ground condition
Embedded post -
(dig hole , put post and fill full of soil , if want more strong , then we can for long-term use, it will be better if pour with concrete or lime. normally it is 30cm deepth , but if above 1.8m - need to bear more pressure , we suggest 50cm embedded deepth ,)
Post with base plate -
Inclined Post -( every 30meter )
One or double
003 Third step : FixHolland /welded Mesh
3. Application :
used widely in industry, agriculture, building, transportation, mine, field, lawn, cultivation etc professions'guard and decoration
4.Our Yellow color holland wire mesh show :
5.we also do other color of holland wire mesh :
GRASS GRREN , DARK GREEN ( LARGE STOCK ) :
DARK COLOR :
RED COLOR :
BLUE COLOR :
WELCOME YOUR VALUED INQUIRY :
Mobile /whatsapp/wechat :008618730291422
E-mail : alisawiremesh@hotmail.com
Person : Alisa Zhou
We Have larges stock for green and yellow color in 6x6cm in 1m,1.2m,1.5m,1.8m,2m
And also Your customerized specification is our pleasure also .
