RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire

RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire

    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
  • RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire

    Product Details:

    Place of Origin: China
    Brand Name: Razor wire
    Certification: ISO9000:2000
    Model Number: Razor wire

    Payment & Shipping Terms:

    Minimum Order Quantity: 1tons
    Price: 700-1000usd/Ton
    Packaging Details: Waterproof paper or up to customer's requirement
    Delivery Time: within two weeks
    Payment Terms: TT ,LC ,West Union
    Supply Ability: 50 Tons /2 Days
    Contact Now
    Detailed Product Description
    Material: Hot Dipped Galvanized Iron /steel Wire With Steel Sheet Core Wire Thickness: 2mm-2.5mm
    Blade Thickness: 0.35mm-0.5mm Type: BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60
    Coil Diameter: 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm Weight: 3 Kg - 15 Kg /coil
    Surface Treatment: Glavanized , PVC Coating ,Epoxy Machine: HIgh Speed Punching Machine



    Flat Warp Razor Barbed Wire





    Flat warp razor barbed wire is a new type of razor barbed wire. Metal Tec press the single loop razor barbed wire into flat, or press two loops into flat then expand them across. We usually use it together with beenline razor barbed wire to build a defencing wall, or use it alone as a fence.

    It is normally used in community, storehouse, mine, prison, key sites of National Defence, etc..

    RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire

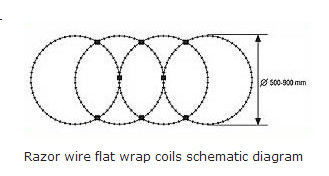

    The picture of Flat warp razor barbed wire:

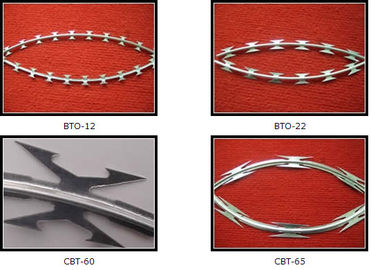

    Blade style

    Reference Number BTO-12 BTO-15 BTO-22 BTO-25 BTO-30 CBT-60 CBT-65
    Include Razor type RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
    Model Thickness Wire Dia Length Width spacing
    BTO-10 0.5mm 2.5mm 12mm 13mm 26mm
    BTO-12 0.5mm 2.5mm 12mm 15mm 26mm
    BTO-18 0.5mm 2.5mm 18mm 15mm 33mm
    BTO-22 0.5mm 2.5mm 22mm 15mm 34mm
    BTO-28 0.5mm 2.5mm 28mm 15mm 34mm
    BTO-30 0.5mm 2.5mm 30mm 18mm 34mm
    CBT-60 0.6mm 2.5mm 60mm 32mm 96mm
    CBT-65 0.6mm 2.5mm 65mm 21mm 100mm

    The technical data of Flat warp razor bared wire:

    Flat warp razor barbed wire

    width loops/roll length/roll Blade type
    450mm 126 16M BTO-10,12,18,22,28,30
    600mm 95 16M BTO-10,12,18,22,28,30
    900mm 63 16M BTO-10,12,18,22,28,30
    1100mm 51 16M BTO-10,12,18,22,28,30

    Flat razor barbed wire specifications:

    The Outside Diameter: 450mm / 600mm / 900mm Flat razor wire fence is also made of razor barbed wire, but the difference from welded razor wire fence is Flat razor wire fence connected razor wire by clips but the welded razor barbed through welding.

    RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire



    Flat Wrap coils can be used in the following forms:

    Installed against the existing smooth wire mesh fence;

    Fitted to the welded mesh fence;

    Fitted by overlapping the fence mesh;

    Installed to the brick wall directly.

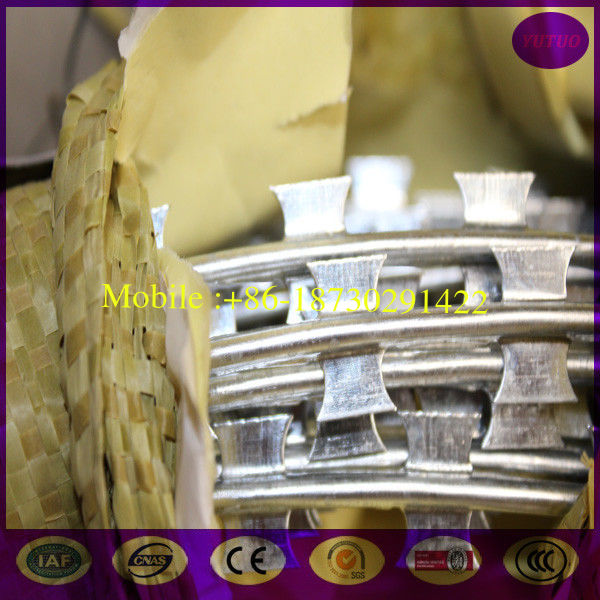

    Flat warp razor barbed wire Packing:

    RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire

    RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire



    Razor barbed wire Workshop:



    RAZOR WIRE -600MM safety high zinc double BTO 1O Falt concertina barber razor wire
