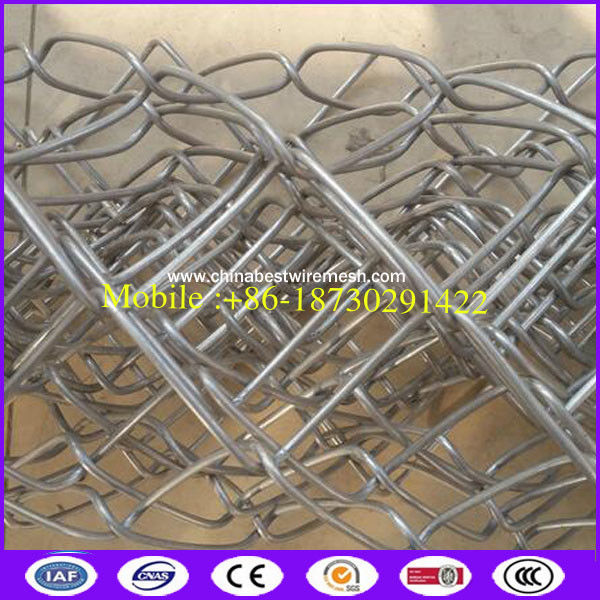

ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures

ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures

    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
  • ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures

    Product Details:

    Place of Origin: Hebei ,China
    Brand Name: CHAIN LINK FENCE
    Certification: ISO9000:2000
    Model Number: Chain Link fence

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 rolls
    Price: $20usd/roll
    Packaging Details: Wrapped with PP bags at both ends(palletized optional)
    Delivery Time: 20 days
    Payment Terms: TT ,LC ,West Union
    Supply Ability: 10000 Rolls Per Month
    Contact Now
    Detailed Product Description
    Material: Galvanized Steel Wire, Galvanized Iron Wire Surface: Electro Galvanized / Hot Dipped Galvanized
    Hole Shape: Diaomond Hole Opening: 25mmx25mm,40mmx40mm,50mmx50mm,60mmx60mm,80mx80mm
    Wire Diameter: 1.6mm-4mm(2.5mm, 3.05mm, 3.76mm, 4.88mm) Width: 0.5m,0.9m,1m,1.2m,1.5m,1.6m,1.8m,2m,2.5m ,3m
    Length: 8m,10m,15m,20m,25m,30m,50m Appliaction: Fence , Farm , Zoo ,warehouse
    Type: Chain Link Mesh Packing: Wrapped With PP Bags At Both Ends(palletized Optional)

    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    Description :



    Chain Link Fence MATERIAL Q195 LOW CARBORN STEEL
    Surface Electro galvanized,hot dipped galvanized,pvc coated
    Wire diameter 3mm,4mm,5mm
    Opening 30mm*30mm,40mm*40mm,50mm*50mm,60mm*60mm
    Height 1.7m-2.5m
    Standard roll 50m/roll
    Selvage Twisted edge,knuckle edge
    Round post size 25mm*1.2mm,32mm*1.5mm,48mm*2.0mm,60mm*2.5mm,89mm*3.0mm
    Surface treatment Electro galvanized,hot dipped galvanized,PVC coated,galvanized +PVC coated
    Finish of fittings Hot dipped galvanized,PVC coated



    1.Item Name : chain link fence /chain-wire fence ,cyclone fence ,hurricane fence ,diamond mesh fence

    2.woven way : zig-zag pattern/diamond mesh pattern - the wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other.

    3.Size : Beside above chart common size we would like to introduce -

                typically produced in 50' rolls’ length(15.24m),

                the most popular type is 6, 9, 11 gauge wire with 2x2 inches(50x50mm) mesh size,



    4.Galvanized :



        Hot dipped galvanized : (Min) 30g/m2 , (Max) 366g/ m2

        Electro Galvanized : (Min) 15g/m2 , (Max) 25g/ m2



    Beside Electro glavanzied & common hot dipped galvanized we also can do

    Nominal coated

    wire diameter

    Available variance Zinc coating weight, min. Breaking strength
    minimum
    Class 1 Class 2
    ga inch mm inch mm oz/ft2 g/m2 oz/ft2 g/m2 lbf Newtons
    6 0.192 4.88 +/- 0.005 +/-0.13 1.20 366 2.00 610 2,170 9,650
    9 0.148 3.76 +/- 0.005 +/-0.13 1.20 366 2.00 610 1,290 5,740
    11 0.120 3.05 +/- 0.005 +/-0.13 1.20 366 x x 380

    1,690



    A typical specification list of 9 gauge chain link fence fabric:



    Chain Link Fence Fabric - 9 Gauge Residential and Commercial Galvanized
    Fabric
    Galvanized
    9 gauge
    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
    Code Size
    (Mesh x Gauge x Height)
    Ends
    CL-9X36-G 2 x 9 x 36 KxK
    CL-9X42-G 2 x 9 x 42 KxK
    CL-9X48-G 2 x 9 x 48 KxK
    CL-9X60-G 2 x 9 x 60 KxK
    CL-9X72-G 2 x 9 x 72 KxB
    CL-9X84-G 2 x 9 x 84 KxB
    CL-9X96-G 2 x 9 x 96 KxB
    CL-9X120-G 2 x 9 x 120 KxB
    CL-9X144-G 2 x 9 x 144 KxB
    PVC Coated Chain Link Fence - 9 Gauge

    PVC Coated
    9 gauge

    *Colors depicted not exact



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures





































    Size
    (Mesh x Gauge x Height)
    Ends Weight
    Per 50'
    2 x 9 x 36 KxK 53 lbs
    2 x 9 x 42 KxK 63 lbs
    2 x 9 x 48 KxK 70 lbs
    2 x 9 x 60 KxK 88 lbs
    2 x 9 x 72 KxB 105 lbs
    2 x 9 x 84 KxB 123 lbs
    2 x 9 x 96 KxB 140 lbs
    2 x 9 x 120 KxB 173 lbs
    2 x 9 x 144 KxB 208 lbs
    1-3/4 x 9 x 120 KxB 198 lbs
    1-3/4 x 9 x 144 KxB 238 lbs
    1. Although galvanized silver chain link fences are very popular, many customers have chosen color chain link fence systems to accentuate siding, roofing, and trim colors on houses and businesses. There are two types of vinyl coating(PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option.



      Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric.

    2.

      Chain Link Fence 's Edge :

      . Ends: KxK(Knuckle x Knuckle), KxB(Knuckle x Barb); 2. Size Column: mesh size in inches x gauge of wire x height of fence in inches;

    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures

    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures







    Chain Link Fence Characteristics:

    The mesh is even in size and smooth in surface;

    The weaving is simple, artistic and practical;

    The wire is thicker with high quality, corrosion-resisting, long life uses and strong practicability.



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures

    Chain Link Fence Uses:

    1) As fences for playground, gardens, super highway, railway, airport, residence, etc.

    2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.

    3) Link chain fence is also used in breeding of animals.

    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures



    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures





    Competitive Advantage:

    1. Convenience and flexiblity for installation along the landscape.
    2. The low cost is good for mass usage.
    3. It provides a 15 year guarantee.
    4. The fence is a versatile and easily erected form of fencing.
    5.The products with galvanized and PVC coated treatment have a good looking and performance of rust resistance.
    6.A further advantage is transparent performance.As the open weave, chain link fences do not obscure sunlight so you can enjoy the bright view. One also can make a chain link fence semi-opaque by inserting slats into the mesh.

    ASTM A392 standard hot galvanized Chain link fencing 80X80mm with CE certificate for dumpster enclosures
